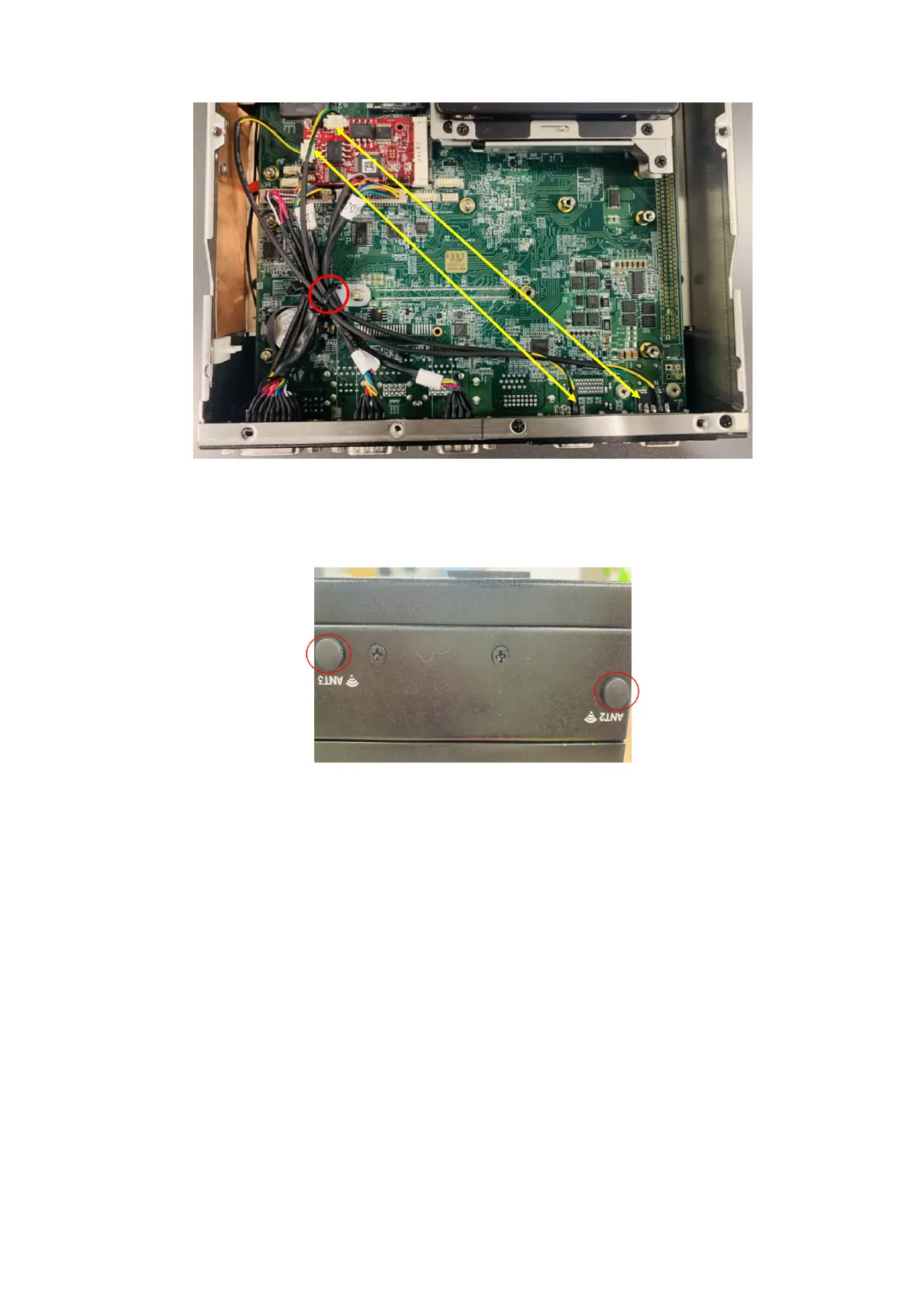

Figure 94. Cables from ports to Canbus mPCIe module with cable tie
13. Use the screws to reattach the bottom panel. See the screw locations in step 1.
14. Insert the rubber caps into the antenna holes, as shown in the following figure.
Figure 95. Antenna hole caps
Installation procedure for 2x Canbus uFM module
