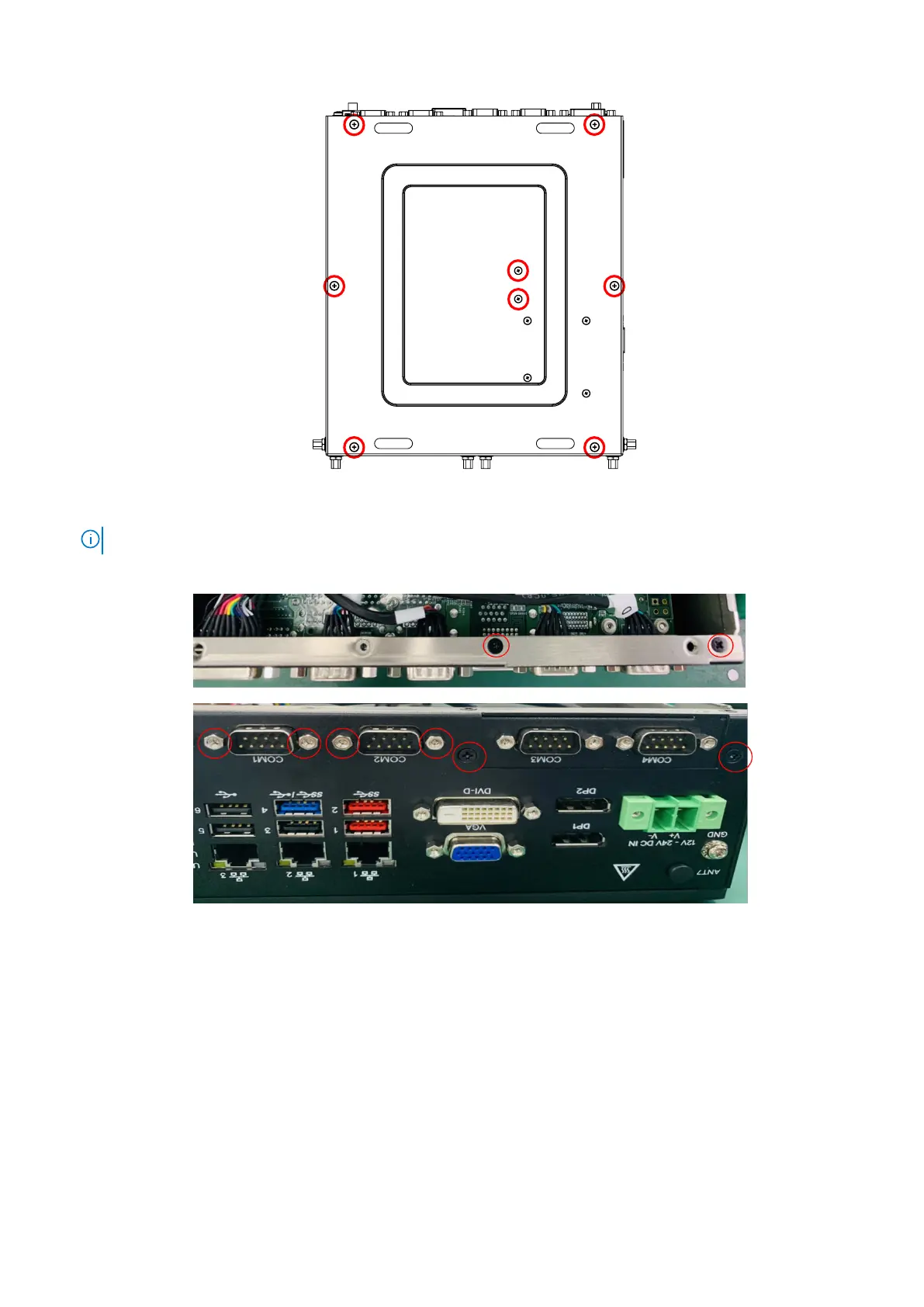

Figure 96. Bottom panel screw locations
NOTE: If 4G or 5G is installed, you must also remove the remaining four screws.
2. Remove the screws of the front I/O panel, as shown in the following figure.
Figure 97. I/O panel screw locations
3. Disconnect the 4-port COM cable from the motherboard header and from the front I/O panel, and cut the cable tie, as
shown in the following figure.
Installation procedure for 8x DI/O uFM module
55
