Dell Inspiron 5406 2-in-1 User Manual

Steps

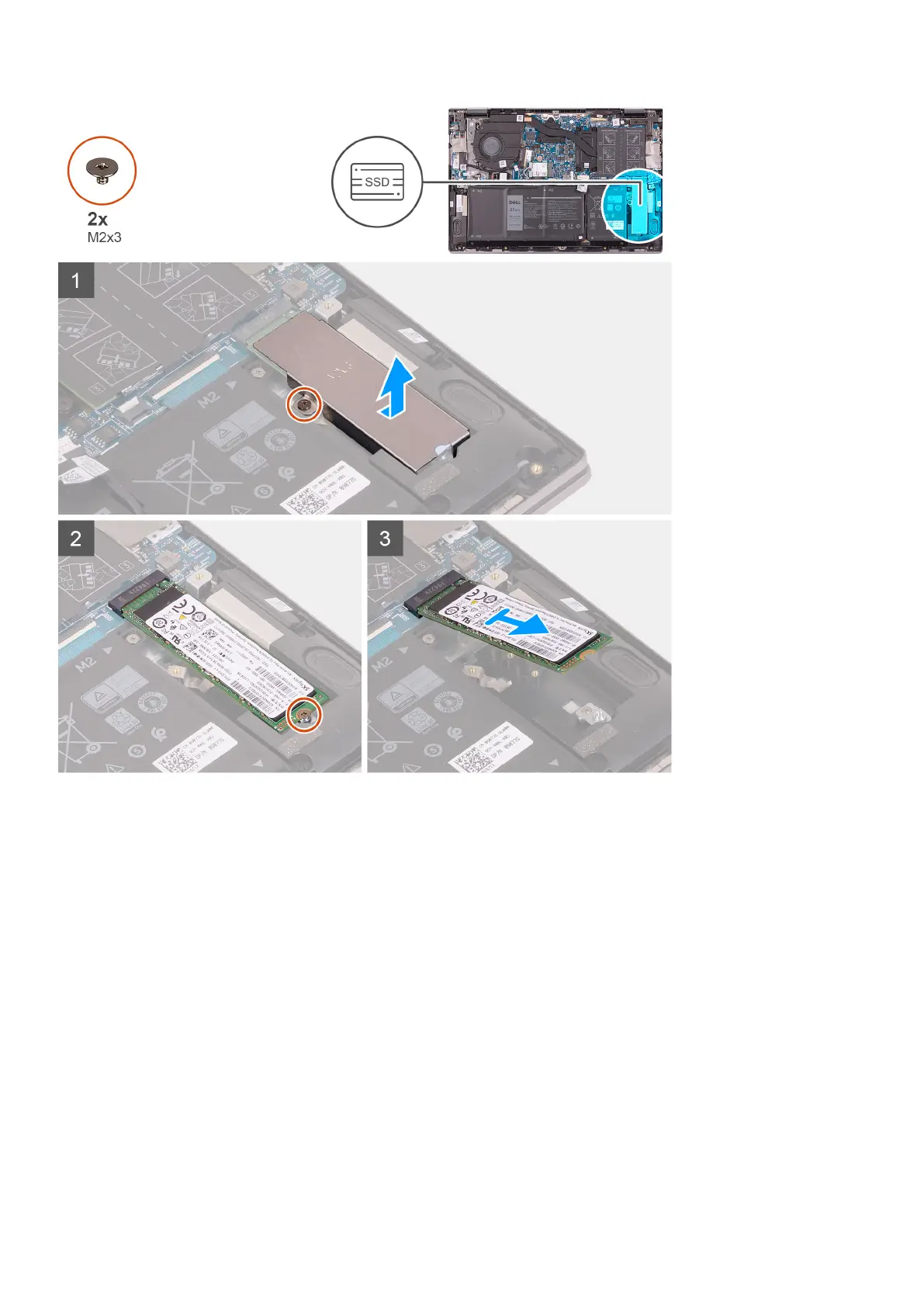

1. Remove the screw (M2x3) that secures the solid-state drive thermal bracket to the palm-rest and keyboard assembly.
2. Lift the solid-state drive thermal bracket off the palm-rest and keyboard assembly.
3. Remove the screw (M2x3) that secures the solid-state drive to the solid-state drive bracket.
4. Slide and remove the solid-state drive from the solid-state drive slot.
Installing the M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
This computer supports two solid-state drive form factors.
● M.2 2230
● M.2 2280
If you are replacing the M.2 2280 solid-state drive with an M.2 2330 solid-state drive, the following images indicate where to
install the solid-state drive bracket based on form factor.
34
Removing and installing components

Dell Inspiron 5406 2-in-1 Specifications

General

Graphics	Intel Iris Xe Graphics
Weight	3.42 lbs (1.55 kg)
Processor	11th Generation Intel Core i5-1135G7
Display	14-inch FHD (1920 x 1080) Truelife Touch Narrow Border WVA Display
RAM	8GB DDR4
Storage	512GB
Operating System	Windows 10 Home
Battery	40 WHr
Wireless	Bluetooth 5.1
Ports	1 x HDMI 1.4
