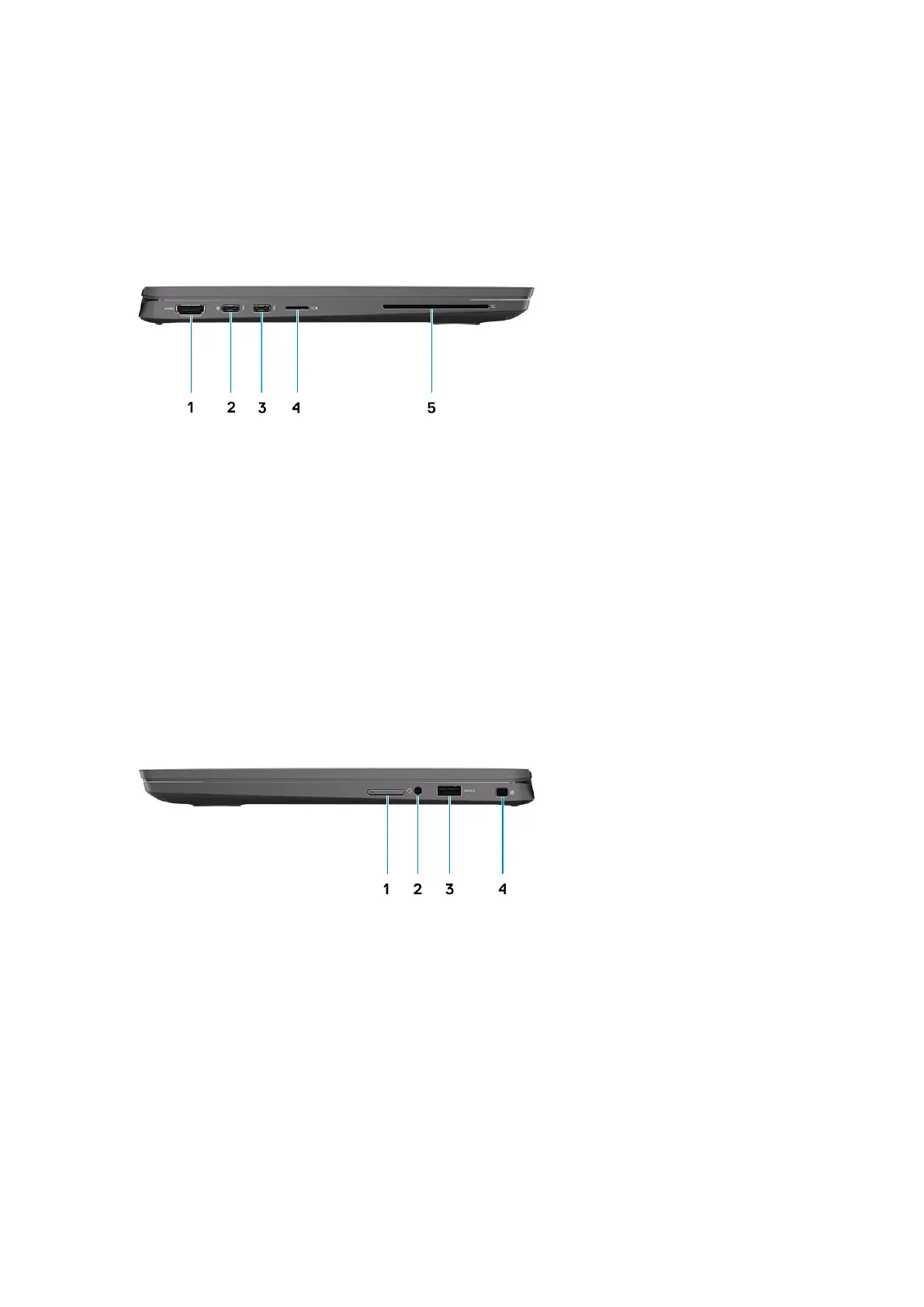

Left view
1. HDMI 2.0 port
2. USB 3.2 Gen 2 Type-C port with DisplayPort (alt mode), Thunderbolt 3.0 with Power Delivery(PD)
3. USB 3.2 Gen 2 Type-C port with DisplayPort (alt mode) and Thunderbolt 3.0 with PD
4. micro-SD card reader slot
5. Smart card reader slot (optional)
Right view
1. SIM card slot (optional with WWAN configuration only)
2. Universal Audio Jack
3. USB 3.2 Gen 1 Type-A port with PowerShare
4. Wedge shaped lock slot
10
Chassis overview
