g SIM card tray
h Micro SD
10 Follow the procedure in After working inside your computer.
Coin cell battery

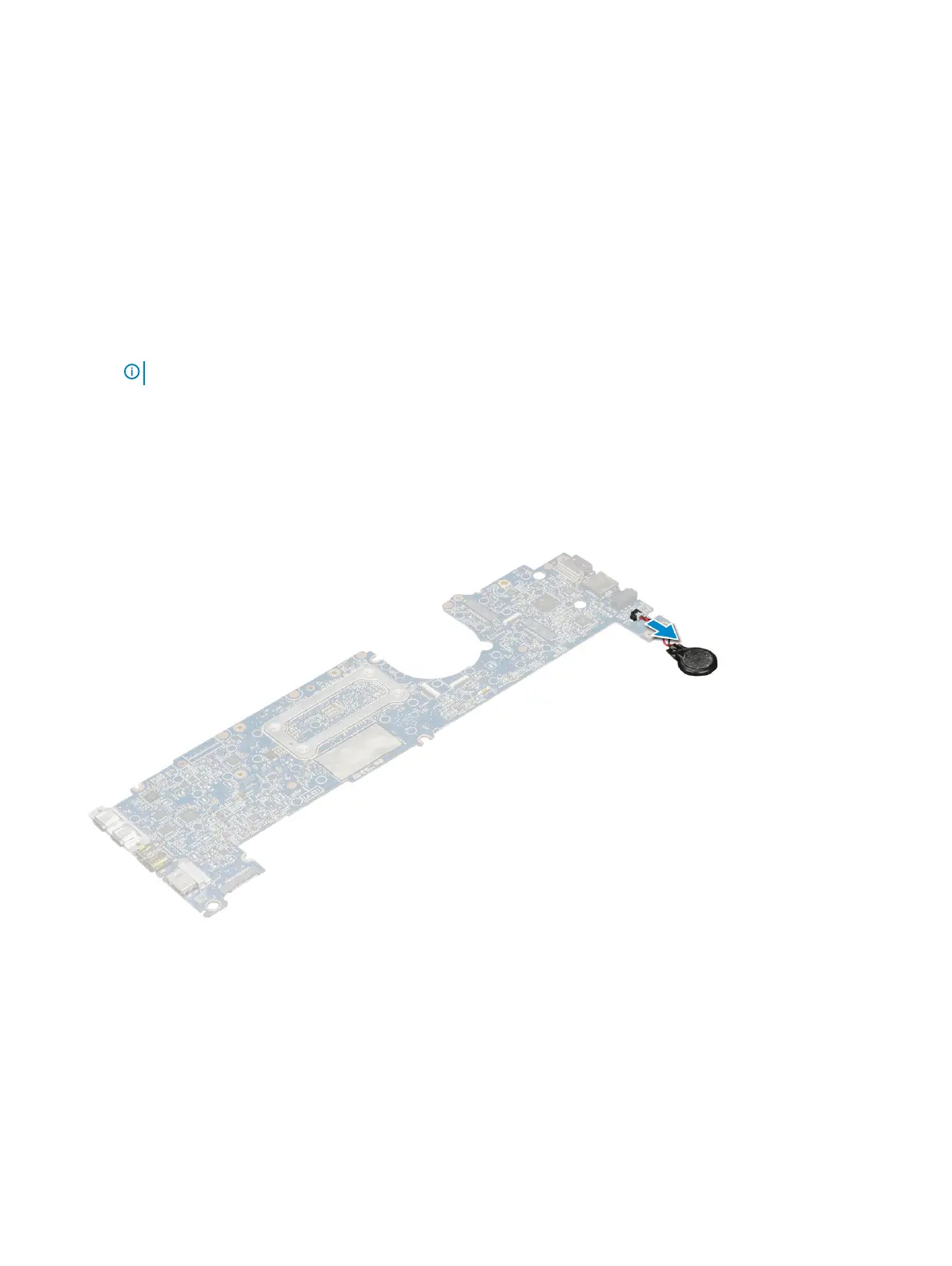

Removing the real time clock (RTC)
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Mircro SD card
b SIM card
NOTE: To remove both cards if equipped and no need to remove the blank ller.
c base cover
d battery
e SSD card
f WLAN card
g WWAN card
h heat sink assembly
i system board
3 Disconnect the RTC cable to release it from the system board.
Installing real time clock (RTC)
1 Connect the coin cell battery cable to the system board.
2 Install:
a system board
b heat sink module
c WWAN card
d WLAN card
32
