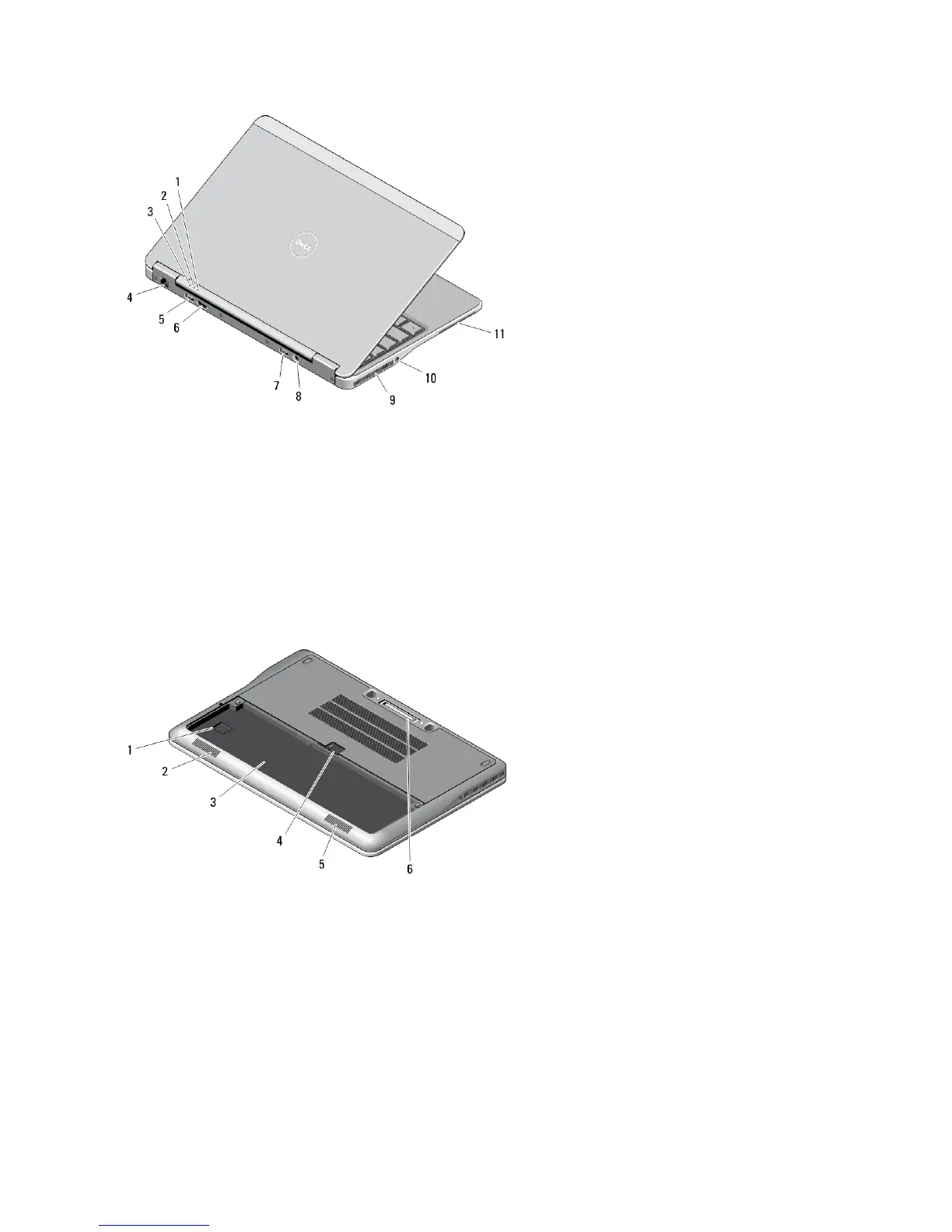

Figure 2. Back View
1. power status light
2. hard-drive activity light
3. battery status light
4. network connector
5. USB 3.0 connector
6. HDMI connector
7. USB 3.0 connector with PowerShare
8. power connector
9. cooling vents
10. wireless switch
11. smart card slot
Base View
Figure 3. Base View (without battery)
1. USIM slot
2. speaker
3. battery bay
4. battery latch
5. speaker
6. docking connector
