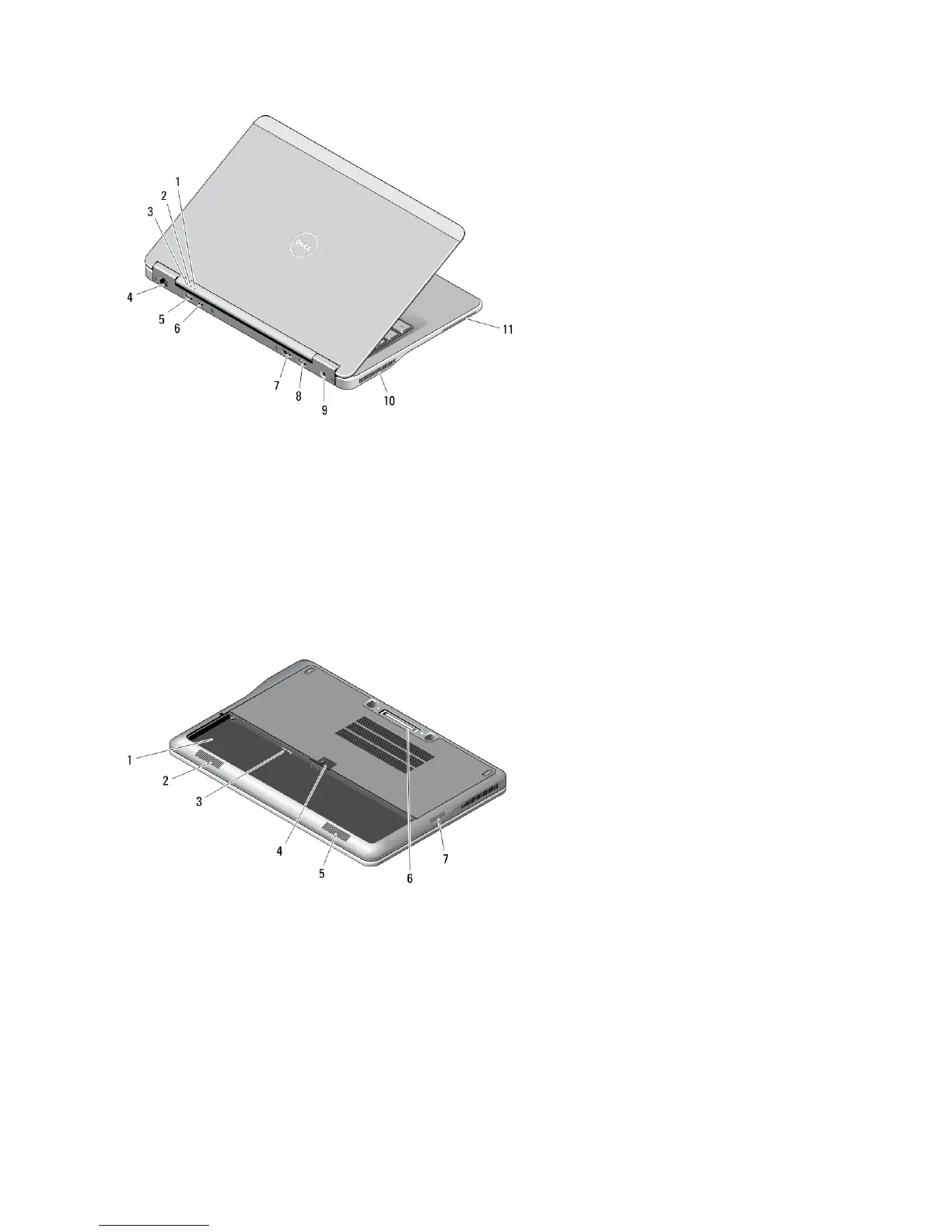

Figure 5. Back View
1. power status light
2. hard-drive activity light
3. battery status light
4. network connector
5. USB 3.0 connector
6. mini DisplayPort connector
7. HDMI connector
8. USB 3.0 connector with PowerShare
9. power connector
10. cooling vents
11. smart card slot
Base View
Figure 6. Base View (without battery)
1. battery bay
2. speaker
3. USIM slot
4. battery latch
5. speaker
6. docking connector
7. SD card reader
