7. Remove the memory modules.
About this task

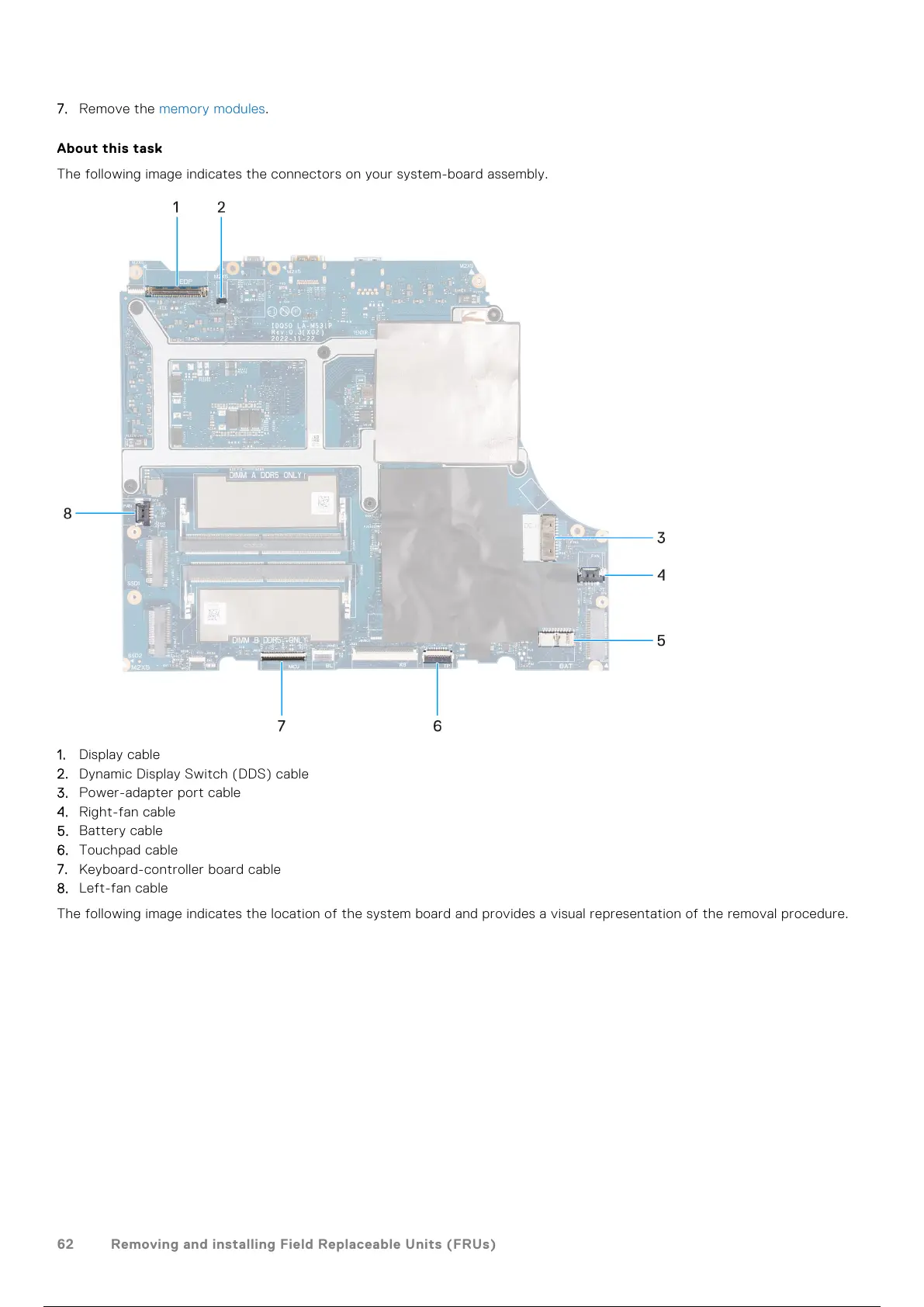

The following image indicates the connectors on your system-board assembly.
1. Display cable
2. Dynamic Display Switch (DDS) cable
3. Power-adapter port cable
4. Right-fan cable
5. Battery cable
6. Touchpad cable
7. Keyboard-controller board cable
8. Left-fan cable
The following image indicates the location of the system board and provides a visual representation of the removal procedure.
62
Removing and installing Field Replaceable Units (FRUs)
