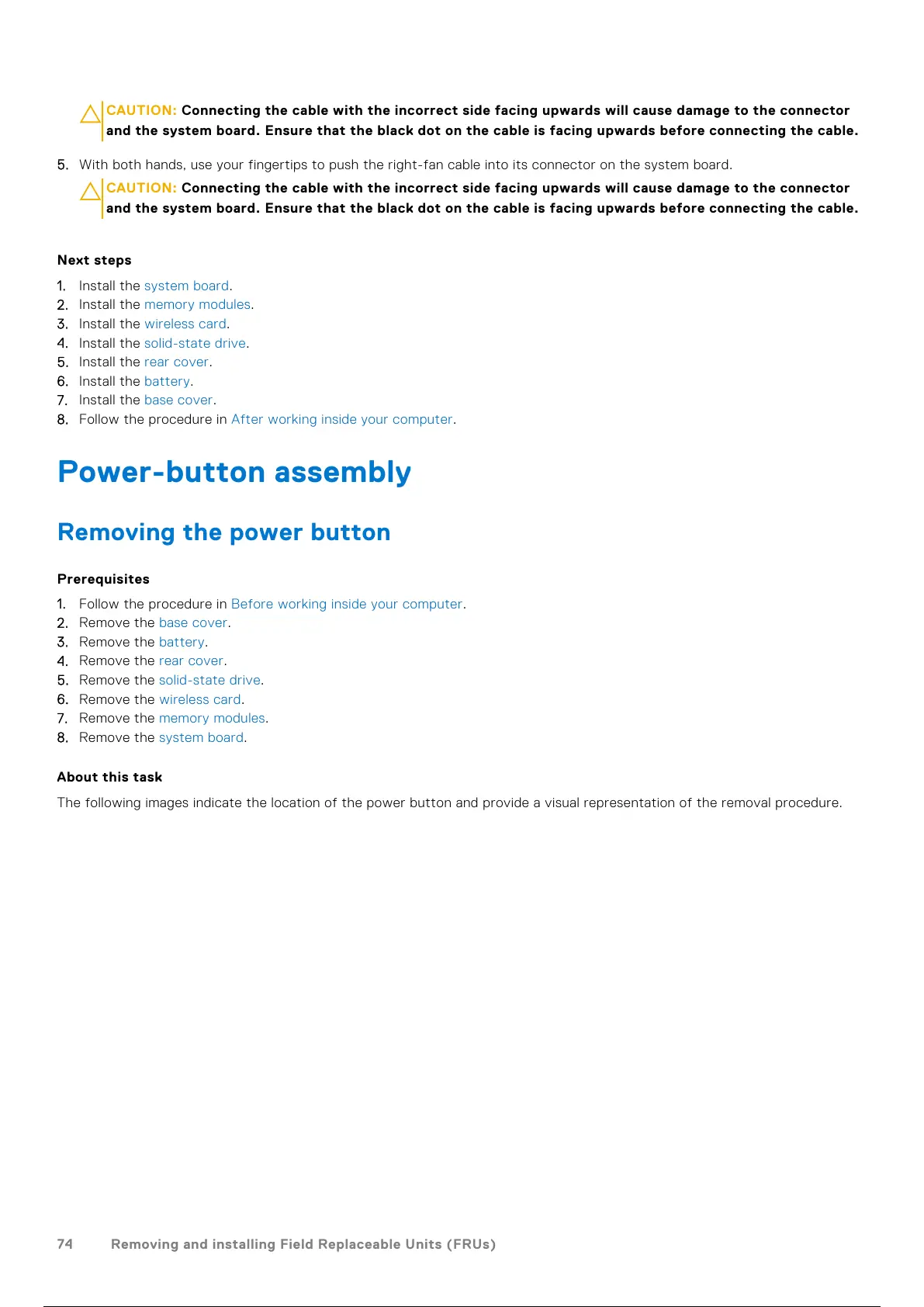

CAUTION: Connecting the cable with the incorrect side facing upwards will cause damage to the connector
and the system board. Ensure that the black dot on the cable is facing upwards before connecting the cable.
5. With both hands, use your fingertips to push the right-fan cable into its connector on the system board.
CAUTION: Connecting the cable with the incorrect side facing upwards will cause damage to the connector
and the system board. Ensure that the black dot on the cable is facing upwards before connecting the cable.
Next steps
1. Install the system board.
2. Install the memory modules.
3. Install the wireless card.
4. Install the solid-state drive.
5. Install the rear cover.
6. Install the battery.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
Power-button assembly
Removing the power button
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive.
6. Remove the wireless card.
7. Remove the memory modules.
8. Remove the system board.
About this task
The following images indicate the location of the power button and provide a visual representation of the removal procedure.
