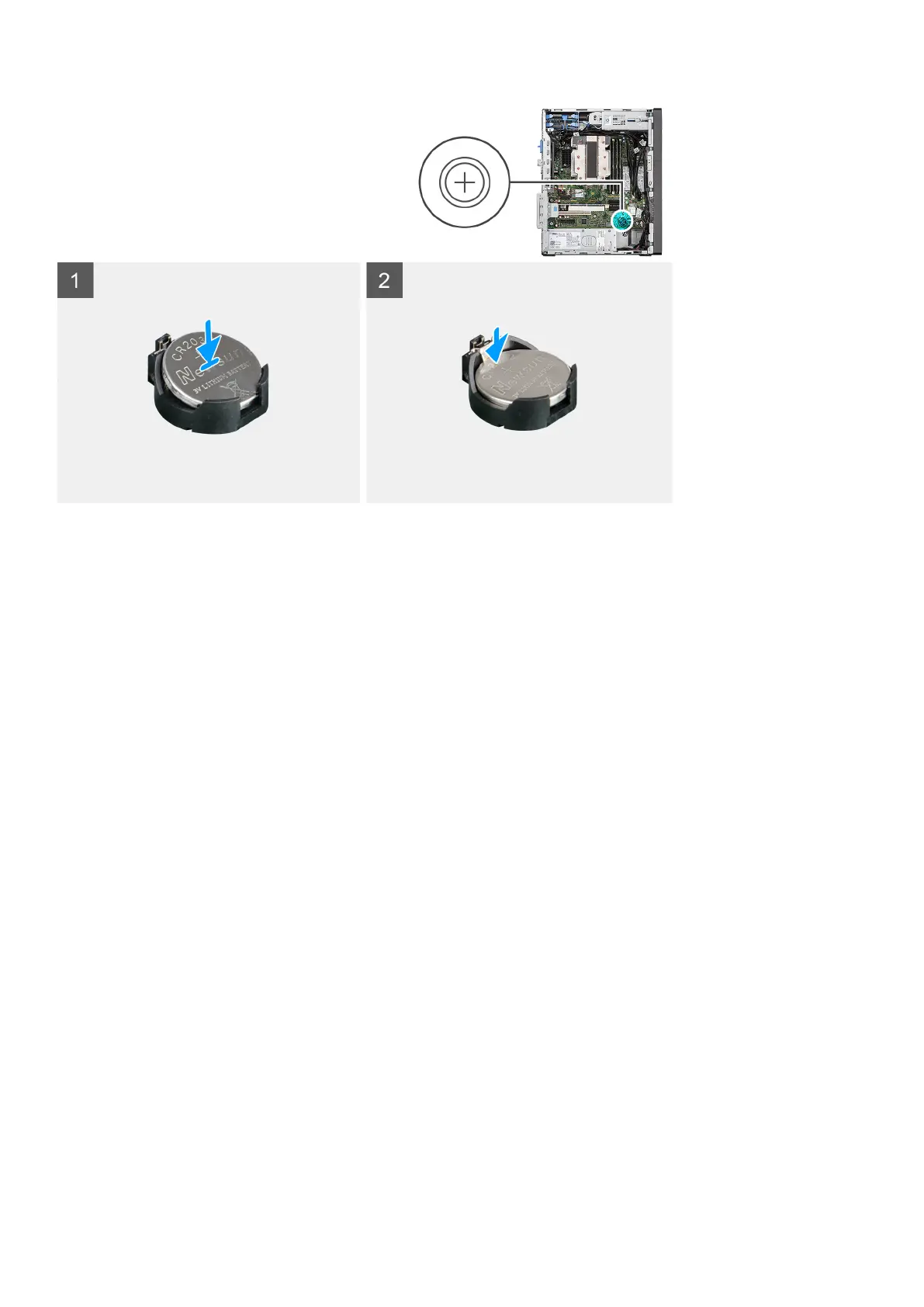

Steps
1. Insert the coin-cell battery with the "+" sign facing up and slide it under the securing tabs at the positive side of the
connector.
2. Press the battery into the connector until it locks into place.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the memory module and provide a visual representation of the removal procedure.
Removing and installing components
35
