About this task

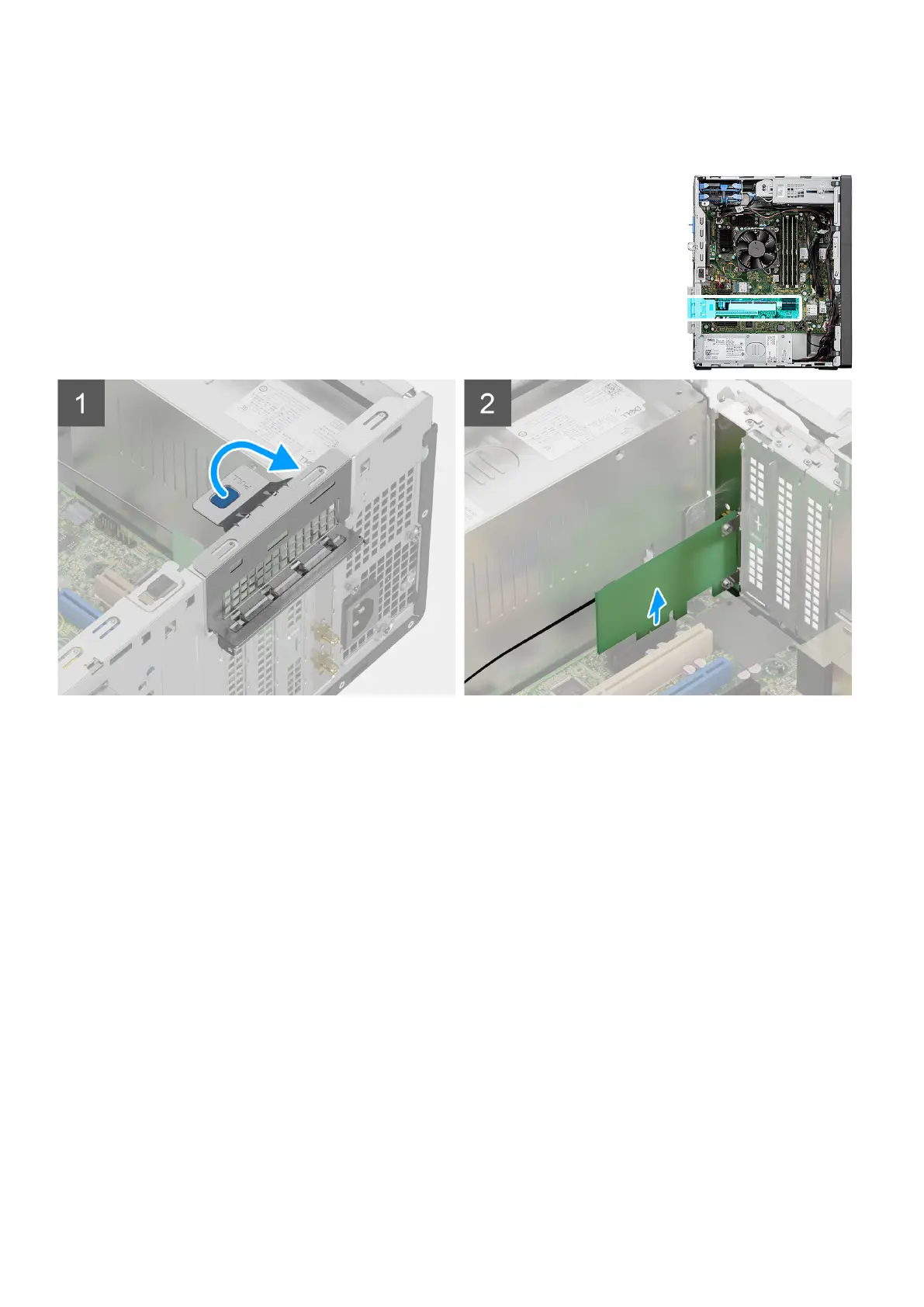

The following images indicate the location of the optional SMA module and provide a visual representation of the removal
procedure.
Steps
1. Lift the pull tab to open the PCIe door.
2. Hold and remove the SMA module from its connector on the system board.
Installing optional SMA module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the optional SMA module and provide a visual representation of the installation
procedure.
