Dell OptiPlex 7000 Tower - Page 45

Steps

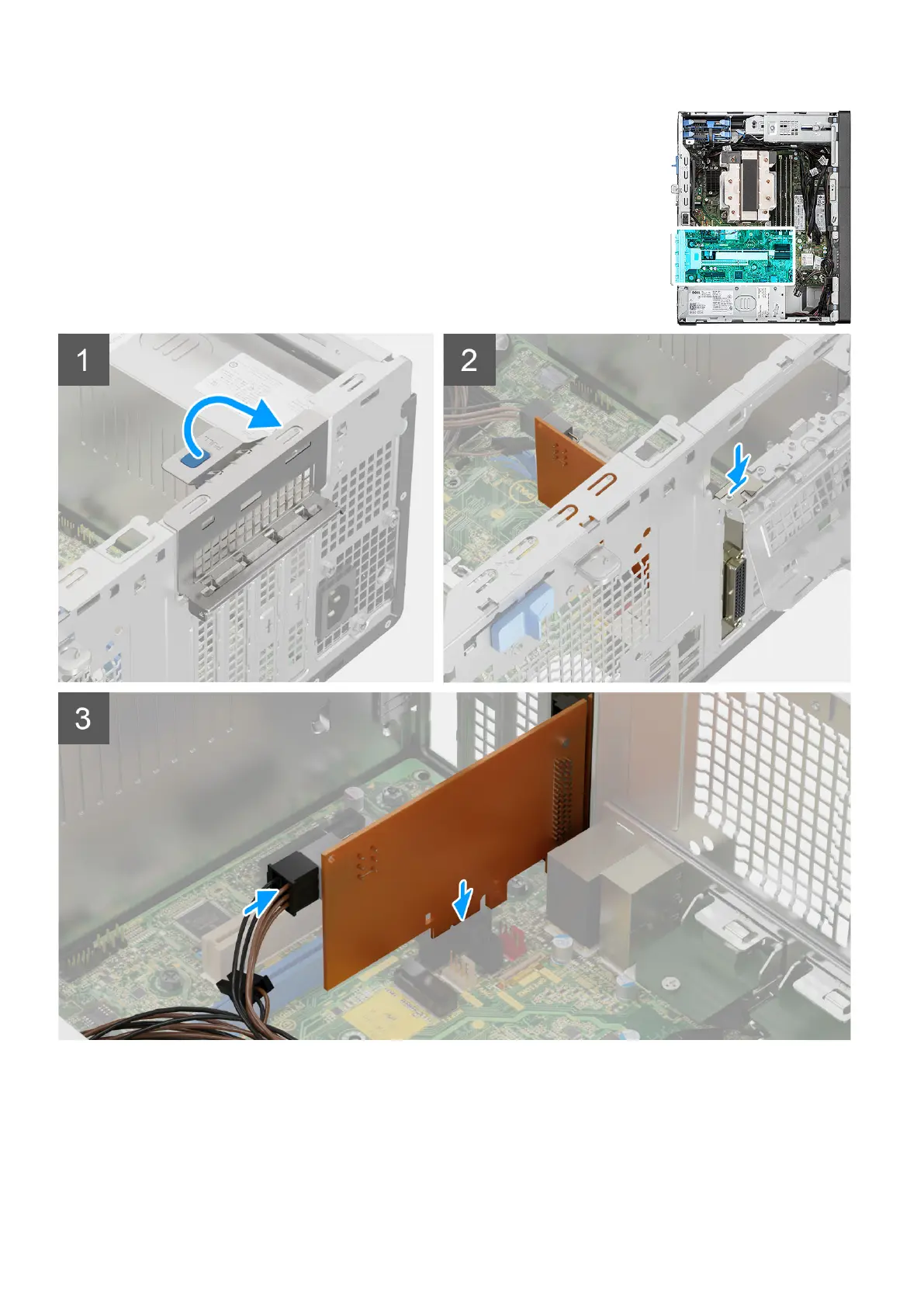

1. Lift the pull tab to open the PCIe door.
2. Connect the 6-pin power cable to the connector on the powered add-in-card.
3. Insert the optional powered add-in-card into its slot on the system board.
Removing and installing components
45
