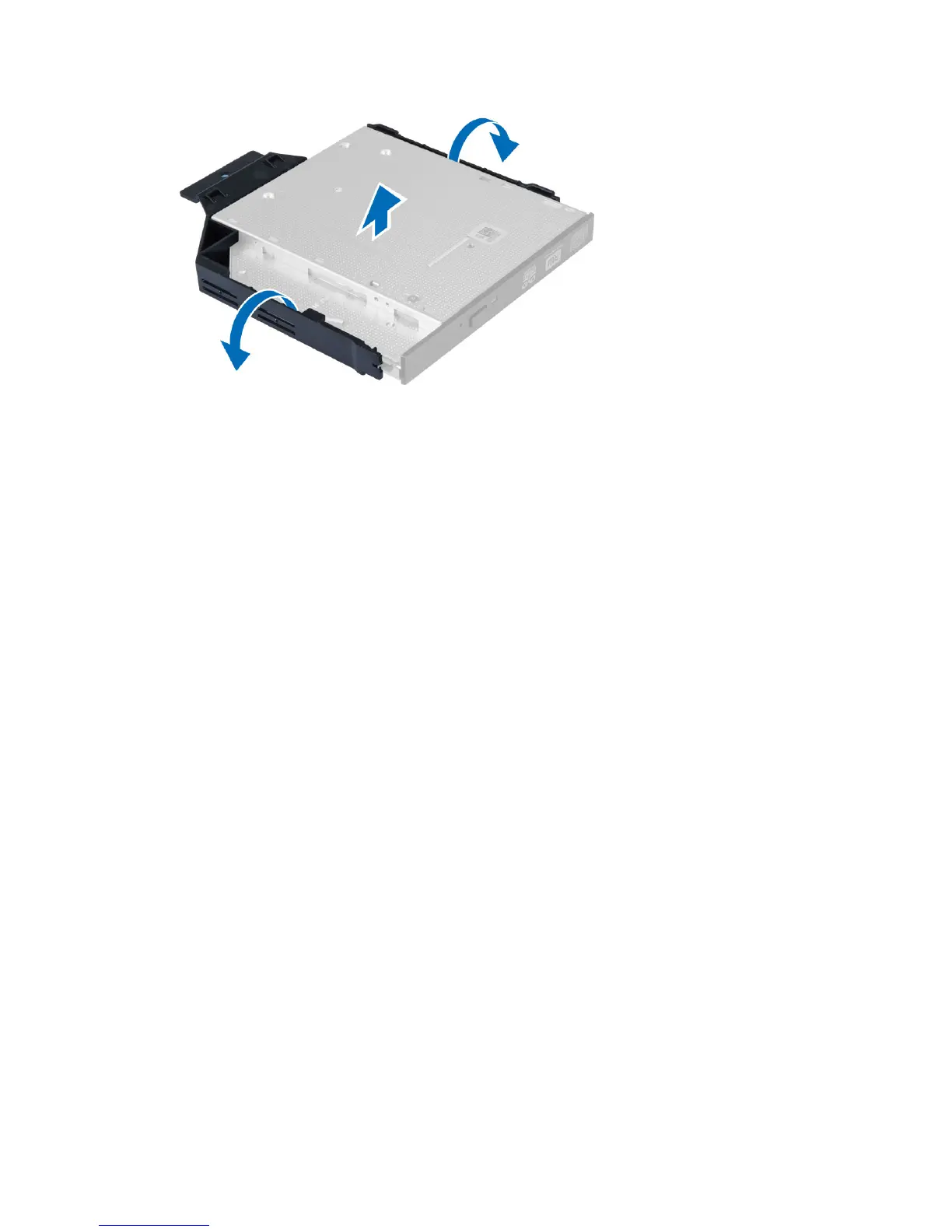

6. Repeat steps 3 to 5 to remove the second optical drive (if available).
Installing the Optical Drive
1. Insert the optical drive into the bracket.
2. Slide the optical drive to insert it into the drive cage.
3. Connect the data and power cables to the optical drive.
4. Install the cover.
5. Follow the procedures in After Working Inside Your Computer.
Removing the Drive Cage
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the:
a. cover
b. front bezel
c. optical drive
3. Disconnect the data and the power cables from the back of the hard drive.
15
