7 Speakers 8 Power button/Power-status light
9 4 Mic Array

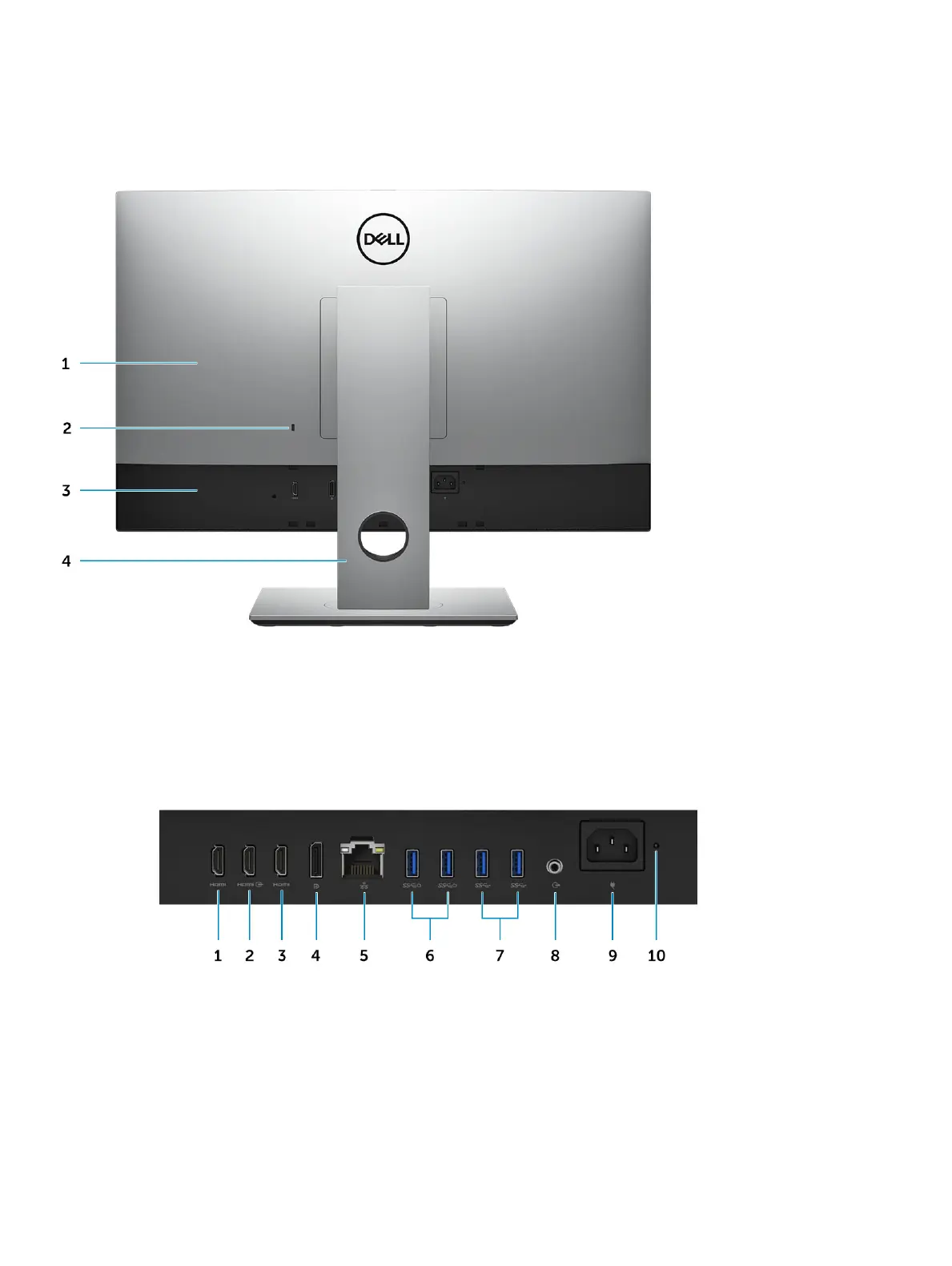

Back chassis view
1 Back cover 2 Security lock slot
3 Base cover 4 Stand
Base cover
1
HDMI-out port (with discrete graphics card) 2 HDMI-in port (optional)
3 HDMI-out port (with integrated graphics card) 4 DisplayPort
5 Network port 6 USB 3.1 Gen 1 ports with Power on/ Wake-up support
7 USB 3.1 Gen 1 ports 8 Audio out port
9 Power connector port 10 Power supply diagnostic light
10 Chassis
