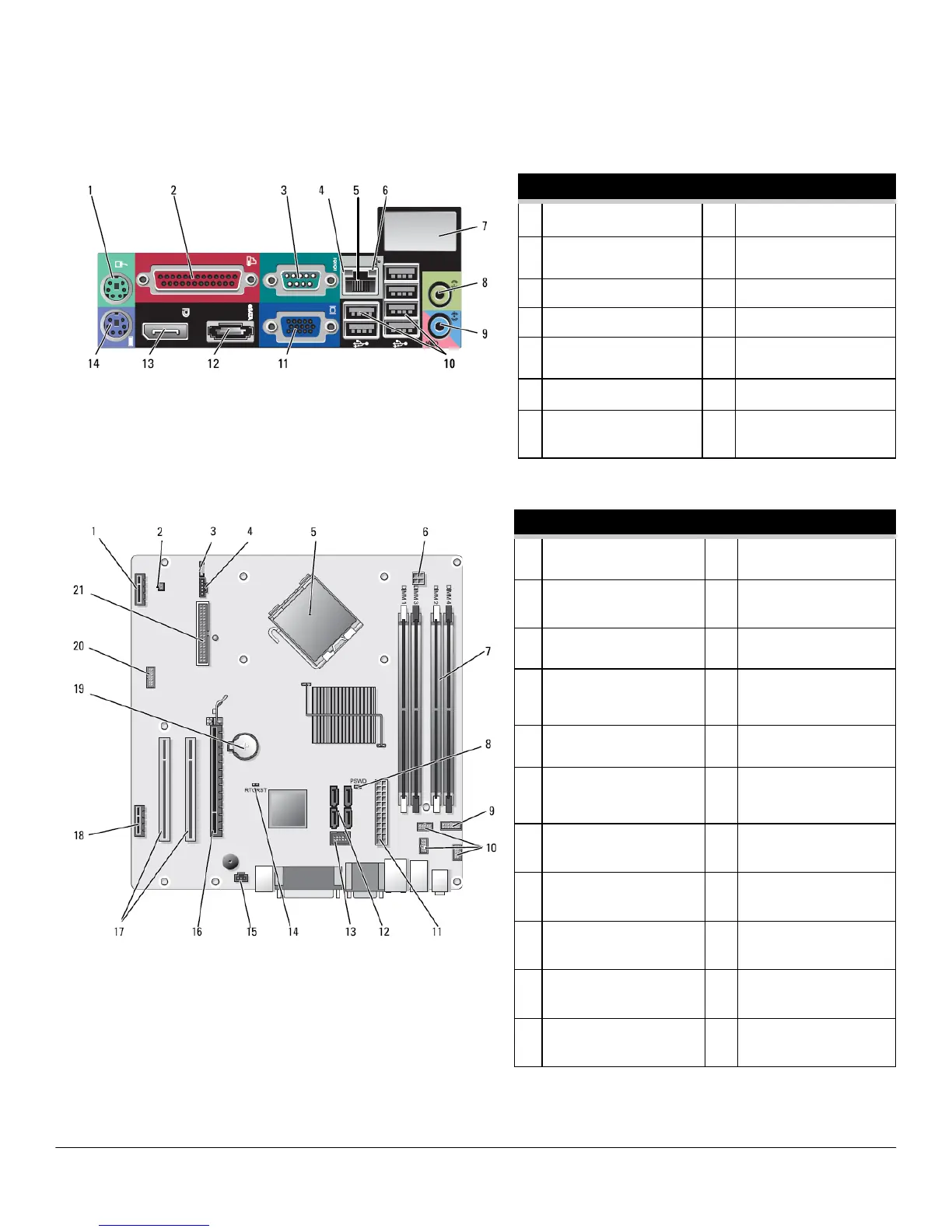

BACK PANEL CONNECTORS
1 PS/2 Mouse Connector 8 Line-out Connector
2 Parallel Connector 9
Line-in/Microphone
Connctor
3 Serial Connector 10 USB 2.0 Connectors (6)
4 Link Integrity Light 11 VGA Connector
5
Network Adapter
Connector
12 eSATA Connector
6 Network Activity Light 13 DisplayPort Connector
7
Wireless Network
Adapter (optional)
14
PS/2 Keyboard
Connector
MIN I T OWE R C OM P U TE R ( M T) VI EW (CO NT. )
SYSTEM BOARD
1
Wireless Card
Connector
12
SATA Drive
Connectors (4)
2
Thermal Sensor
Connector
13
Internal USB Flex Bay
Connector
3
Internal Speaker
Connector (INT SPKR1)
14
BIOS/RTC Reset
Jumper Pins
4 Fan (FAN_CPU) 15
Intrusion Switch
Connector
(INTRUDER)
5
Processor
Connector (CPU)
16
PCI Express x16
Connector (SLOT1)
6
Processor Power
Connector
(12VPOWER)
17
PCI Connector
(SLOT2, SLOT3)
7
Memory Module
Connectors (4)
18
PCIe x1 Connector
(SLOT4)
8
Password Reset Pins
(PSWD)
19 RTC Battery
9
System Status LEDs
Panel Connector
20 Serial Connector
10
Front Panel
Connectors (3)
21
Floppy Disk Connector
(DSKT2)
11
Power Connector
(POWER)
