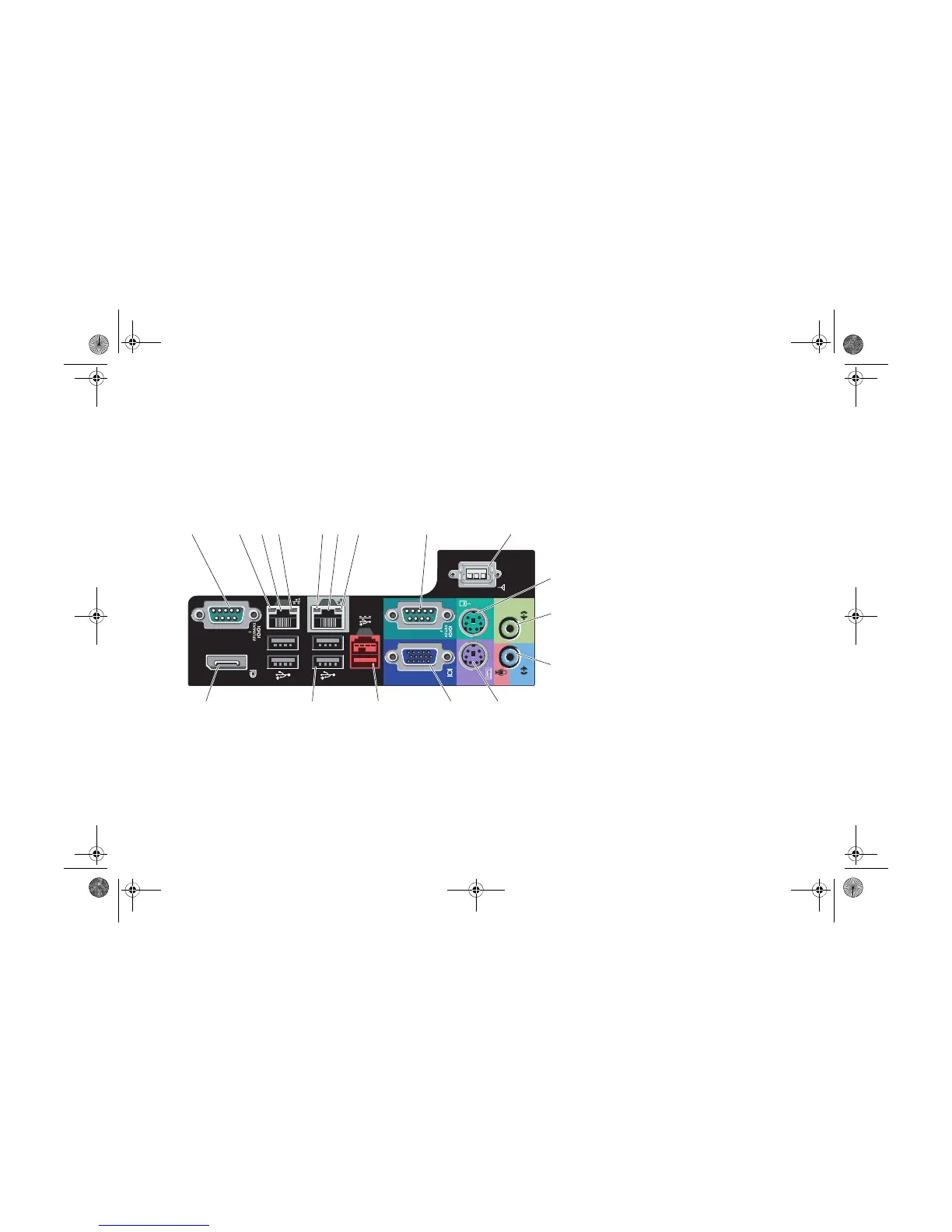

Desktop and Small Form Factor — Back Panel
1 serial connector 1
2 link integrity light 2
3 network adapter connector 2
4 network activity light 2
5 link integrity light 1
6 network adapter connector 1
7 network activity light 1
8 serial connector 2
9 Wi-Fi connector
10 PS/2 mouse connector
11 line-out connector
12 line-in/microphone connector
13 PS/2 keyboard connector
14 VGA connector
15 24V powered USB 2.0 connector
16 USB 2.0 connectors (4)
