3. Remove the microSD card.
4. Remove the base cover.
5. Remove the Wireless card.
6. Remove the WWAN card.
7. Remove the display assembly.
8. Remove the display bezel.
9. Remove the display panel.
About this task

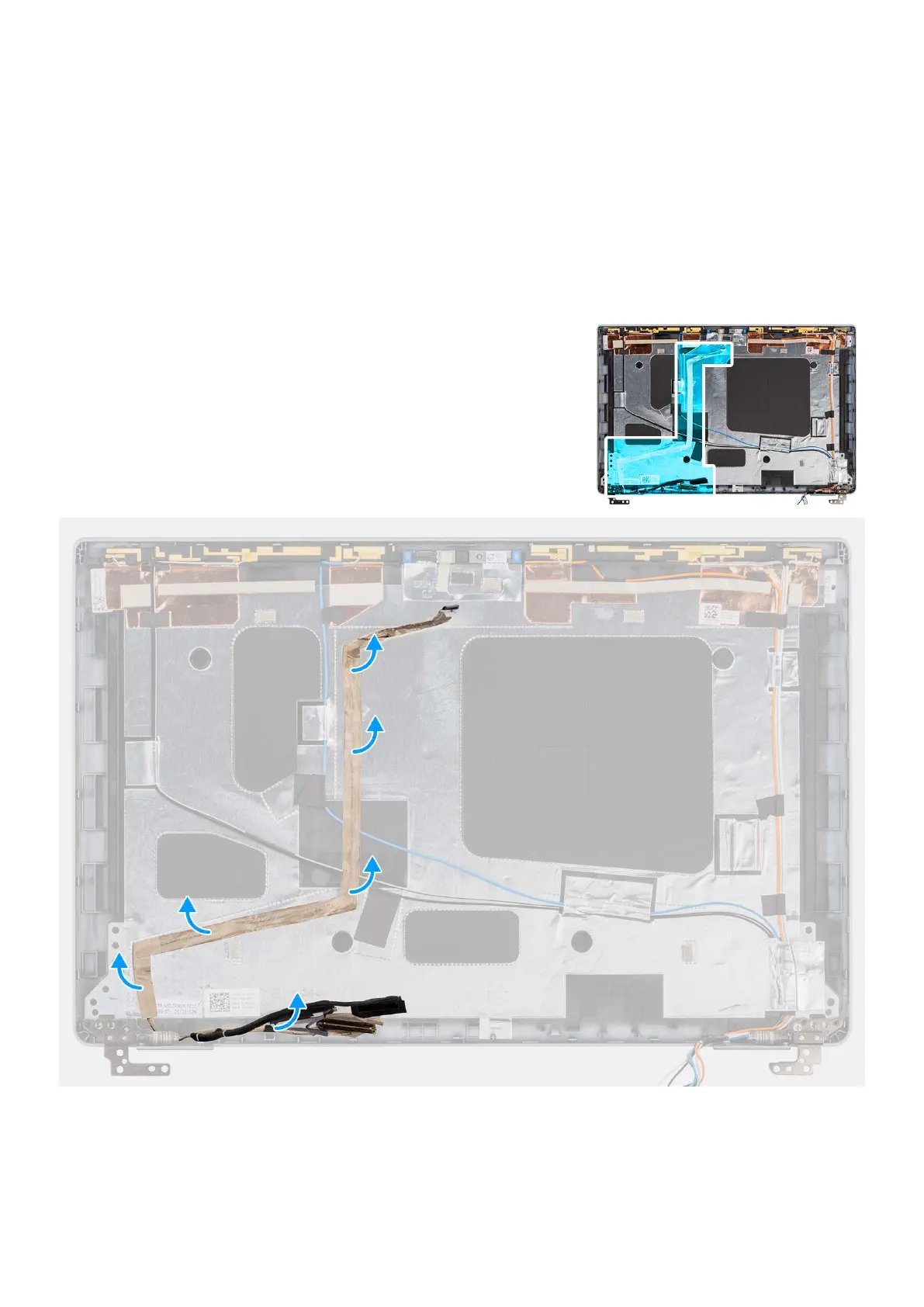

The following images indicate the location of the eDP cable and provide a visual representation of the removal procedure.
Steps
1. Disconnect the eDP/display cable from the connector on the camera module.
Removing and installing components
109
