Steps

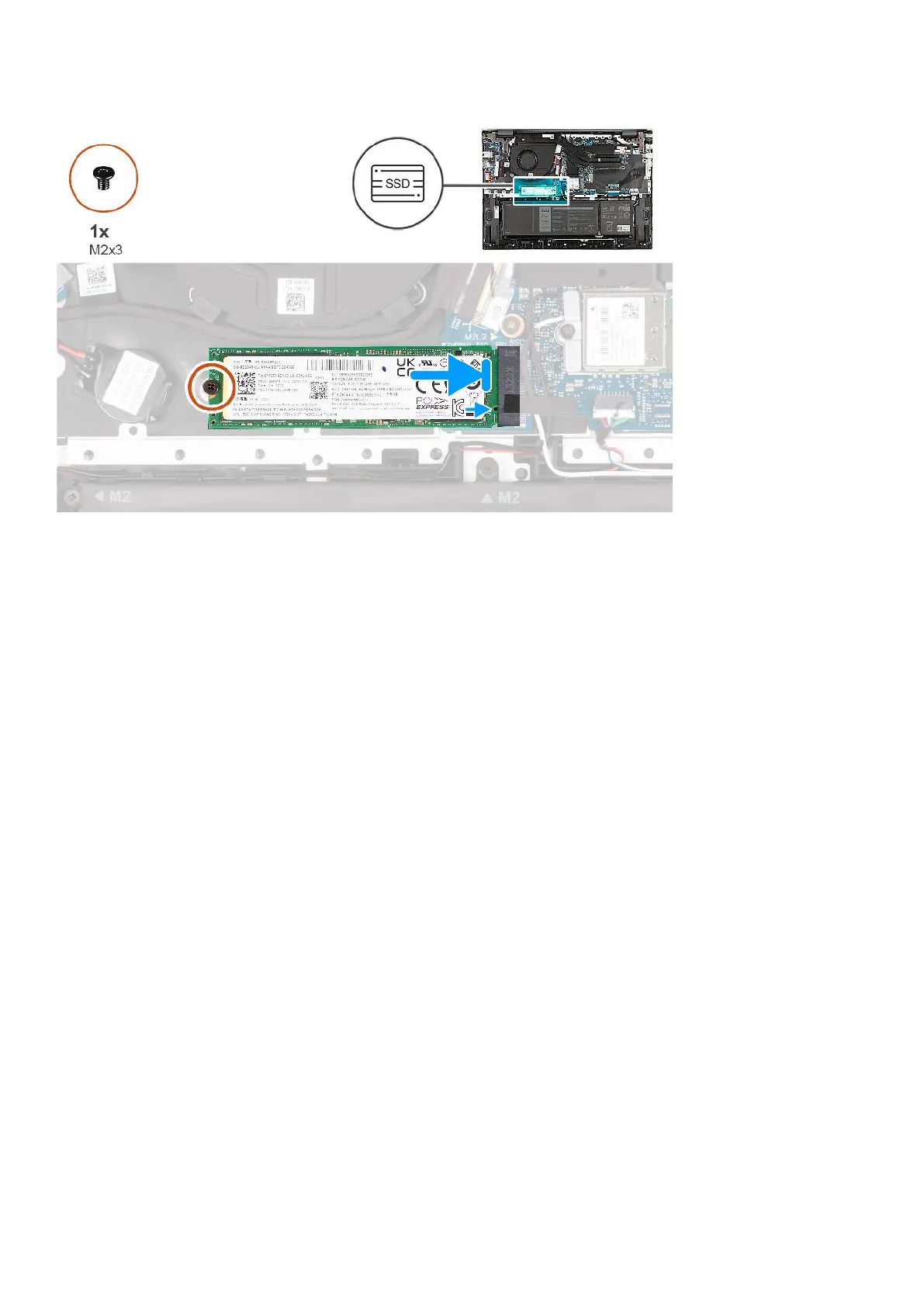

1. Align the notch on the M.2 2280 solid-state drive with the tab on the solid-state drive slot.
2. Gently slide the M.2 2280 solid-state drive into the solid-state drive slot.
3. Replace the screw (M2x3) that secures the M.2 2280 solid-state drive to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing and installing Customer Replaceable Units (CRUs)
43
