Dell P172G - Major Internal Components Overview

NOTE: Screw color may vary with the configuration ordered.

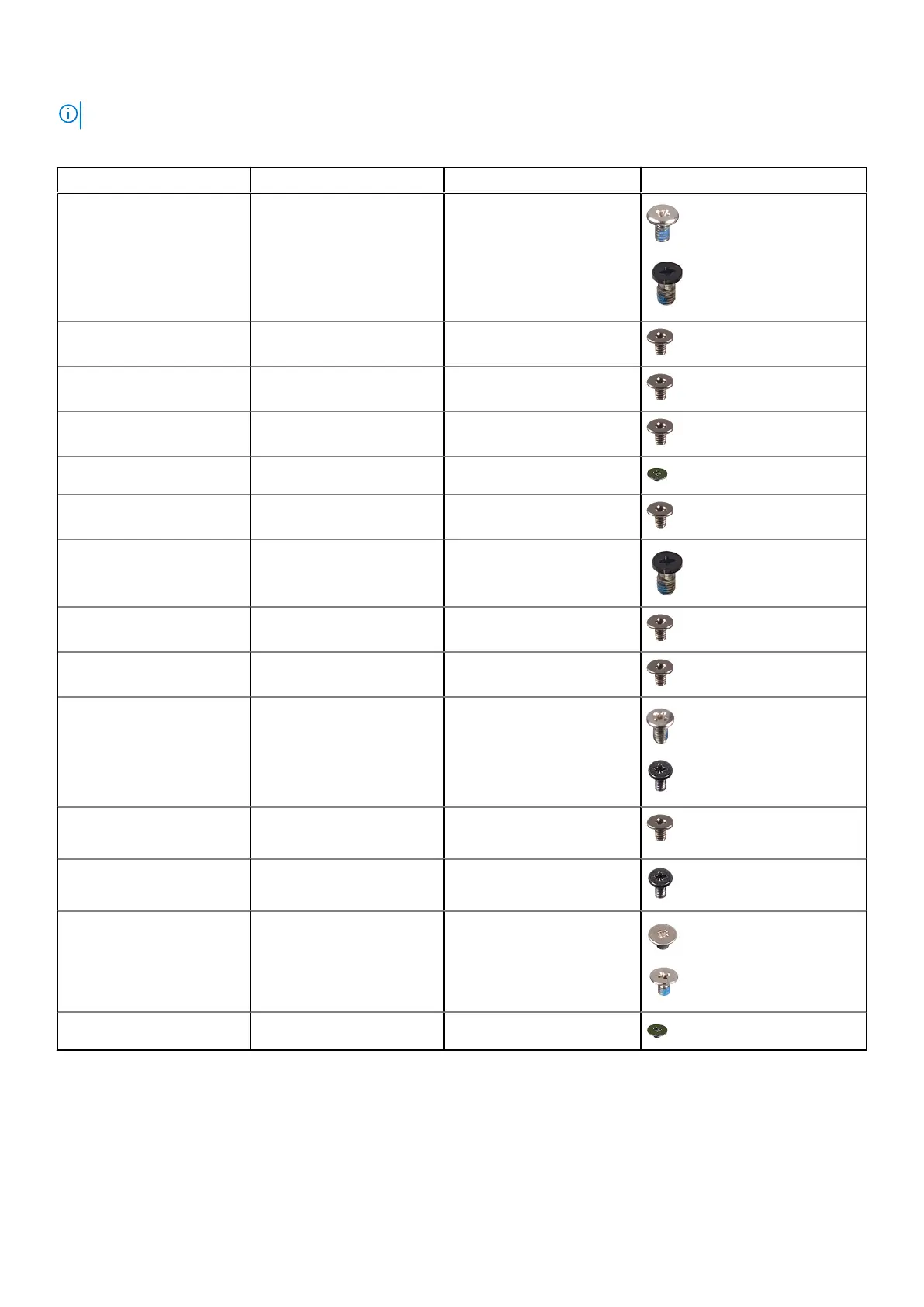

Table 25. Screw list
Component Screw type Quantity Screw image
Base cover M2x4
Captive screw
4
3
Battery M2x3 5
Wireless-card bracket M2x3 1
M.2 2230 mounting bracket M2x3 1
M.2 2230 solid-state drive M2x1.8 1
M.2 2280 solid-state drive M2x3 1
Heat sink Captive screw 4
Fan M2x3 2
I/O board M2x3 1
Display hinges M2.5x4
M2x4
5
1
Power-button with
fingerprint reader
M2x3 1
USB Type-C bracket M2x4 2
Touchpad M2x2
M1.6x2.5
4
5
System board M2x1.8 2
Major components of Inspiron 14 7435 2-in-1
The following image shows the major components of Inspiron 14 7435 2-in-1.
