Dell P2722HE Service Manual

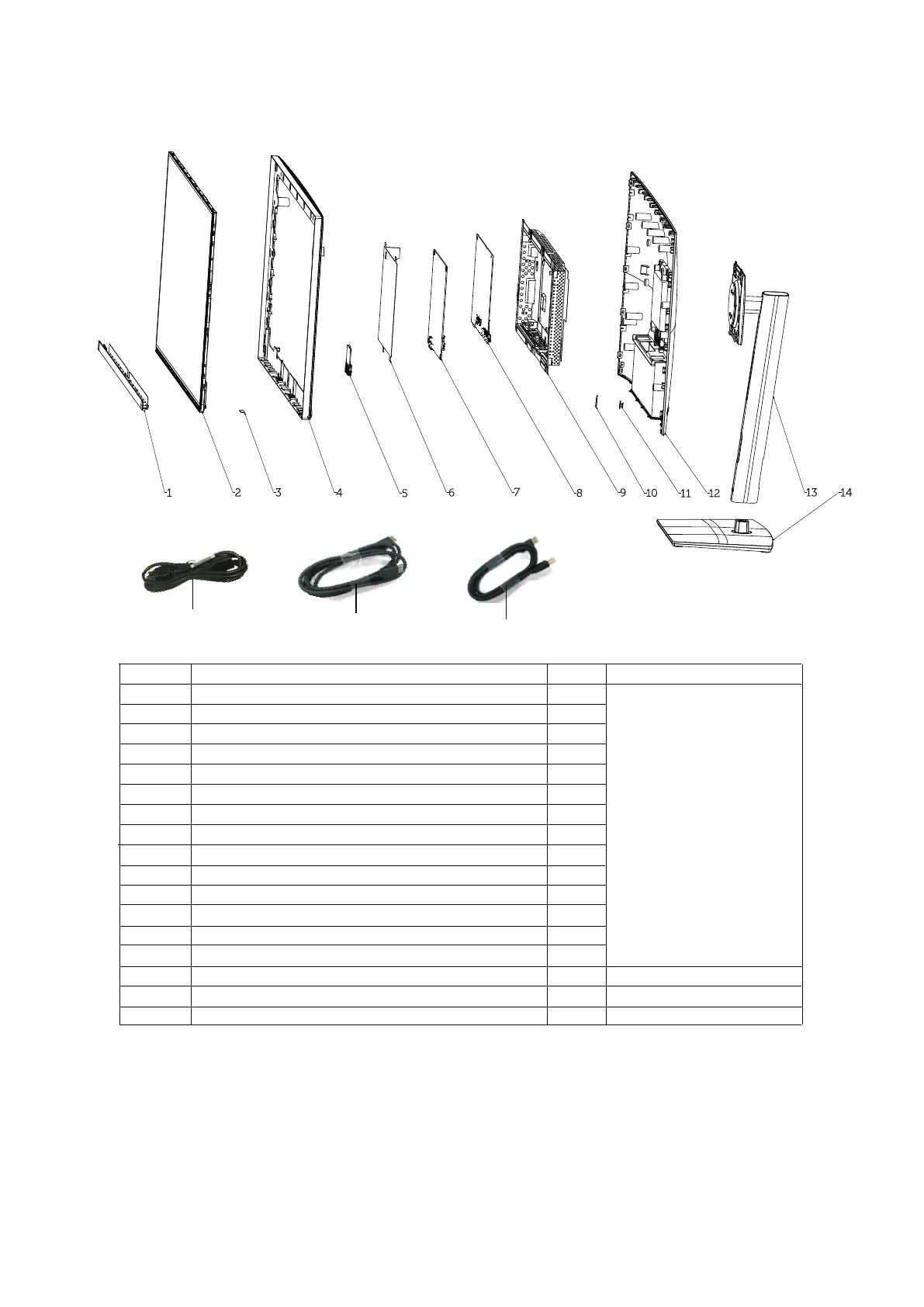

2. Exploded view diagram with list of items
NOTE:
For replacement of power cord, connectivity cable and external power supply (if applicable), contact Dell:
1. Go to https://www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom-right corner of the page.
3. Click Contact Us next to the country dropdown.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.
Item Description Q'ty Remark
1 1
For EMEA Only, not for
other regions
2
Panel Mylar
1
13
4 1
15
6
USB BD
1
1 7
8 1
9
10
11 1
1
Key BD
12
1 13
1 14
LED BD
Front trim
ASSY Middle Frame
Interface BD
Power BD
1
1
15
1
1
Main bracket
16
Joystick button
See “NOTE”
See “NOTE”
Riser ASSY
Base ASSY
Back cover
Panel
1 17
See “NOTE”
USB Type-C cable(1.8 meter)
Power cable
DisplayPort cable(1.8 meter)
17
16
15

Dell P2722HE Specifications

General

HDMI version	1.4
Headphone out	No
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub	Yes
Charging port type	USB Type-C
DisplayPort version	1.2
Number of upstream ports	1
USB Power Delivery up to	65 W
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	4
Pivot angle	-90 - 90 °
LED indicators	Power
Tilt angle range	-5 - 21 °
Height adjustment	150 mm
Panel mounting interface	100 x 100 mm
Color depth	8 bit
Pixel pitch	0.3114 x 0.3114 mm
Screen shape	Flat
Pixel density	82 ppi
Response time	8 ms
Backlight type	LED
Display diagonal	27 \
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Response time (fast)	5 ms
Horizontal scan range	30 - 83 kHz
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Viewable size diagonal	686 mm
Viewable size, vertical	336.31 mm
sRGB coverage (typical)	99 %
Display number of colors	16.7 million colors
Display diagonal (metric)	68.6 cm
Viewable size, horizontal	597.89 mm
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
AC input voltage	100 - 240 V
Power supply type	Internal
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (max)	118 W
Power consumption (off)	0.2 W
Power consumption (standby)	0.3 W
Power consumption (typical)	14.5 W
AMD FreeSync	-
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Feet color	Silver
Front bezel color	Black
Heavy metals free	Hg (mercury)
Market positioning	Business
Doesn't contain	PVC/BFR
Sustainability certificates	ENERGY STAR, EPEAT Gold, RoHS
Cables included	AC, DisplayPort, USB
Harmonized System (HS) code	85285210

Weight and Dimensions

Bezel width (top)	5.99 mm
Bezel width (side)	6.01 mm
Depth (with stand)	190.1 mm
Width (with stand)	609.9 mm
Height (with stand)	534.15 mm
Weight (with stand)	6810 g
Bezel width (bottom)	17.29 mm
Depth (without stand)	52.15 mm
Height (without stand)	359.6 mm
Weight (without stand)	4920 g
