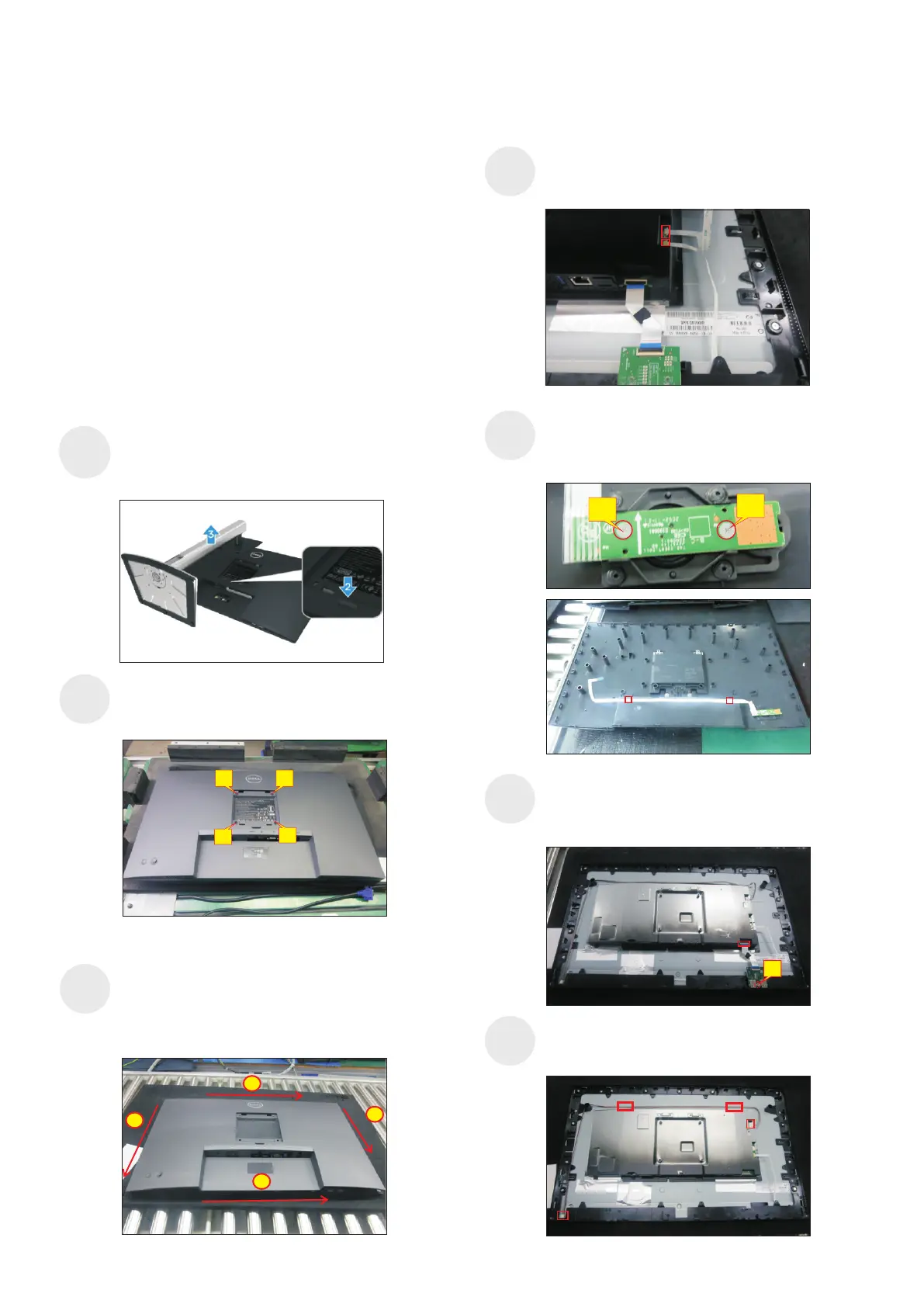

5. Disassembly and Assembly Procedures
5.1 Disassembly Procedures:
Tool Required:
List the type and size of the tools that would typically can be
used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Description:
- Screwdriver(Phillip head) #1
- Screwdriver(Phillip head) #2
- Penknife
- Soldering iron and absorber
NOTE:
This “Disassembly and Assembly Procedures” is for EMEA only,
not for other regions. Please note that Dell will deem warranty void
if any disassembly is done on the monitors.
Wedge your fingers between the rear cover and the
middle bezel on the corners of the top side of the
monitor to release the rear cover, then use one hand
to press the middle bezel, the other hand to pull up
carefully the rear cover in order of arrow preference
for unlocking mechanisms of rear cover..
Use a Philips-head screwdriver to remove four
screws for unlocking mechanisms.
(No.1~4 screw size=M4x10; Torque=12±0.5kgfxcm)
S3
S2
S1
2
3
4
1
1
3
2
2
S1
Remove the monitor stand base:
1. Place the monitor on a soft cloth or cushion.
2. Press and hold the stand-release button.
3. Lift the stand up and away from the monitor.
S4
S7
Use a Philips-head screwdriver to remove 2pcs
screws for unlocking the joystick key board unit, then
tear off the tapes and release the USB board.
(No.1~2 screw size=M2x3.3,Torque=1±0.2kgfxcm)
S5
1
2
S6
Use a Philips-head screwdriver to remove one screw
for unlocking the USB board unit, then release the
USB board unit and put it aside.
(No.1 screw size=M3x6, Torque=4±0.5kgfxcm)
Lift the rear cover up carefully. Disconnect the key
cable and USB FFC cable from the connectors of
the interface board, and then remove the rear cover.
Disconnect the panel lamp cable away from the
connectors of the panel module and circuit board,
then release the cable by tearing off tape.
1
To Next Page
