Dell P2724DEB - 页 4

4
DELL P2724DEB

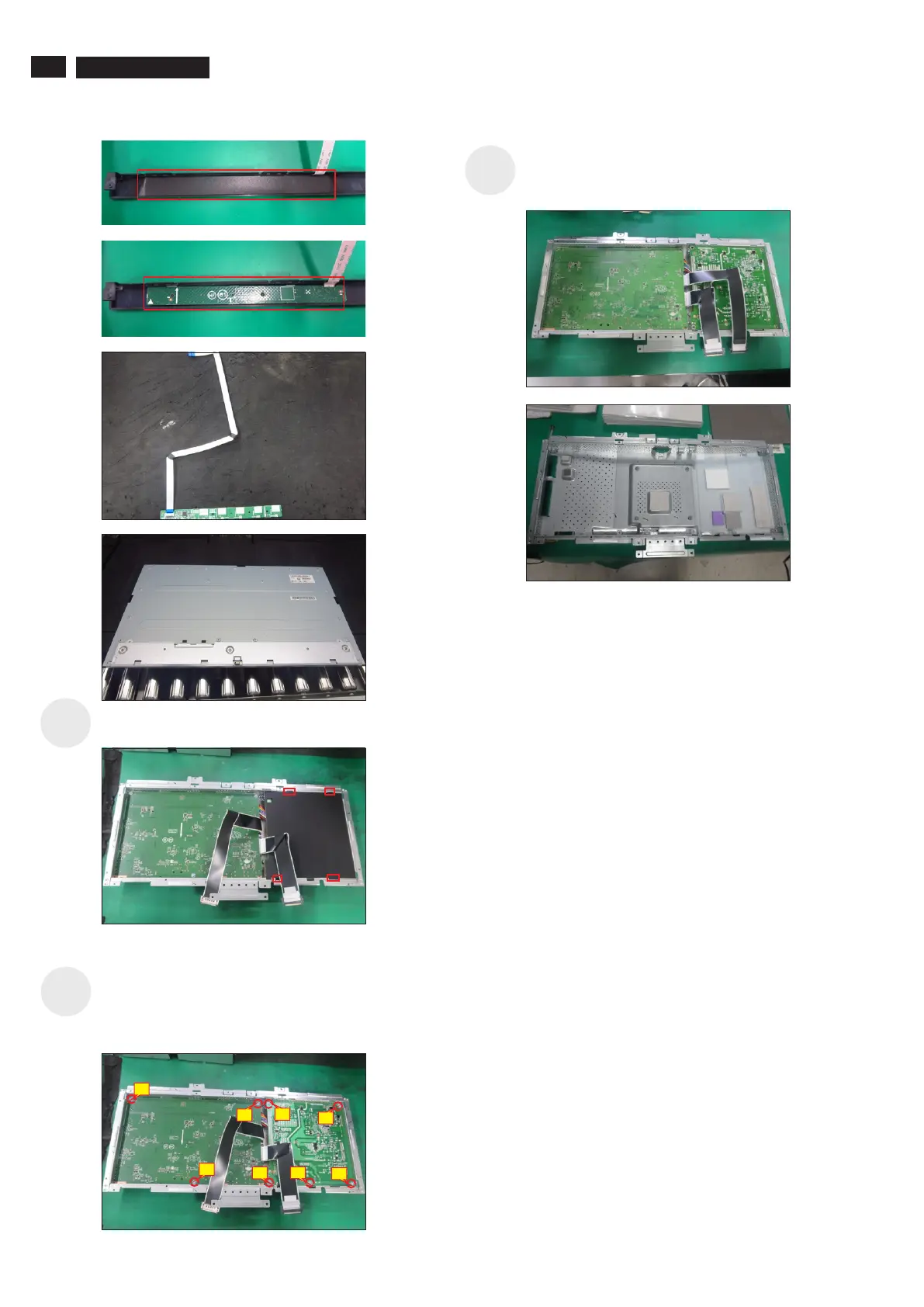

(No.1 screw size=M4x8, Torque=7.5±0.5kgfxcm;
Use a Philips-head screwdriver to remove 8pcs
screws for interface board and power board with the
bracket chassis module.
No.2~8 screw size=M4x8, Torque=7.5±0.5kgfxcm)
Remove the power board and interface board from
the bracket chassis module carefully, and then
disconnect all of the cables.
S23
Remove the Mylar tape from the hooks of the
bracket chassis.
S22
S21
1
3
2
7
8
6
4
5
