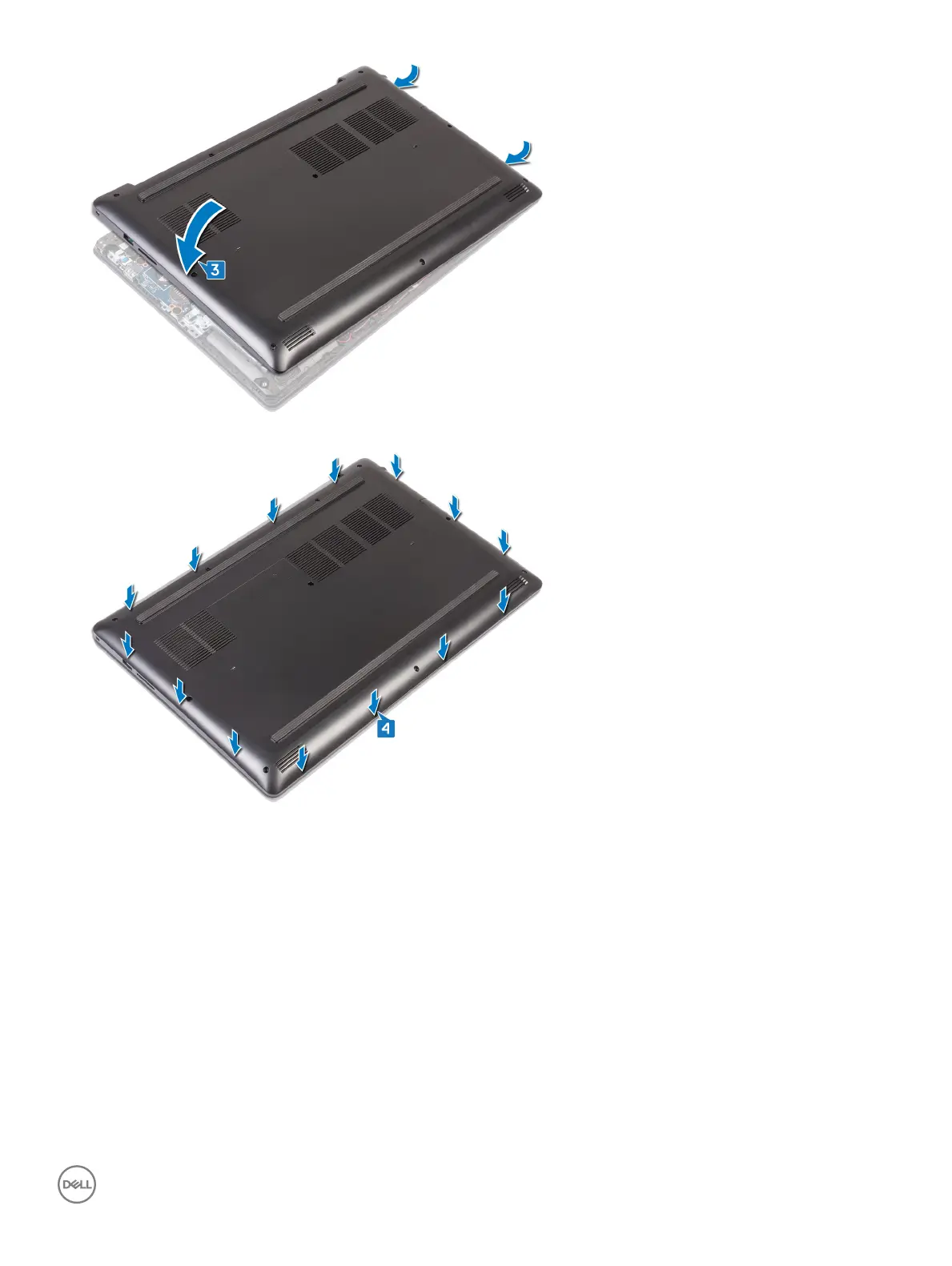

4 Align the tabs on the base cover with the slots on the palm-rest assembly and snap it into place.
5 Tighten the two captive screws (M2.5) that secure the base cover to the palm rest and keyboard assembly.
6 Replace the eight screws (M2.5x6) that secure the base cover to the palm rest and keyboard assembly.
Replacing the base cover
