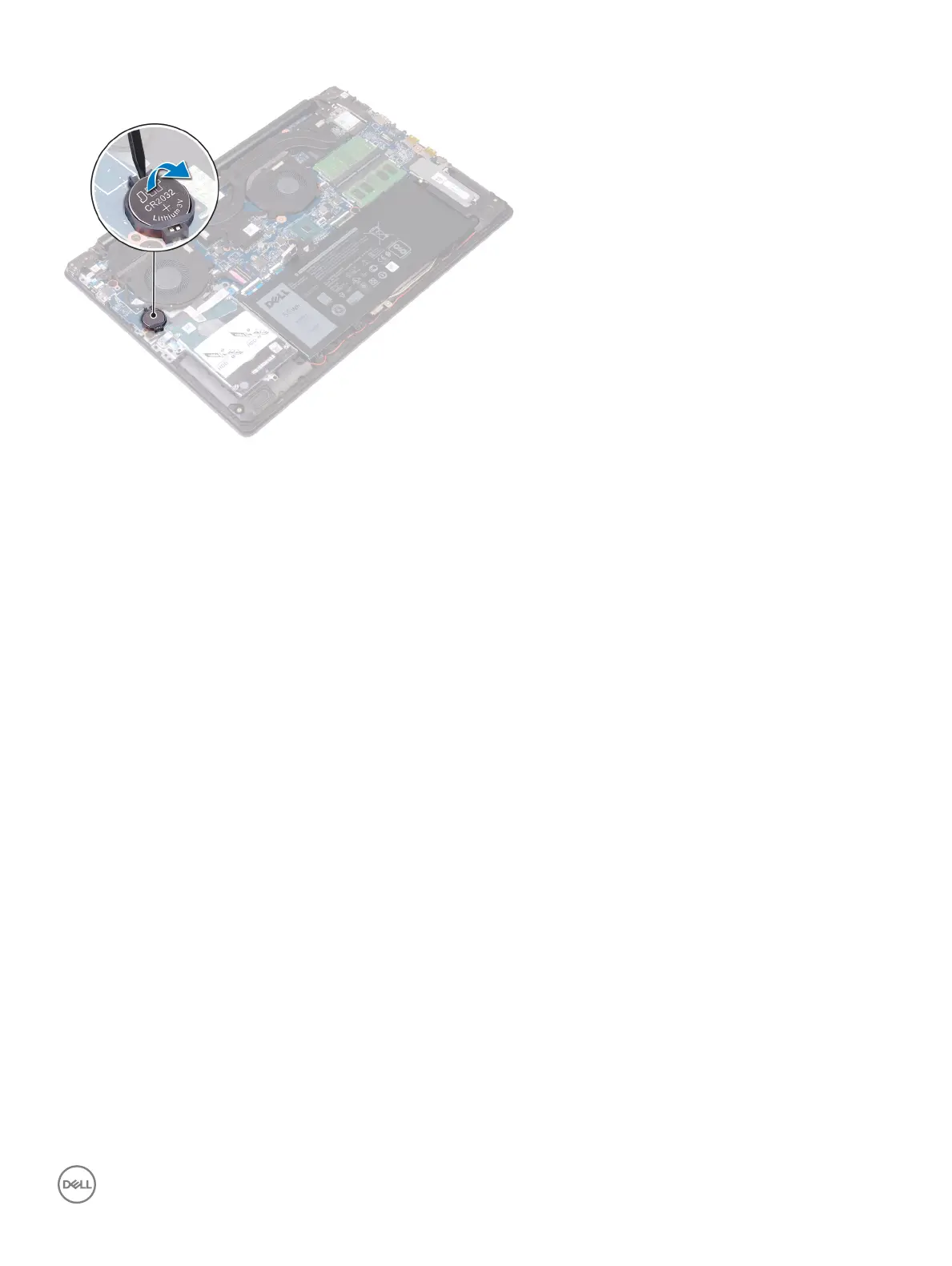

Using a plastic scribe, gently pry the coin-cell battery out of the battery socket on the I/O board.

Removing the coin-cell battery 29
