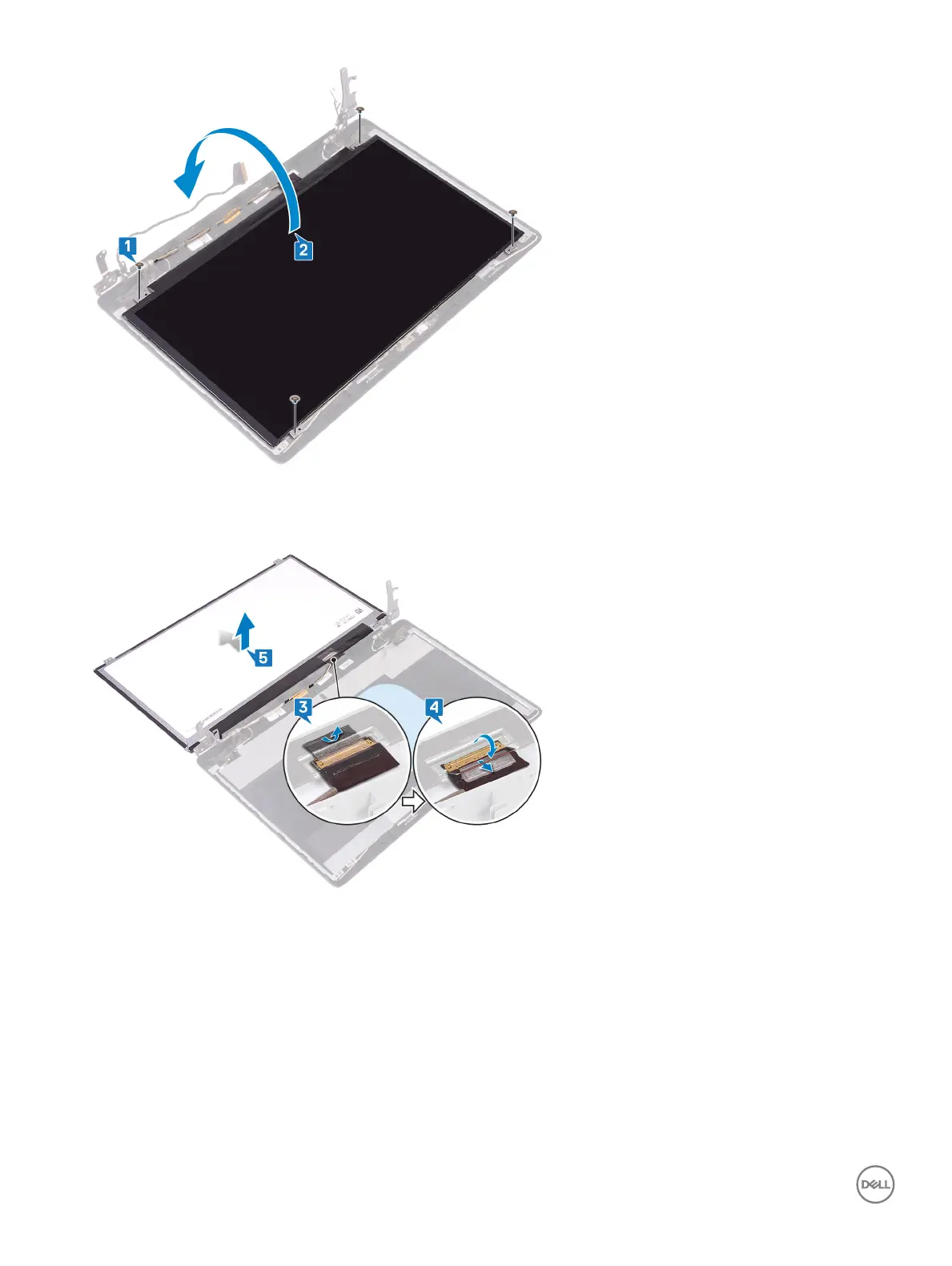

3 Peel the tape adhering the display cable to the back of the display panel.

4 Open the latch and disconnect the display cable from the display-panel cable connector.

5 Lift the display panel away from the display back-cover and antenna assembly.

Removing the display panel
