7
Configuring LAG Membership

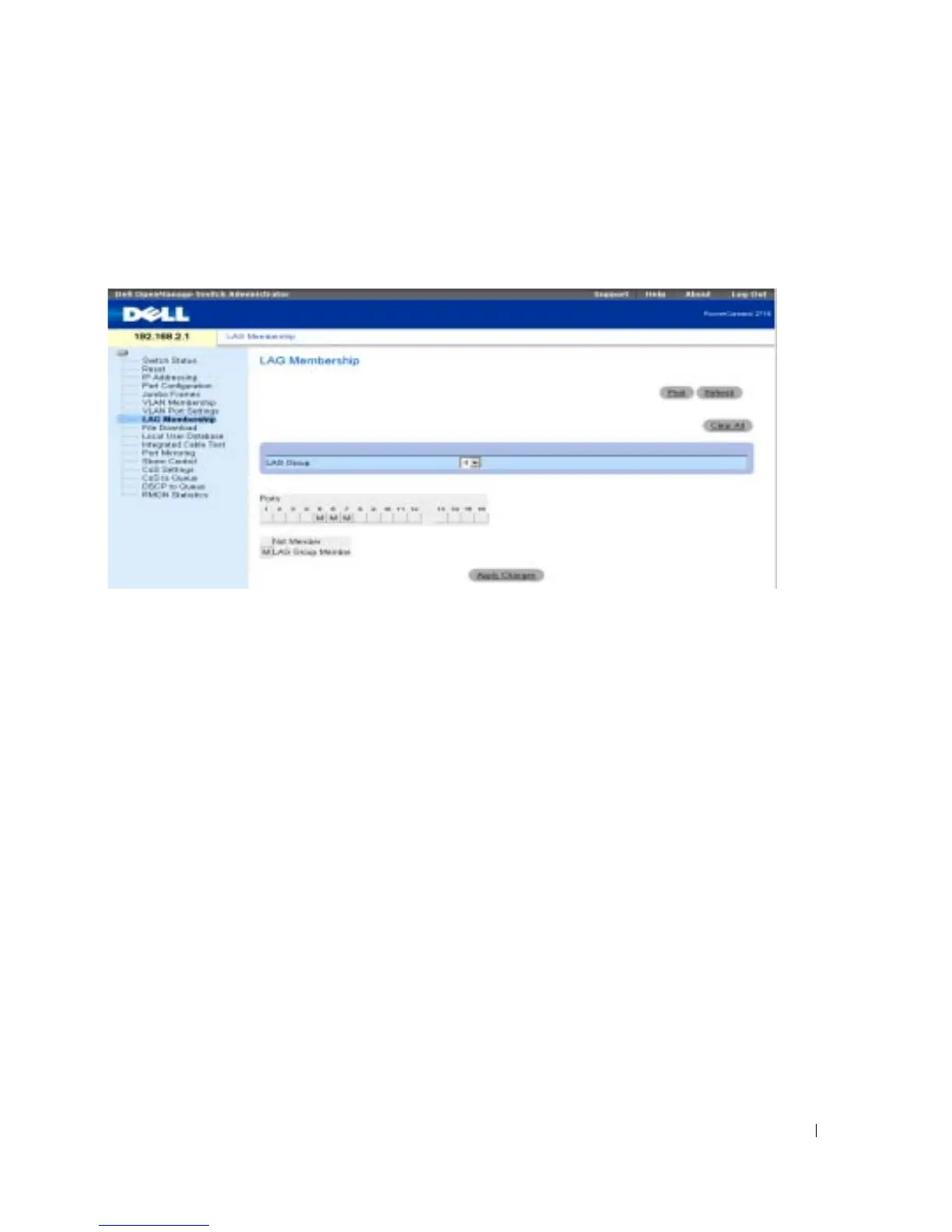

The following screen shows an example of Link Aggregation configuration, whereby LAG Group 4
consists of member ports 5, 6, and 7.
Figure 9-6. LAG Membership
Downloading Files from Server
The File Download screen enables the user to configure and update Software Image files or BootP
Image files in the PowerConnect 2708/2716/2724 devices.
The TFTP Server IP Address specifies the location from which files are donloaded. The File Name
specifies the file to be downloaded. The Destination File can be either the Software Image file, or
the Boot Code image.
NOTE: The TFTP Server application can be either downloaded from Internet public domains, or purchased
from software vendors.
