Dell Networking W-Series Wireless LAN Mobility Controller Optimizations for Microsoft Lync
8
Adaptive RADIO Management (ARM) Profile
VOIP Aware Scan
Navigate to Configuration -> All Profiles -> RF Management -> Adaptive RADIO Management ARM
Profile -> <profile name>-> ARM Profile Details -> VOIP Aware Scan.

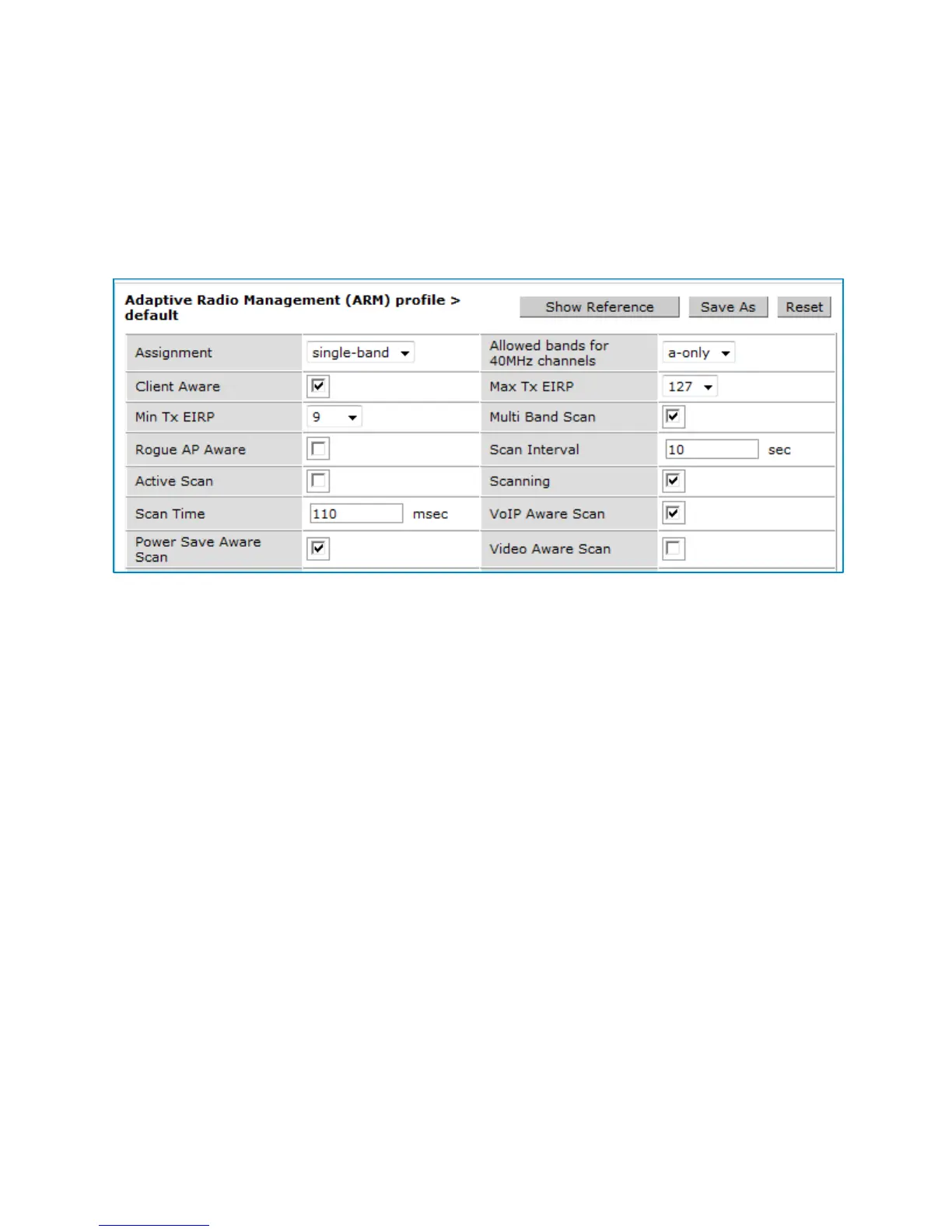

Adaptive RADIO Management (ARM) Profile Figure 6.
This feature prevents any single access point from becoming congested with voice calls. Dell access
points will not attempt to scan different channels if one client has an active VOIP call.
Power Save Aware Scan
See Figure 6. Select the Power Save Aware Scan checkbox to enable the feature.
With this feature enabled, if Dell access points detect one or more clients in power save mode,
the access point will not scan across other channels.

Dell PowerConnect W-AP92 Specifications

Wireless Radio Specifications

supported frequency bands	2.400 to 2.4835 GHz, 5.150 to 5.850 GHz
transmit power 2.4 GHz	up to 23 dBm
transmit power 5 GHz	up to 23 dBm

Interfaces

ethernet interface	1 x 10/100/1000BASE-T Ethernet (RJ-45)
serial console interface	1 x RJ-45
power over ethernet	IEEE 802.3af Power over Ethernet (48V DC)

Power

external AC power	12V DC
maximum power consumption	10 watts
power over ethernet	48V DC

Operating Environment

operating temperature	0° to 50° C
operating humidity	5 to 95% non-condensing
storage temperature	-40° to 70° C

Weight and Dimensions

dimensions	120 mm x 130 mm x 35 mm
weight	375 g
antenna gain 2.4 GHz	2.5 dBi
