78 Installing System Components

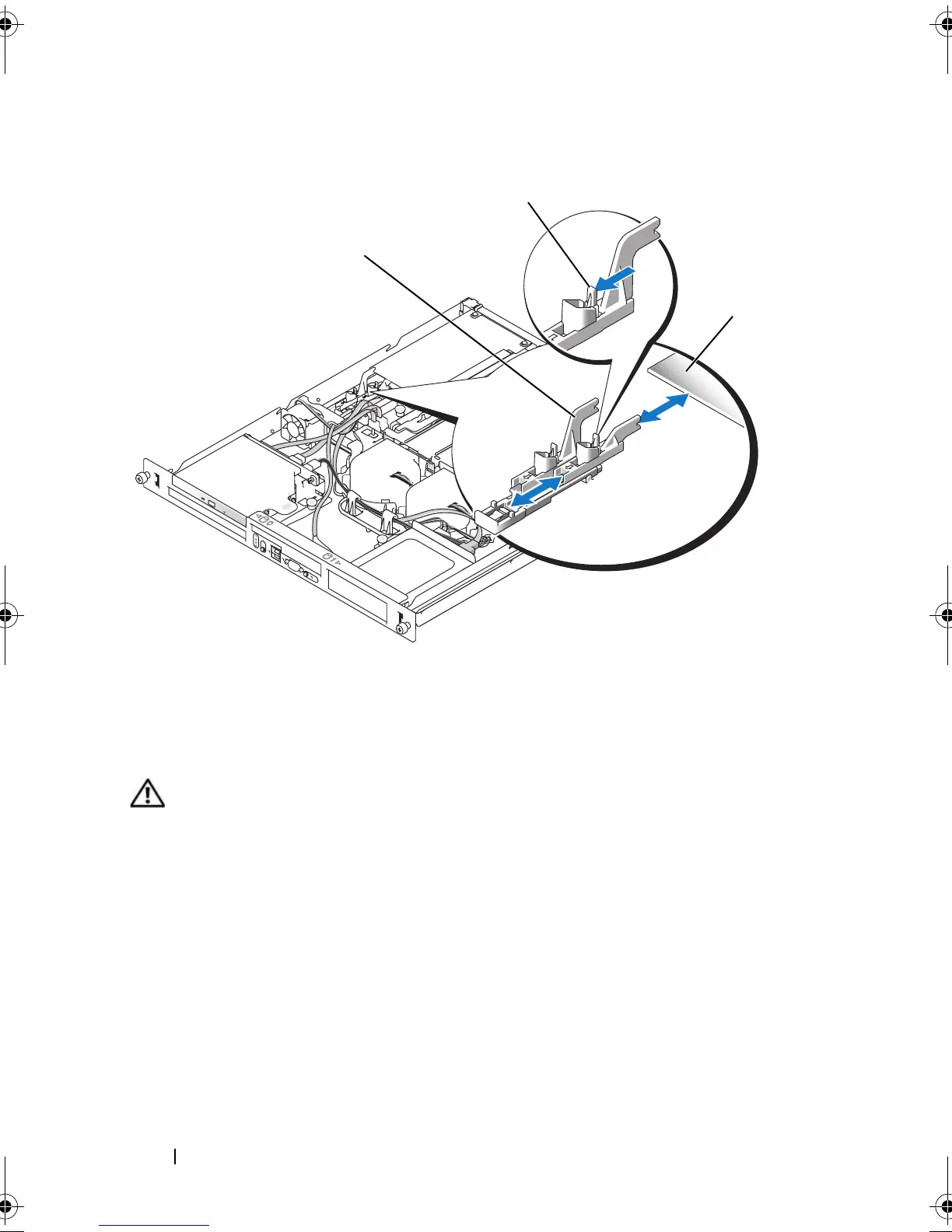

Figure 3-15. Opening and Closing the Expansion-Card Sliding Retainer
Removing an Expansion Card
CAUTION: Only trained service technicians are authorized to remove the system
cover and access any of the components inside the system. Before performing any
procedure, see your Product Information Guide for complete information about
safety precautions, working inside the computer and protecting against
electrostatic discharge.
1
Open the system. See "Opening the System" on page 54.
2
Disconnect any internal or external cable(s) that are connected to the
expansion card.
3
Lift the expansion-card retainer adjacent to the PCI slots. See Figure 3-14.
4
Slide the expansion-card sliding retainer to the retracted or open position.
See Figure 3-15.
1 expansion-card sliding
retainer
2 release tab 3 expansion card
2
3
1
book.book Page 78 Thursday, August 30, 2007 3:30 PM
