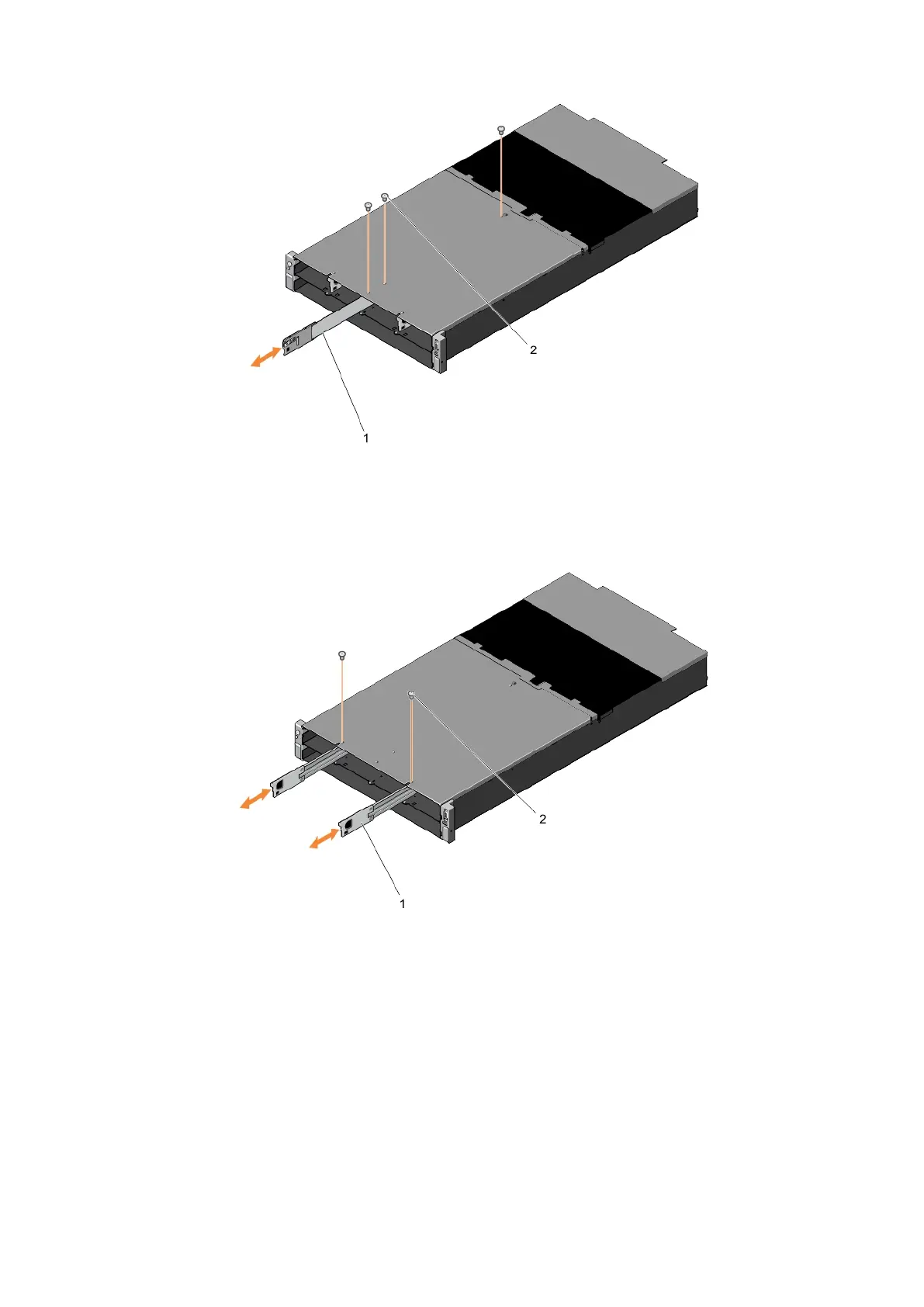

Figure 55. Removing and installing the top partition
a. top partition
b. screw (3)
6. Remove the two screws that secure the top interposer module to the top of the system.
7. Pull out the top interposer module from the system.
Figure 56. Removing and installing the top interposer module
a. top interposer module
b. screw (2)
Next steps
Install the top interposer module.
Related tasks
Installing the top interposer module on page 68
Removing a compute sled on page 35
Removing a storage sled on page 37
Removing a power supply unit on page 50
