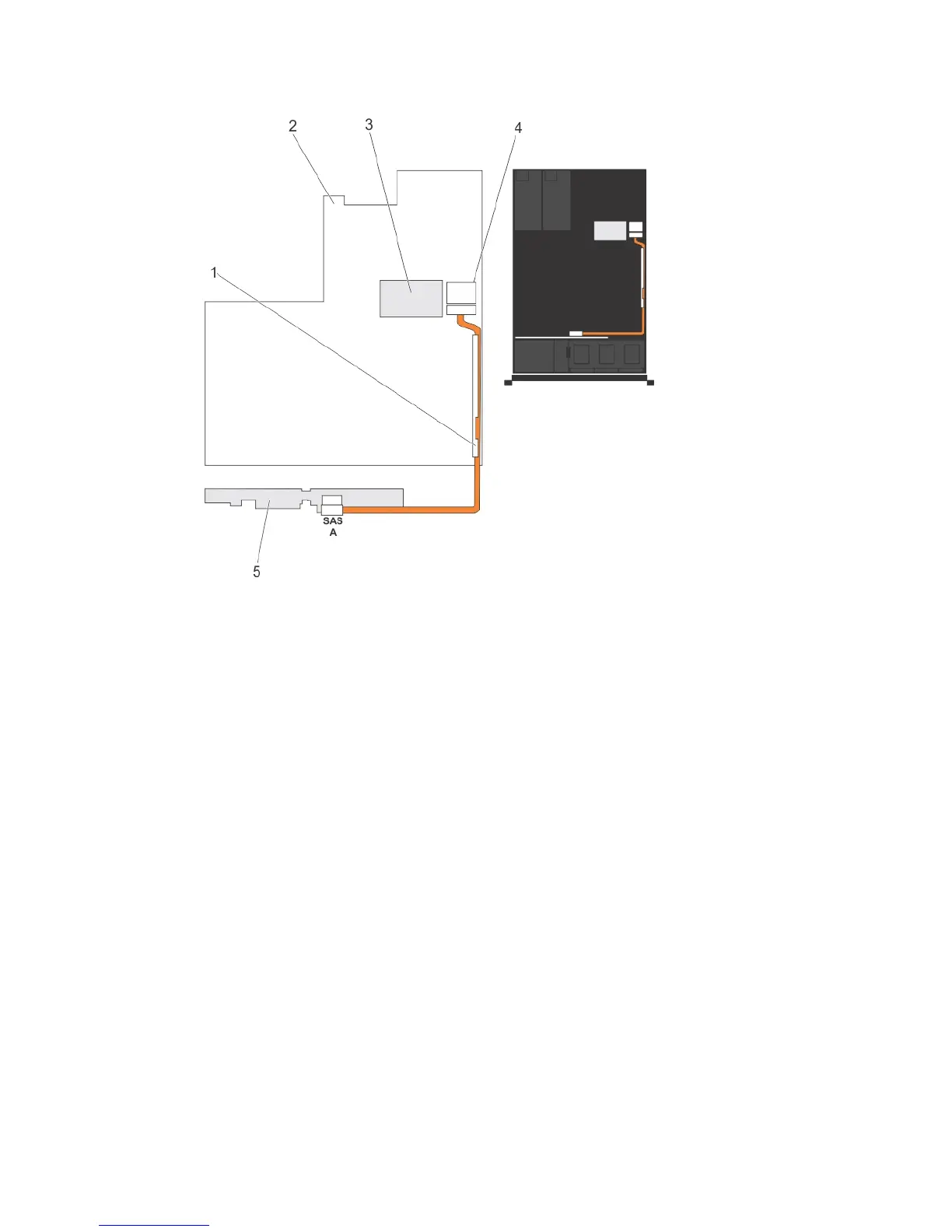

Figure 42. Cabling Diagram—2.5 Inch (x4) Systems
1. cable retention bracket
2. system board
3. integrated storage controller card
4. SAS connector on system board
5. SAS backplane
85
