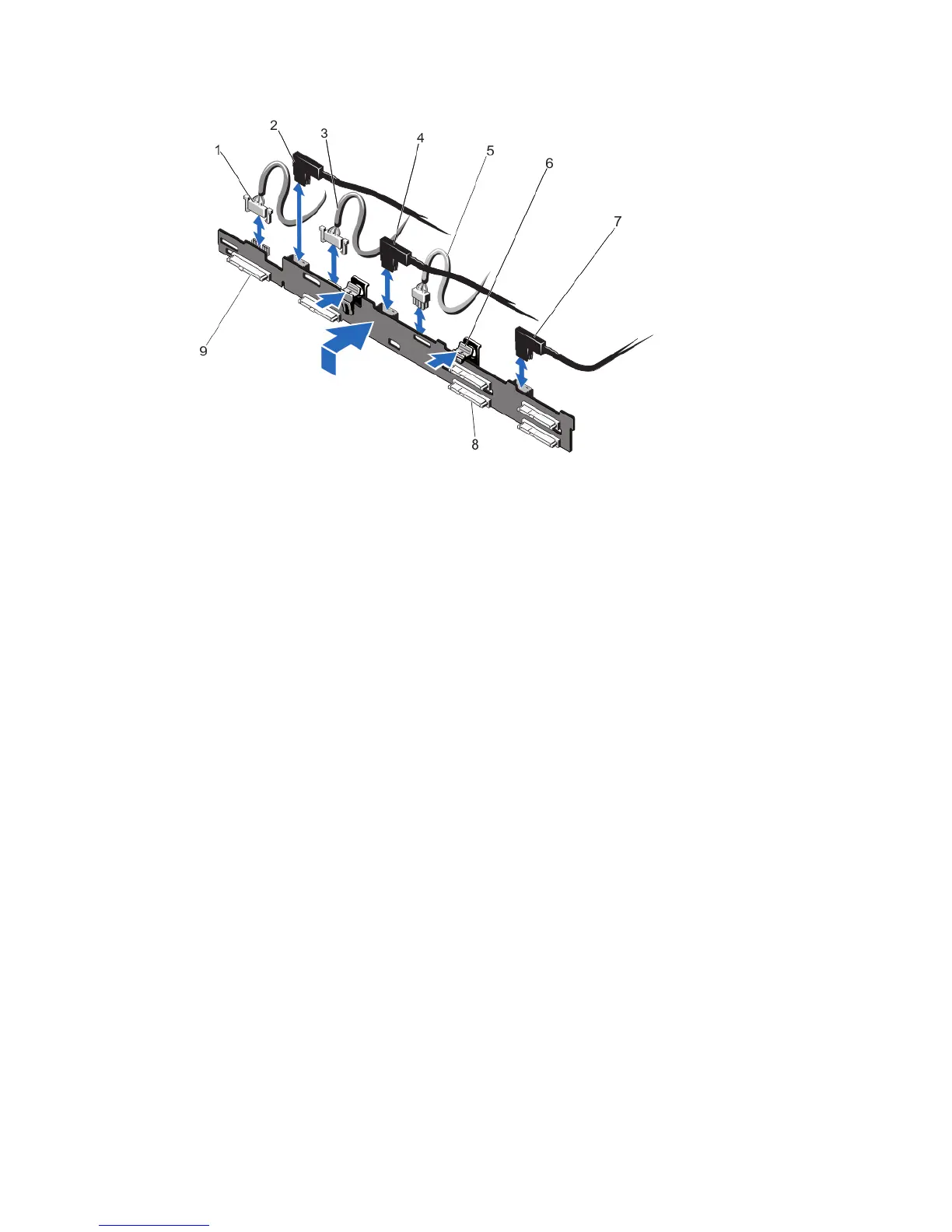

Figure 43. Removing and Installing the 2.5 Inch (x4 SAS Hard-Drive and x2 Dell PowerEdge Express Flash [PCIe SSD])
Backplane
1. backplane signal cable
2. PCIe A cable
3. backplane signal cable
4. PCIe B cable
5. backplane power cable
6. release tabs (2)
7. SAS B cable
8. SAS hard-drive connector on backplane
9. PCIe connector on backplane
