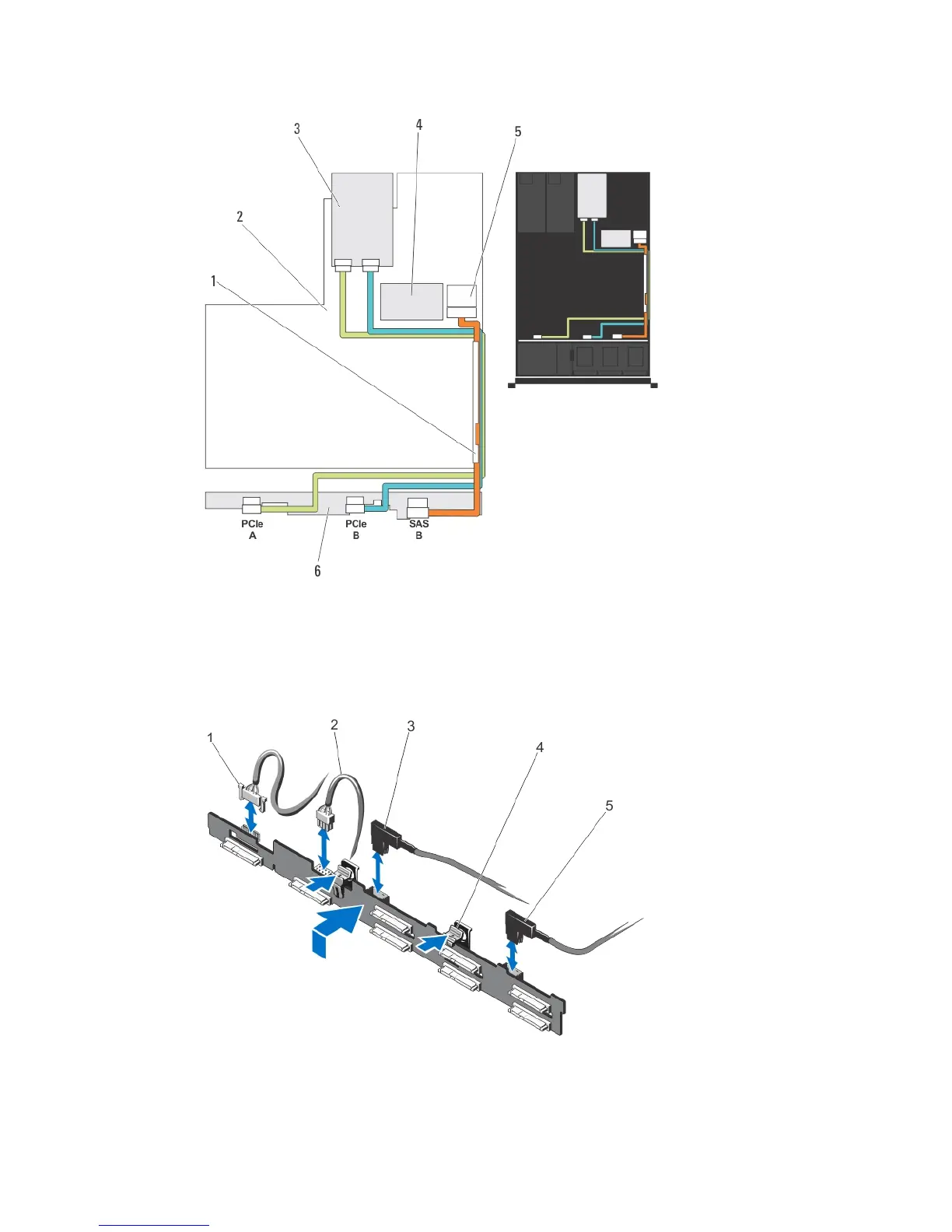

Figure 44. Cabling Diagram—Systems With the 2.5 Inch (x4 SAS and x2 PCIe SSD) Hard-Drive Backplane
1. cable retention bracket
2. system board
3. PCIe SSD card
4. integrated SAS controller card
5. SAS connector on system board
6. SAS and PCIe SSD backplane
Figure 45. Removing and Installing the 2.5 Inch (x8) Hard-Drive Backplane
