Cabling Your Blade Cluster Hardware 33

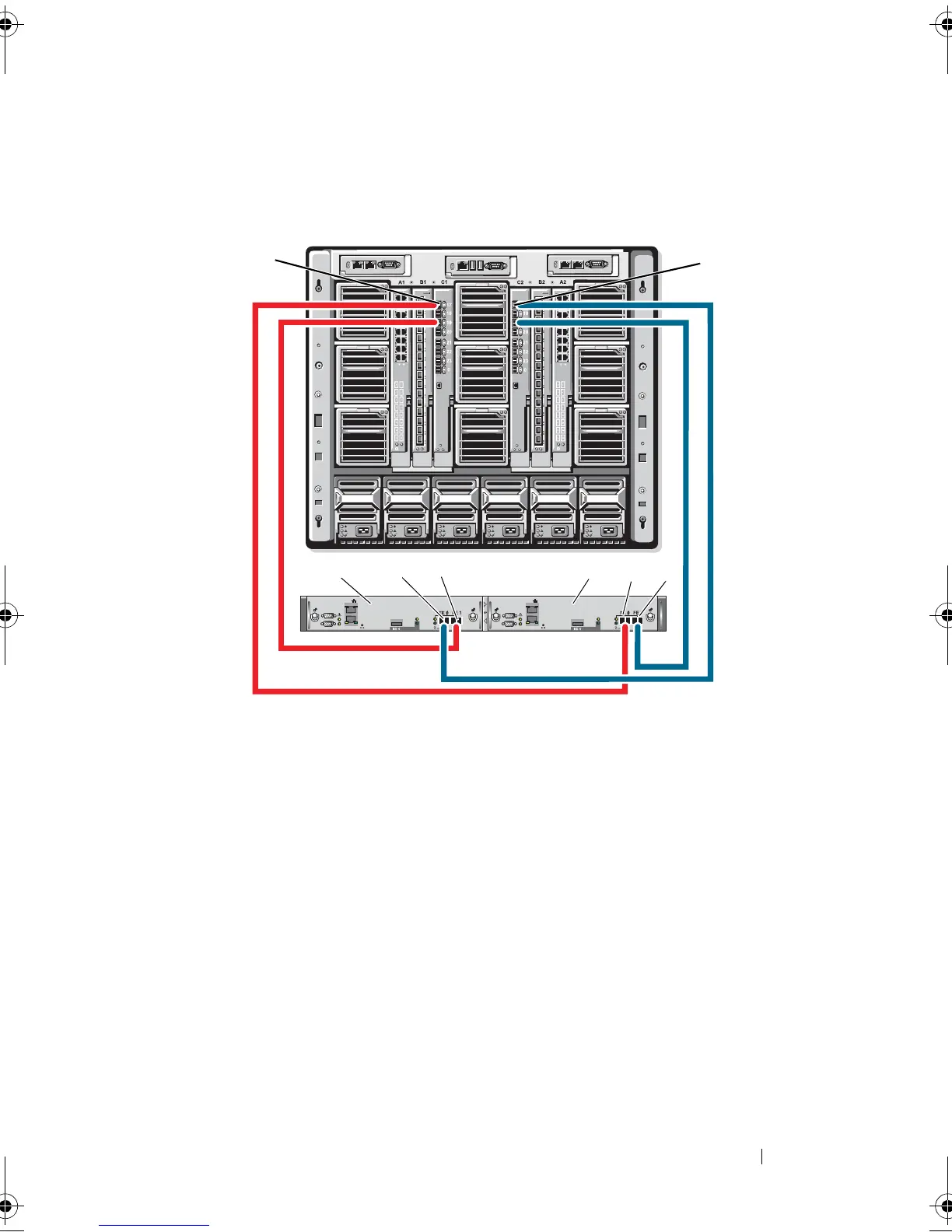

Figure 2-3. Cabling One PowerEdge M1000e Server Enclosure to the CX3-20 Storage
Processor Enclosure (SPE)
Cabling One PowerEdge Server Enclosure to Multiple Storage Systems
You can increase your cluster storage capacity by attaching two storage
systems to your cluster using a redundant switch fabric. PowerEdge cluster
systems can support configurations with two storage units attached to
clustered servers. In this scenario, the Microsoft
®
Cluster Services (MSCS)
software can fail over disk drives in any cluster-attached shared storage array
between the cluster nodes.
1 Fibre Channel switch module in I/O
bay C1
5 Fibre Channel switch module in I/O
bay C2
2 SP-B 6 SP-A
3 0Fibre 7 0Fibre
4 1Fibre 8 1Fibre
1
62
5
PowerEdge system
CX3-20 storage
system
3
4
78
