NOTE: Some devices may not be included if you did not order them.

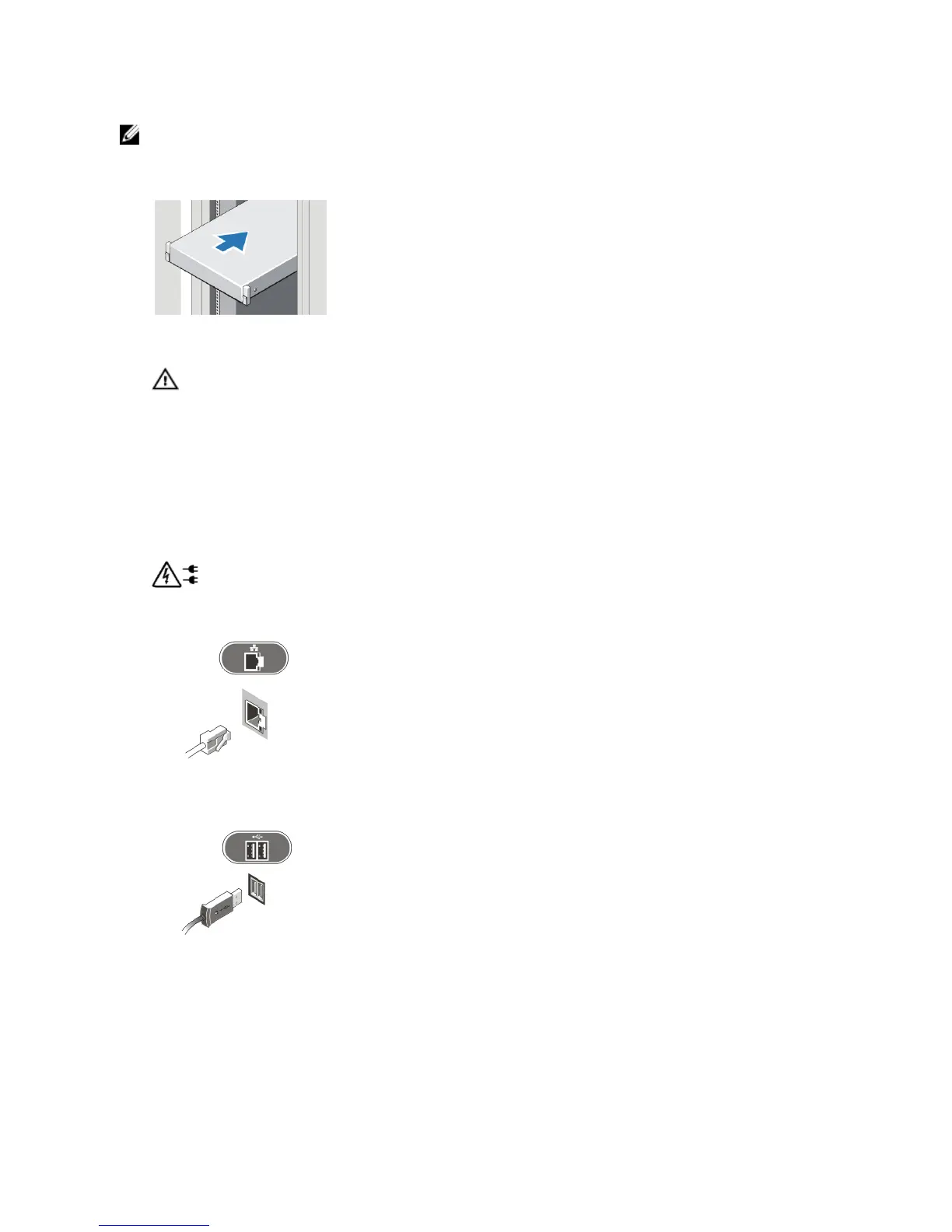

1. Install the rails and the computer in the rack. See your rack installation documentation for safety instructions and
instructions on installing your computer in a rack.
Figure 2. Rack Installation
WARNING: Additional Instructions for Rack-Mounted Systems:
– Your rack kit has been approved only for the rack cabinet provided. It is your responsibility to ensure
that installation of the equipment into any other rack complies with all applicable standards. Dell
disclaims all liability and warranties with respect to combinations of equipment with any other rack.
– Before installing your equipment in a rack, install all front and side stabilizers. Failure to install
stabilizers can allow the rack to tip over.
– Always load from the bottom up, and load the heaviest items first.
– Do not overload the AC power supply branch circuit that provides power to the rack.
– Do not stand or step on any components in the rack.
: The system may have more than one power supply cable. To reduce the risk of electrical shock, a trained
service technician may need to disconnect all power supply cables before servicing the system.
2. Connect the network cable(s) (optional).
Figure 3. Network Connection
3. Connect the keyboard or mouse (optional).
Figure 4. Keyboard and Mouse Connection
4. Connect the power cable(s).
2

Dell Precision R7610 Specifications

General

Tcase	86 °C
Bus type	QPI
FSB Parity	No
Processor cache	30 MB
Processor cores	12
Processor model	E5-2697V2
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v2
Processor socket	LGA 2011 (Socket R)
Processor threads	24
Processor codename	Ivy Bridge EP
Number of QPI links	2
Processor frequency	2.7 GHz
Processor cache type	Smart Cache
Processor lithography	22 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	3.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	x4, x8, x16
Thermal Design Power (TDP)	130 W
Number of processors installed	1
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066, 1333, 1600, 1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
Maximum internal memory supported by processor	768 GB
Memory slots	8x DIMM
Internal memory	32 GB
Memory channels	Quad-channel
Memory clock speed	1600 MHz
Maximum internal memory	128 GB
Storage media	HDD
Optical drive type	-
Total storage capacity	500 GB
Discrete graphics card model	NVIDIA® Quadro® NVS 310
On-board graphics card model	Not available
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Headphone outputs	0
USB 2.0 ports quantity	6
PCI Express x16 slots	4
Chassis type	Rack-mounted chassis
Product color	Black, Silver
Rack capacity	2U
Placement supported	Horizontal
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C602
Password protection type	BIOS
Sustainability certificates	RoHS
Certification	WEEE
Scalability	2S
Processor ARK ID	75283
Processor package size	52.5 x 51 mm
Supported instruction sets	AVX
Physical Address Extension (PAE)	46 bit
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00

Weight and Dimensions

Depth	753.6 mm
Width	440.6 mm
Height	86.3 mm
Weight	- g
