Dell Precision T1500 - Back Panel

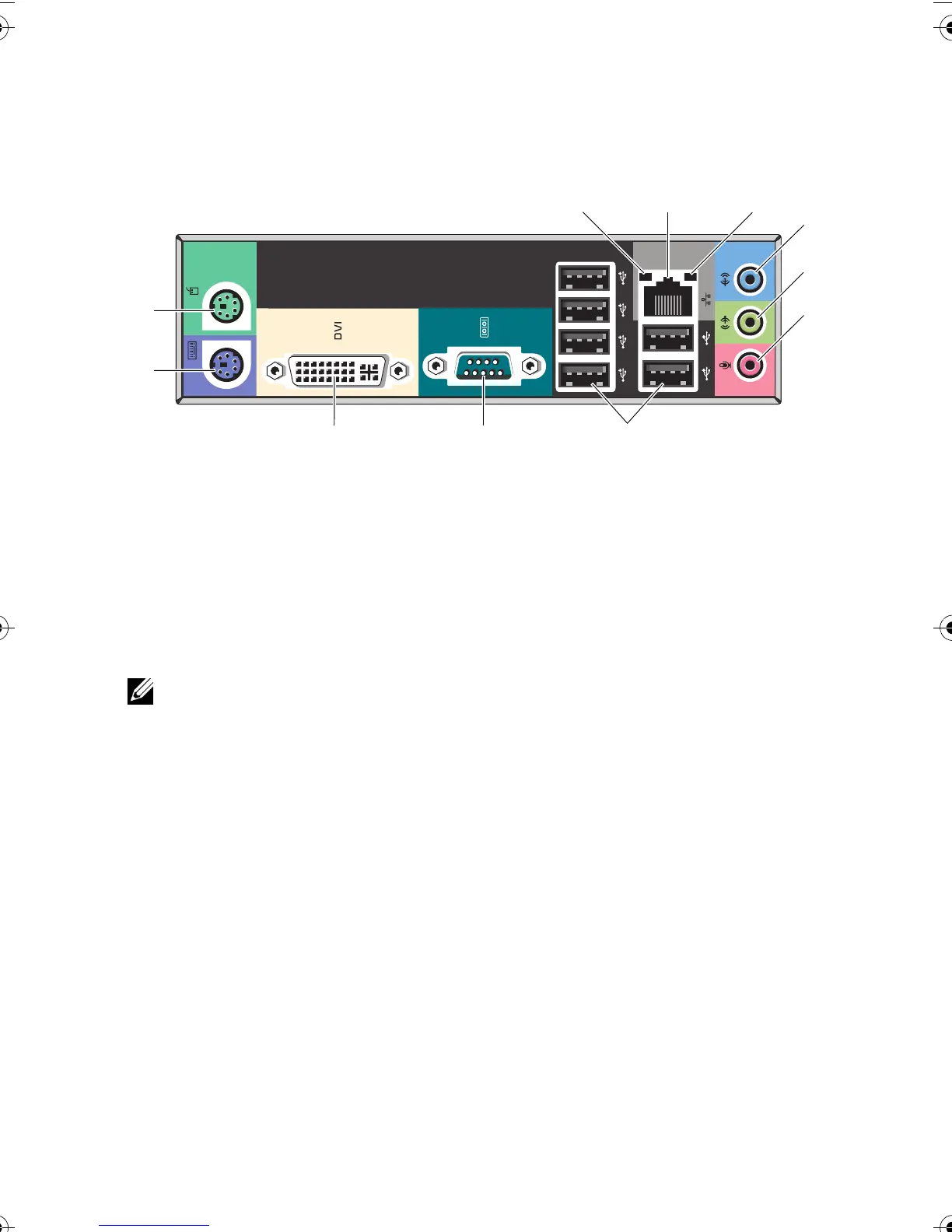

Back Panel
NOTE: The DVI–I connector is only available with Intel
®
H57 Express Chipset.
1 link integrity light 2 network adapter connector
3 network activity light 4 line-in connector / rear L/R connector
5 line-out connector / front L/R connector 6 microphone connector / center /
subwoofer connector
7 USB 2.0 connectors (6) 8 serial port
9 DVI-I connector 10 PS/2 connector – keyboard
11 PS/2 connector – mouse
1
23
4
5
6
8
7
11
10
9
