Dell Precision T5600 User Manual

CAUTION: Using excessive force may damage the grommets.

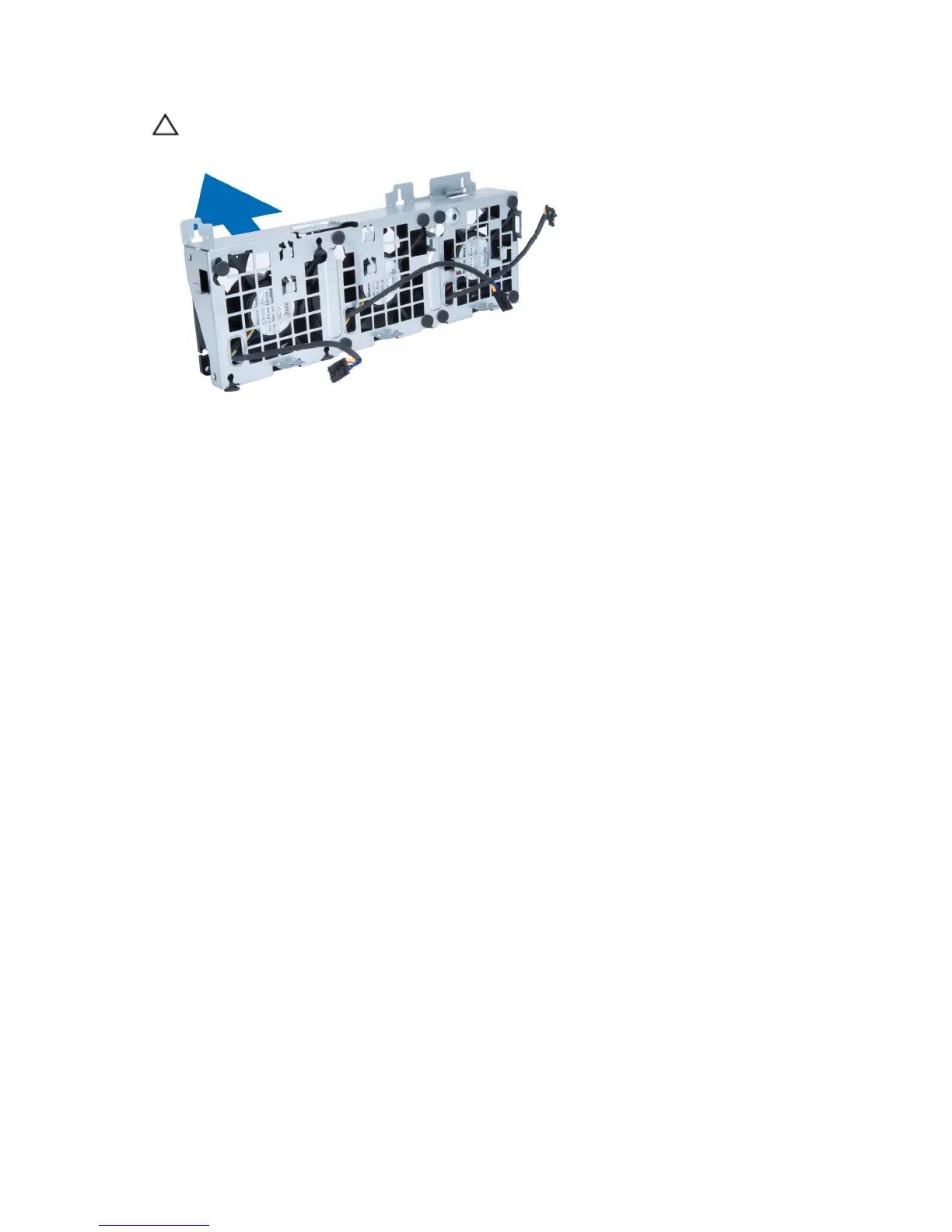

15. Remove the system fans from the system fan assembly.
Figure 15.
Installing the System Fan
1. Place the fans in the fan assembly and attach the grommets.
2. Place the fan assembly in the chassis.
3. Install the screws to secure the fan assembly to the chassis.
4. Connect the system fan cables to their connectors on the system board.
5. Route the system fan cables out of the opening in the system fan module in the direction of the system board.
6. Place the air baffle in its slot in the computer and insert the latches.
7. Install the screws that secure the drive bay.
8. Replace the metal plate and install the screw that secures metal plate to the system fan.
9. Route and connect the system board cable to its connector.
10. Install:
a) optical drive
b) hard drive
c) air tunnel (if equipped)
d) PCI card
e) intrusion switch
f) cover
11. Follow the procedures in After Working Inside Your Computer .
Removing the PSU Card
1. Follow the procedures in Before Working On Your Computer .
2. Remove the cover.
3. Slide the baffle cover from its slot towards the front.
25

Dell Precision T5600 Specifications

General

Tcase	77.4 °C
Bus type	QPI
Stepping	C2
FSB Parity	No
Processor cache	15 MB
Processor cores	6
Processor model	E5-2620
System bus rate	7.2 GT/s
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Processor codename	Sandy Bridge EP
Number of QPI links	2
Processor frequency	2 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	2.5 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
PCI Express configurations	x4, x8, x16
Thermal Design Power (TDP)	95 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	25
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800, 1066, 1333 MHz
Memory bandwidth supported by processor (max)	42.6 GB/s
Maximum internal memory supported by processor	750 GB
Internal memory	16 GB
Memory channels	Quad-channel
Memory clock speed	1600 MHz
Maximum internal memory	- GB
Memory layout (slots x size)	4 x 4 GB
HDD speed	7200 RPM
RAID levels	0, 1, 5, 10
HDD interface	SATA
Storage media	HDD
Optical drive type	DVD±RW
Card reader integrated	-
Total storage capacity	1000 GB
Cooling type	Active
Discrete graphics card model	AMD FirePro W5000
Discrete graphics card memory	2048 GB
Operating system installed	Windows 7 Professional
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
USB 2.0 ports quantity	8
VGA (D-Sub) ports quantity	0
PCI Express x16 slots	4
Chassis type	Midi Tower
Product color	Black
Product type	Workstation
Scalability	2S
Processor ARK ID	64594
Processor package size	52.5 x 45.0 mm
Supported instruction sets	AVX
Intel® Turbo Boost Technology	1.0
Physical Address Extension (PAE)	46 bit
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Power supply	635 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	471 mm
Width	172.6 mm
Height	414 mm
