6 About Your Dell Projector
Projector Connections
CAUTION: Before you begin any of the procedures in this
section, follow the Safety Instructions as described on page 7.

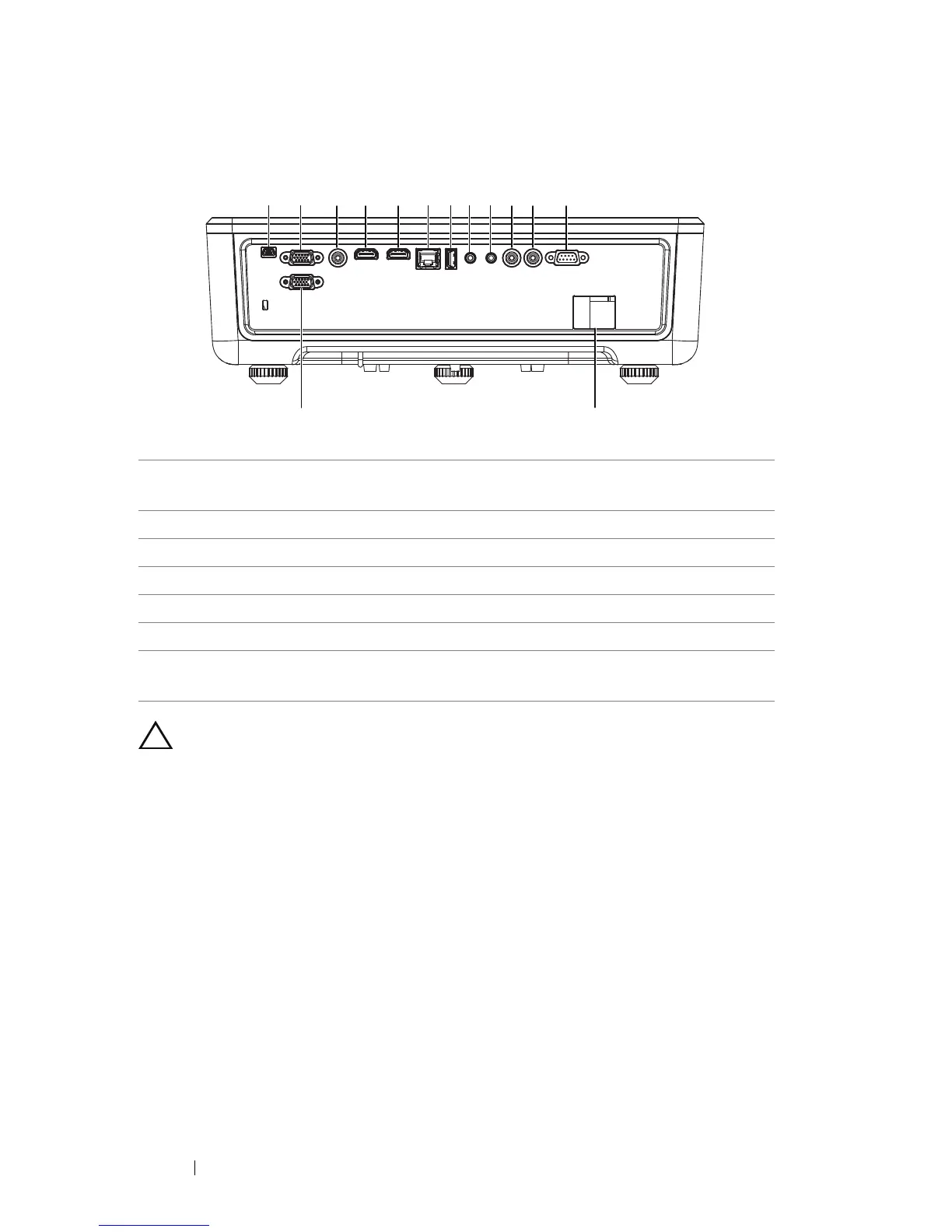

1 Mini USB (mini type B) connector
for firmware upgrade
8 Audio input connector
2 VGA input 9 Audio output connector
3 Composite Video connector 10 Audio RCA (R) connector
4 HDMI-1 (1.4) connector 11 Audio RCA (L) connector
5 HDMI-2 (1.4) connector 12 RS232 connector
6 RJ45 connector 13 Power cord connector
7 USB Type A Power (+5V/ 1.8A)
connector
14 VGA output
