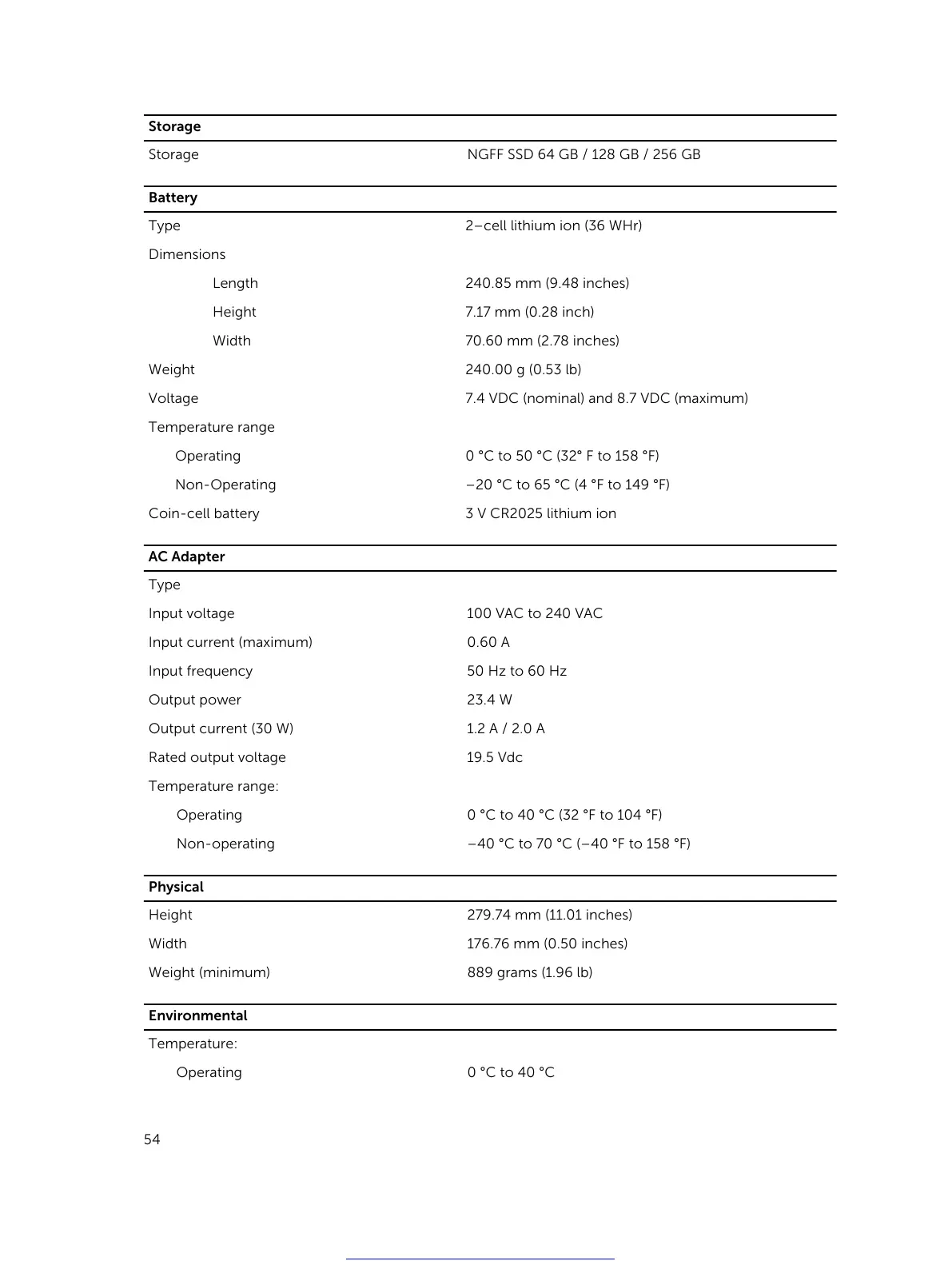

Dell T07G - Page 54

Storage
Storage NGFF SSD 64 GB / 128 GB / 256 GB
Battery
Type 2–cell lithium ion (36 WHr)
Dimensions
Length 240.85 mm (9.48 inches)
Height 7.17 mm (0.28 inch)
Width 70.60 mm (2.78 inches)
Weight 240.00 g (0.53 lb)
Voltage 7.4 VDC (nominal) and 8.7 VDC (maximum)
Temperature range
Operating 0 °C to 50 °C (32° F to 158 °F)
Non-Operating –20 °C to 65 °C (4 °F to 149 °F)
Coin-cell battery 3 V CR2025 lithium ion
AC Adapter
Type
Input voltage 100 VAC to 240 VAC
Input current (maximum) 0.60 A
Input frequency 50 Hz to 60 Hz
Output power 23.4 W
Output current (30 W) 1.2 A / 2.0 A
Rated output voltage 19.5 Vdc
Temperature range:
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating –40 °C to 70 °C (–40 °F to 158 °F)
Physical
Height 279.74 mm (11.01 inches)
Width 176.76 mm (0.50 inches)
Weight (minimum) 889 grams (1.96 lb)
Environmental
Temperature:
Operating 0 °C to 40 °C
54
