Dell U2713HM - Page 19

16 GND
17 AUX(n)
18 HPD
19
DP_PWR Return
20
+3.3 V DP_PWR

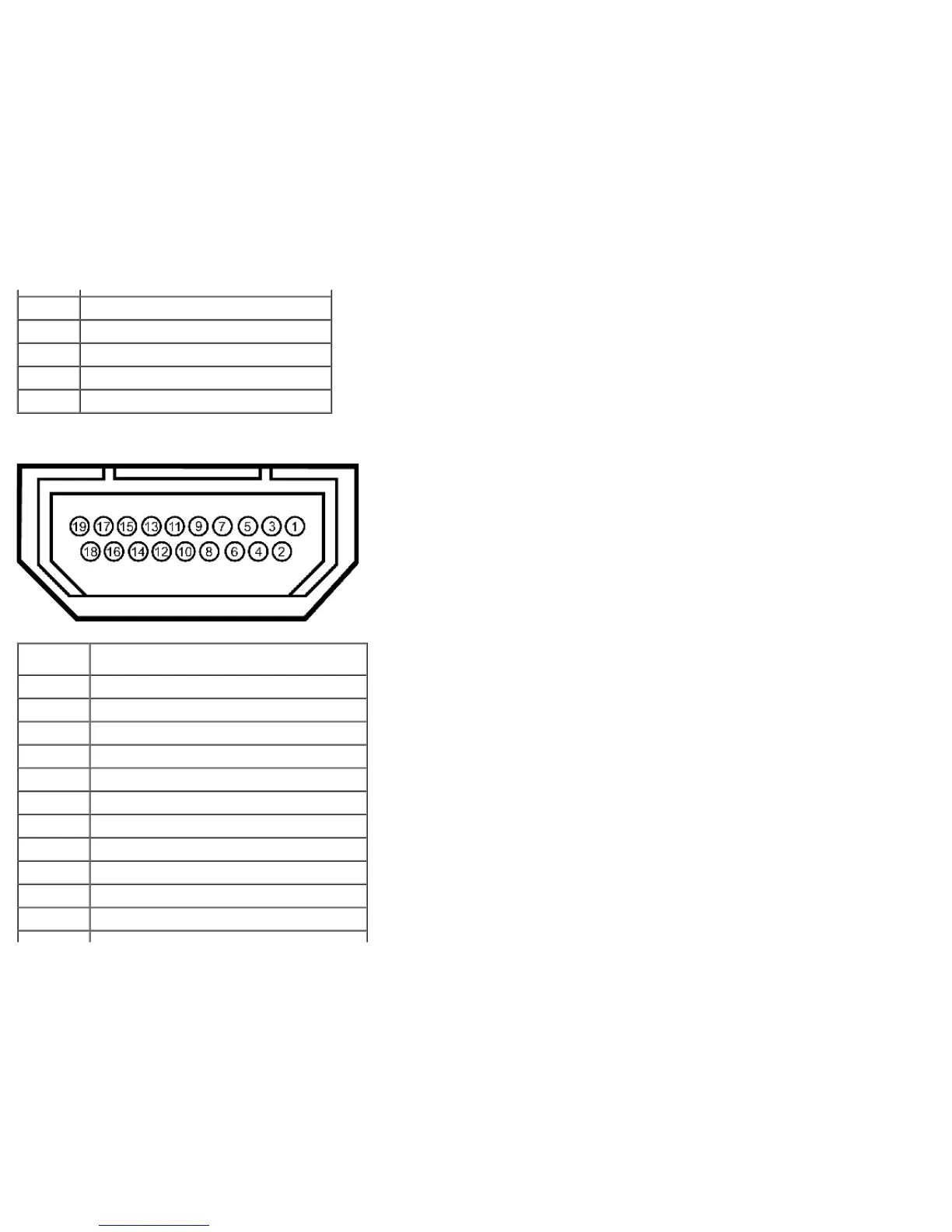

19-pin HDMI Connector
Pin
Numberr
19-pin Side of the Connected Signal Cable
(Cable not included)
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK
11 TMDS CLOCK SHIELD
