Steps
1. Disconnect the battery cable from the system board, if applicable.
2. Remove the five (M2x3) screws that secure the battery to the palm-rest and keyboard assembly.
3. Remove the battery from the palm-rest and keyboard assembly.
Installing the 4-cell battery
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

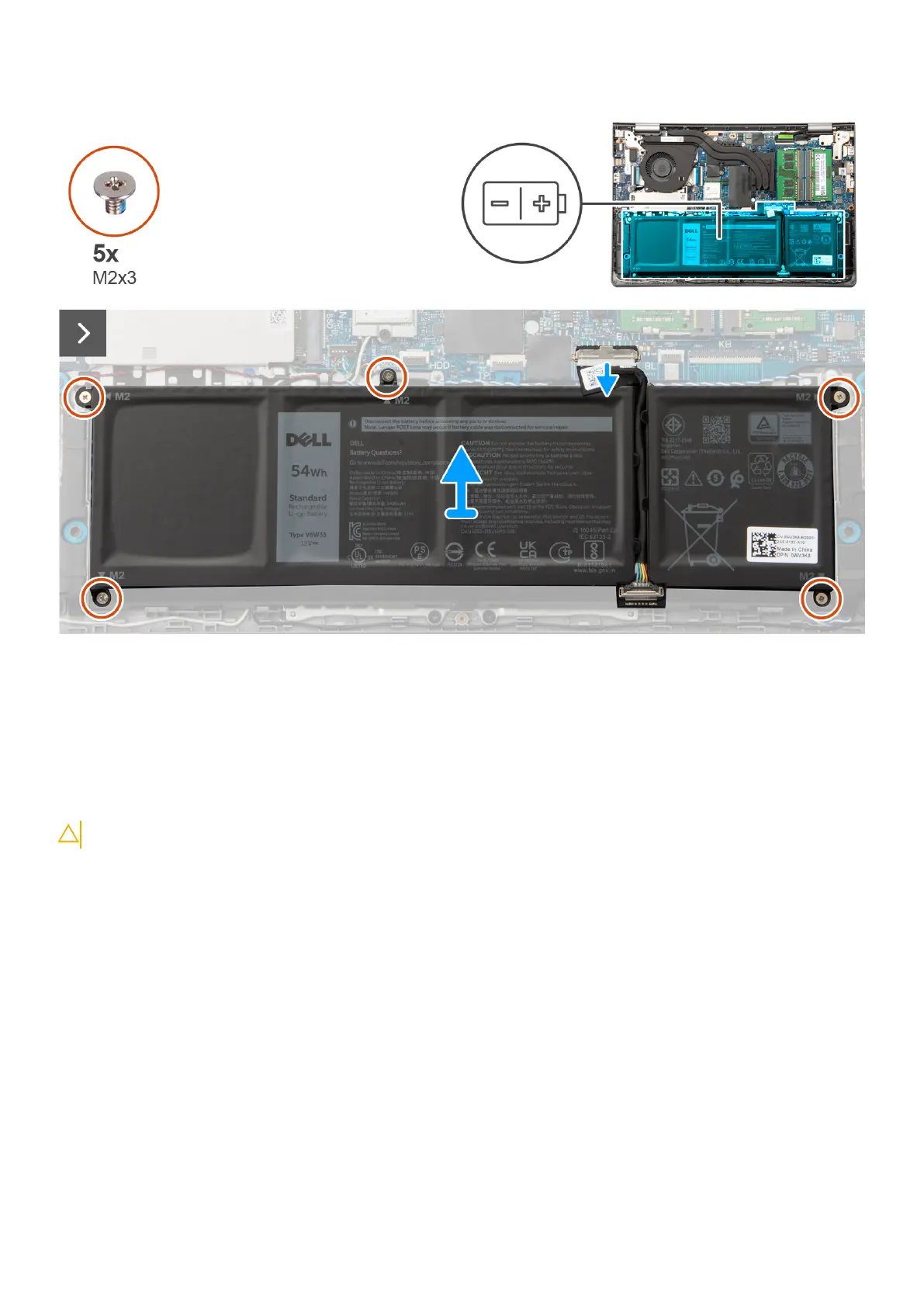

The following image indicates the location of the 4-cell battery and provides a visual representation of the installation procedure.
60
Removing and installing Field Replaceable Units (FRUs)
To Next Page
