Removing the Optical-Drive Assembly
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the battery.

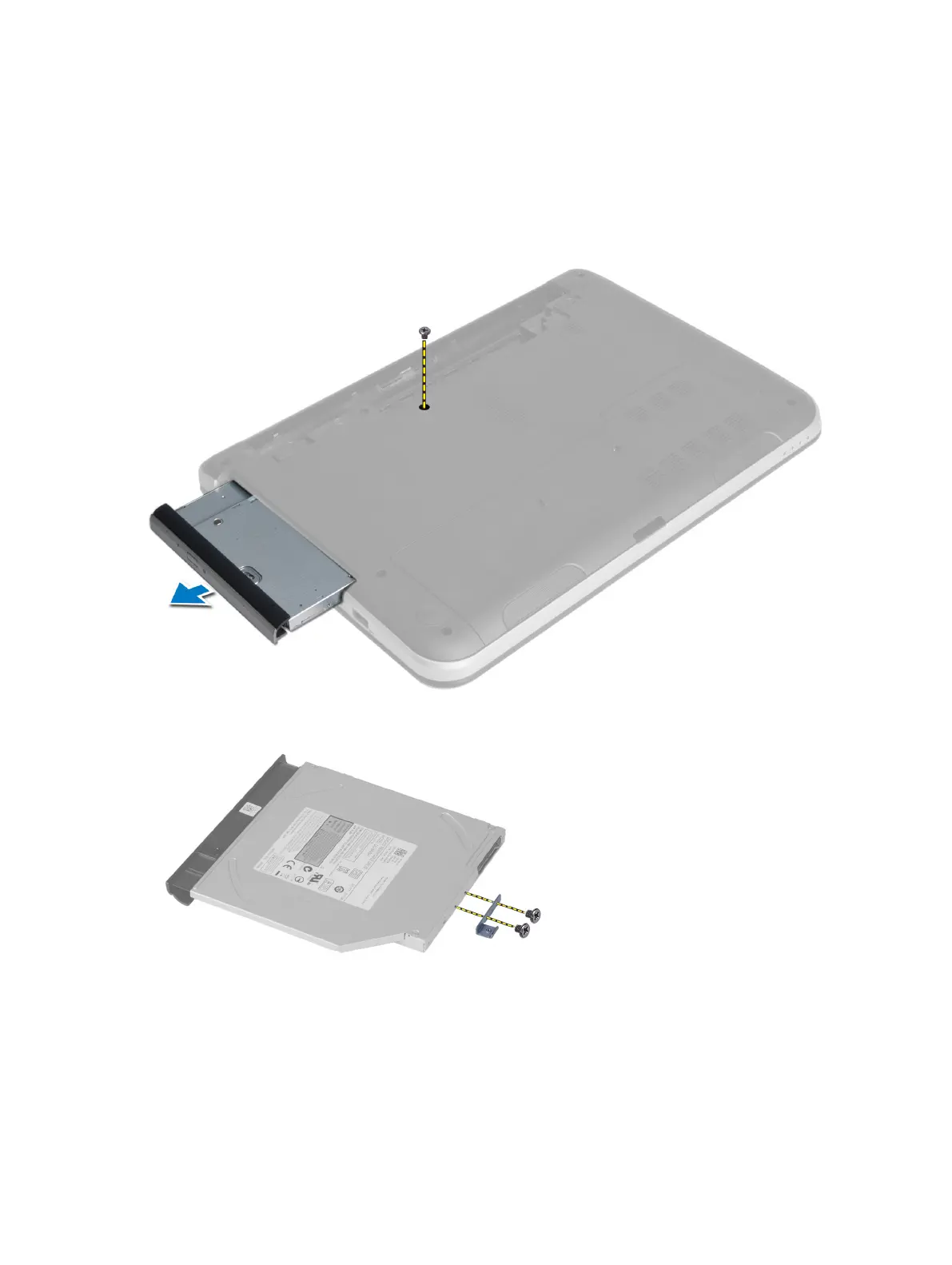

3. Remove the screw that secures the optical drive and slide it out of the drive bay.
4. Remove the screws that secure the optical-drive bracket to the optical-drive assembly.
5. Remove the optical-drive bracket from the optical-drive assembly.
6. Pry the optical-drive bezel and remove it from the optical-drive assembly.
14
