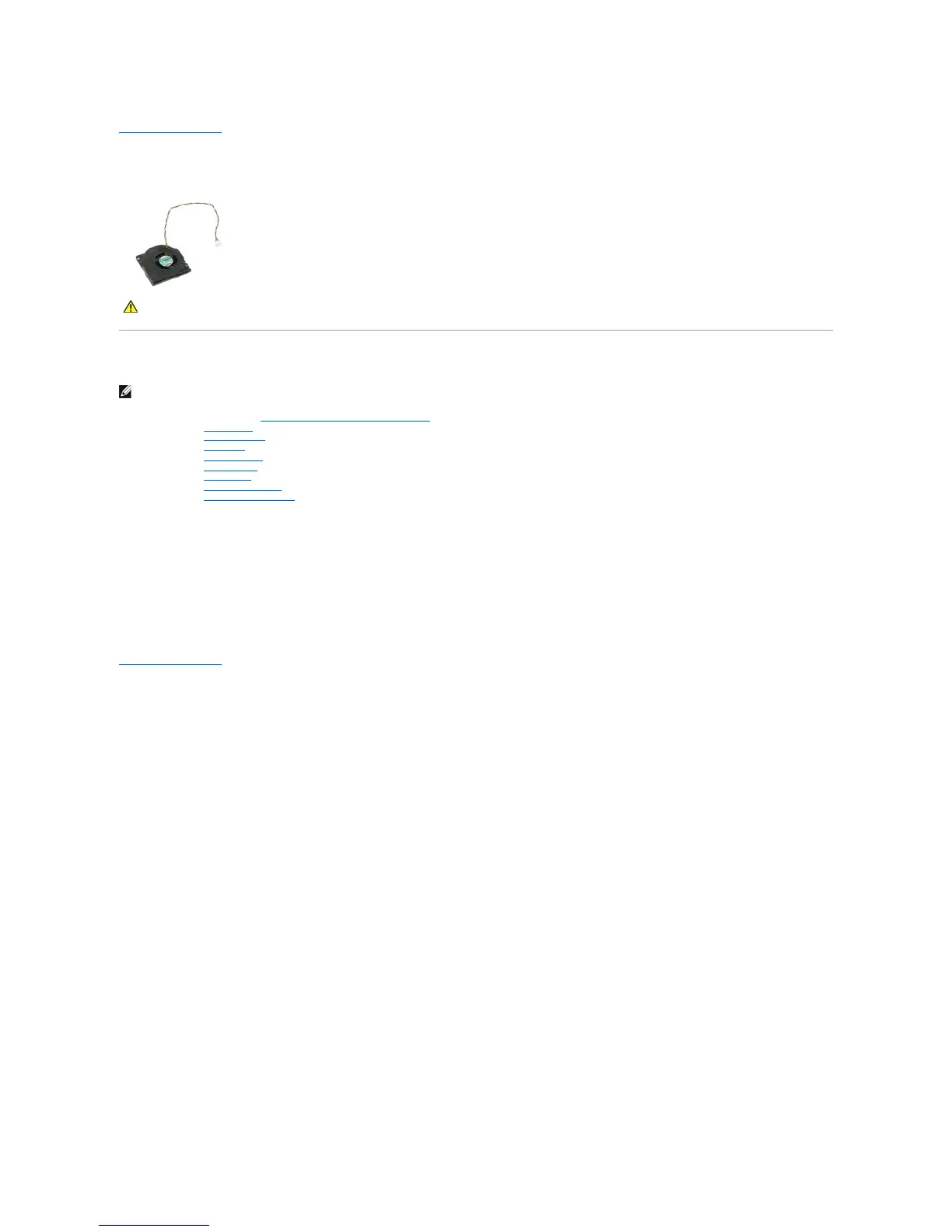

System-Board Fan
Dell™Vostro™320ServiceManual
Removing the System-Board Fan
NOTE: You may need to install Adobe®Flash®Player from Adobe.com to view the following illustrations.
1. Follow the procedures in Before Working Inside Your Computer.
2. Remove the front panel.
3. Remove the internal panel.
4. Remove the I/O cover.
5. Remove the hinged stand.
6. Remove the optical drive.
7. Remove the back cover.
8. Remove the back metal-shield.
9. Remove the system-board shield.
10. Remove the screws that secure the fan to the system-board shield.
11. Remove the system-board fan.
Replacing the System-Board Fan
To replace the system-board fan, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
