Steps
1. Remove the two screws (M2.5x5) that secure the left display hinge to the system board.
2. Open the right display hinge at an angle of 90 degrees.
3. Peel the tape that secures the display-cable connector latch to the system board.
4. Open the latch and disconnect the display cable from the system board.
5. Peel the tapes that secure the power-adapter port cable to the system board.
6. Remove the display cable from the routing guides on the palm-rest and keyboard assembly.
7. Disconnect the power-adapter port cable from the system board.
8. Lift the power-adapter port and its cable off the palm-rest and keyboard assembly.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

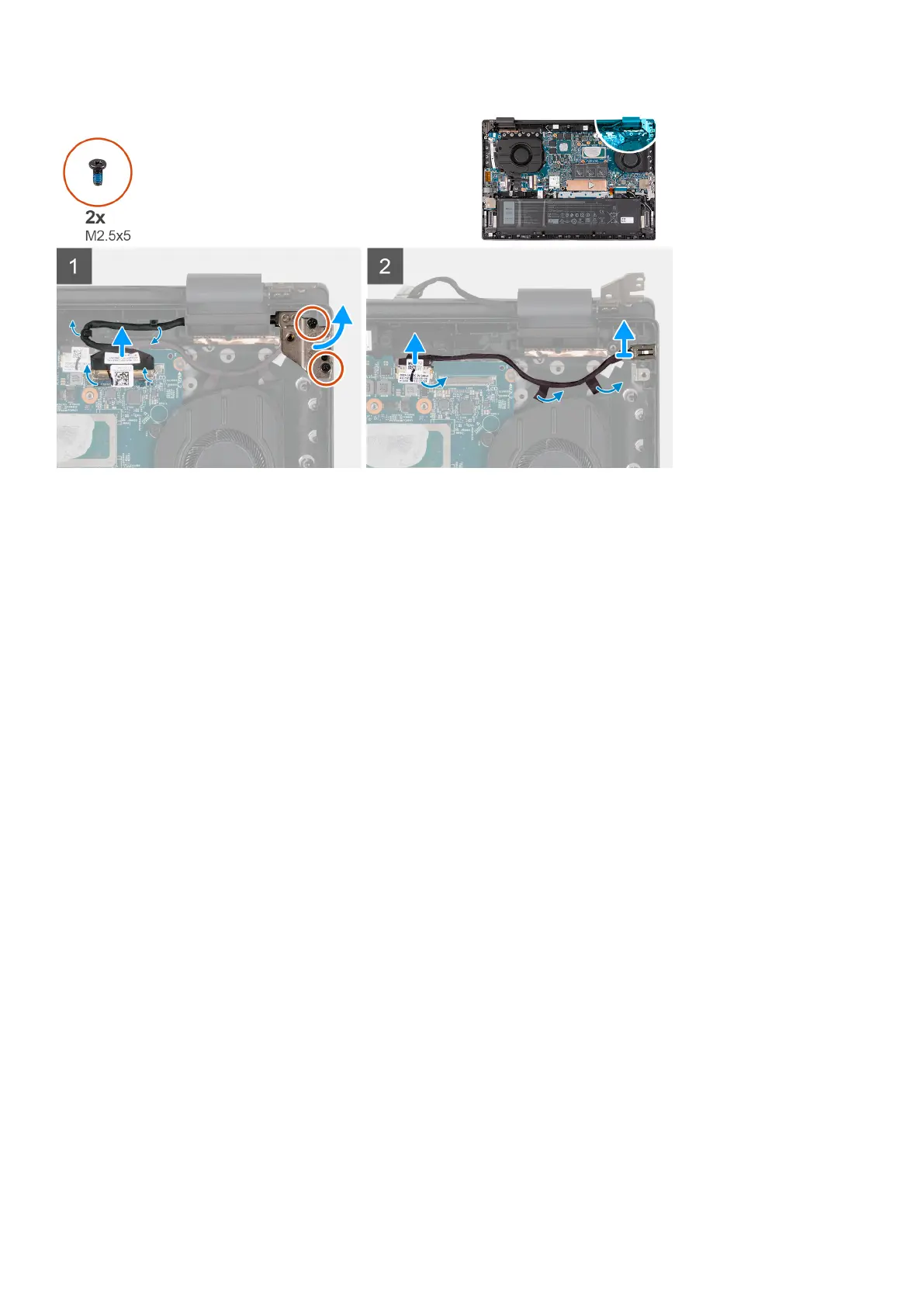

The following image(s) indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
