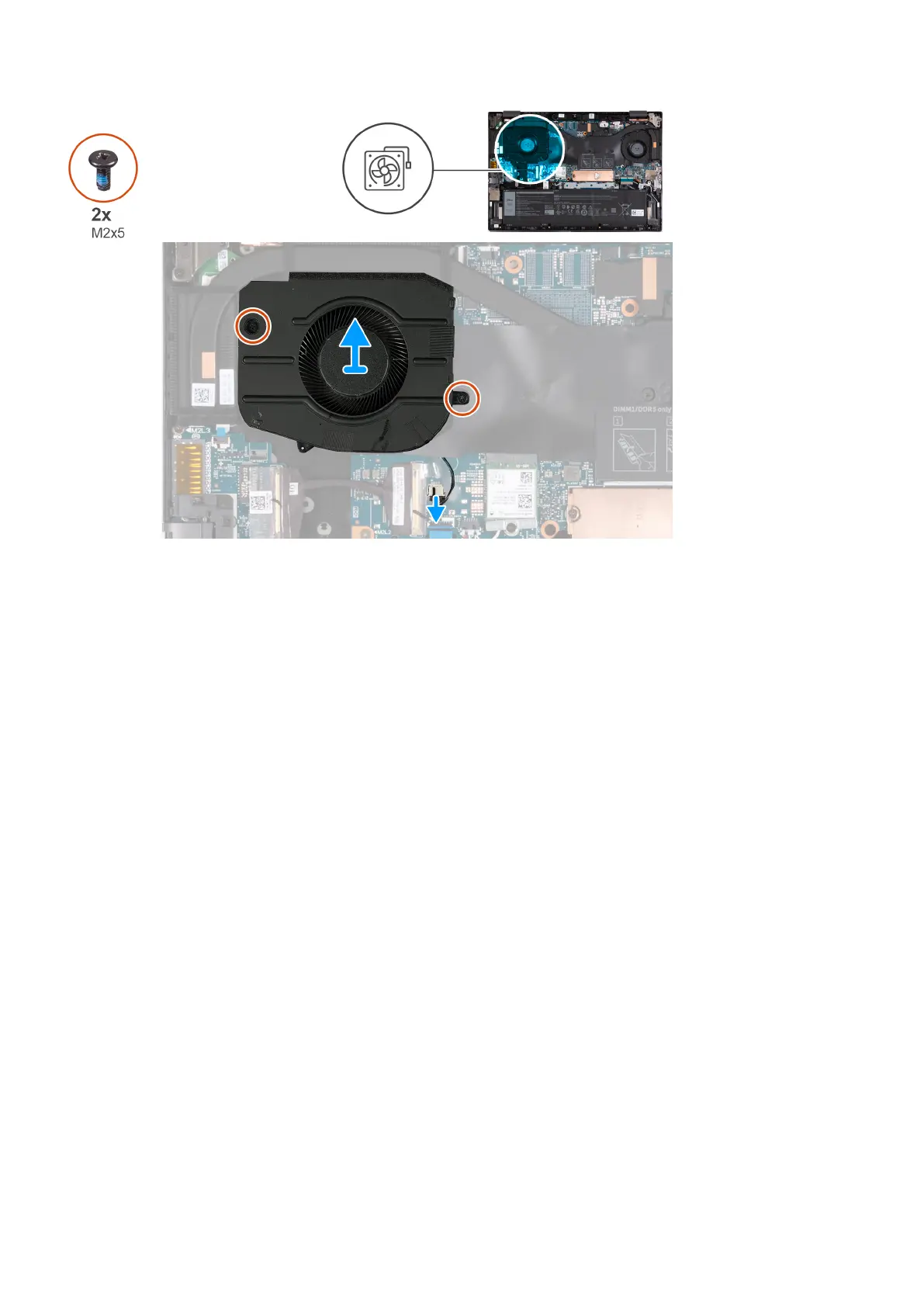

Steps
1. Disconnect the left-fan cable from the system board.
2. Remove the two screws (M2x5) that secure the left fan to the palm-rest and keyboard assembly.
3. Lift the left fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the left fan and provides a visual representation of the installation procedure.
32
Removing and installing components
