60 Using Multimedia
8
See "Enabling the Display Settings for a TV in Microsoft
®
Windows
®
XP" on page 68 to ensure that
the computer recognizes and works properly with the TV.
Composite Video and Standard Audio
1
Turn off the computer and the TV and/or audio device that you want to connect.
2
Connect the composite video adapter to the S-video TV-out connector on your computer.
3
Plug one end of the composite video cable into the composite video-output connector on the
composite video adapter.

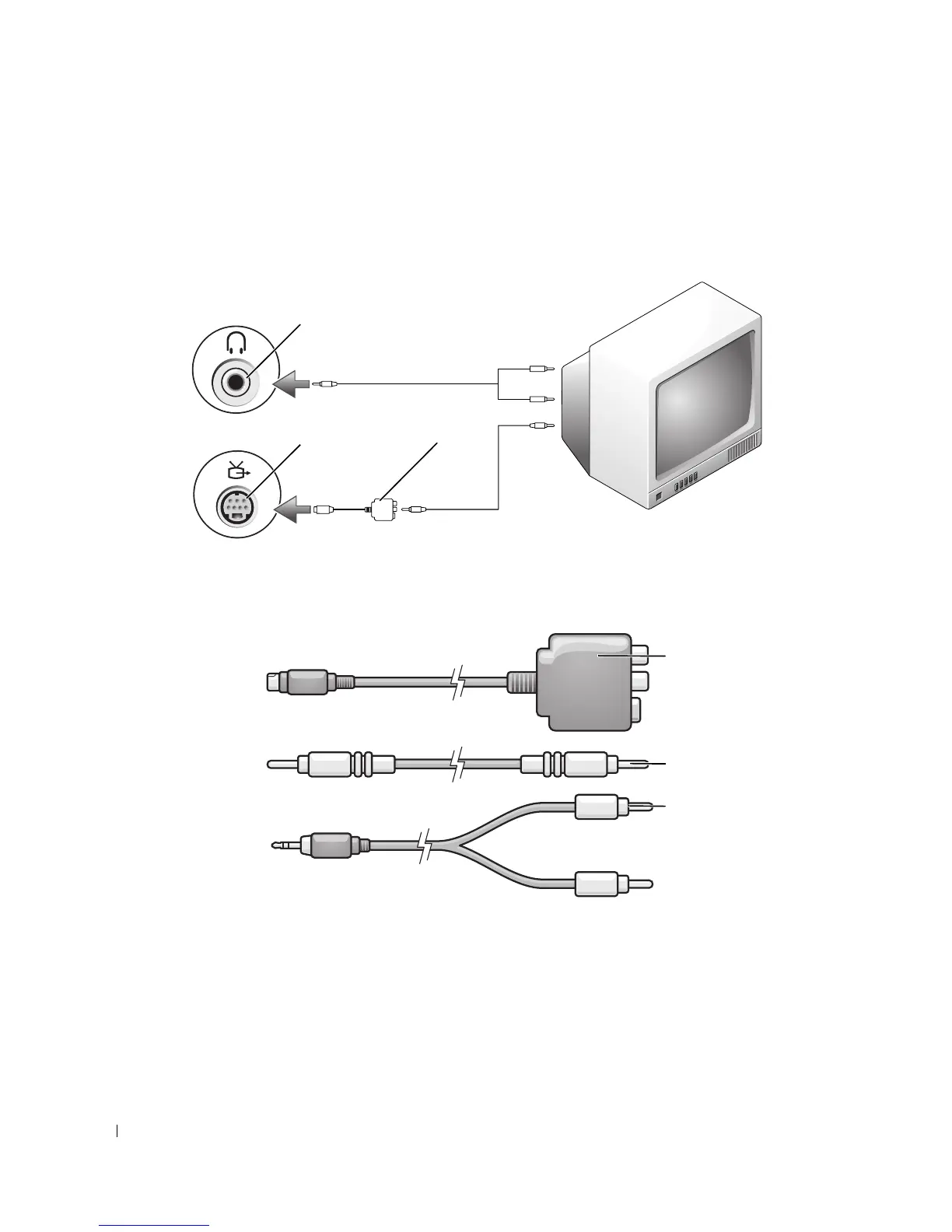

1 audio input connector 2 S-video TV-out connector 3 composite video adapter
1 composite video adapter 2 composite video cable 3 standard audio cable
2
1
3
1
2
3
