Connecting the mains cable
– Remove the two screws securing the cover plate A behind the cooker.
– Remove the screw C from the cable clamp.
– Insert the mains cable (type HO5 RR-F) of minimum 6 mm
2
section into the cable
protector P.
– Connect the live, neutral and earth cables to the mains terminal connection block B.
EARTH
N NEUTRAL
L LIVE
– Refit the cable clamp C so that it clamps the outer sleeving of the cable.
– Refit the cover plate A.
IMPORTANT: This appliance must be earthed.
L
N
Green &Yellow
(Earth)
Red
or
Brown
(Live)
Black
or
Blue
(Neutral)

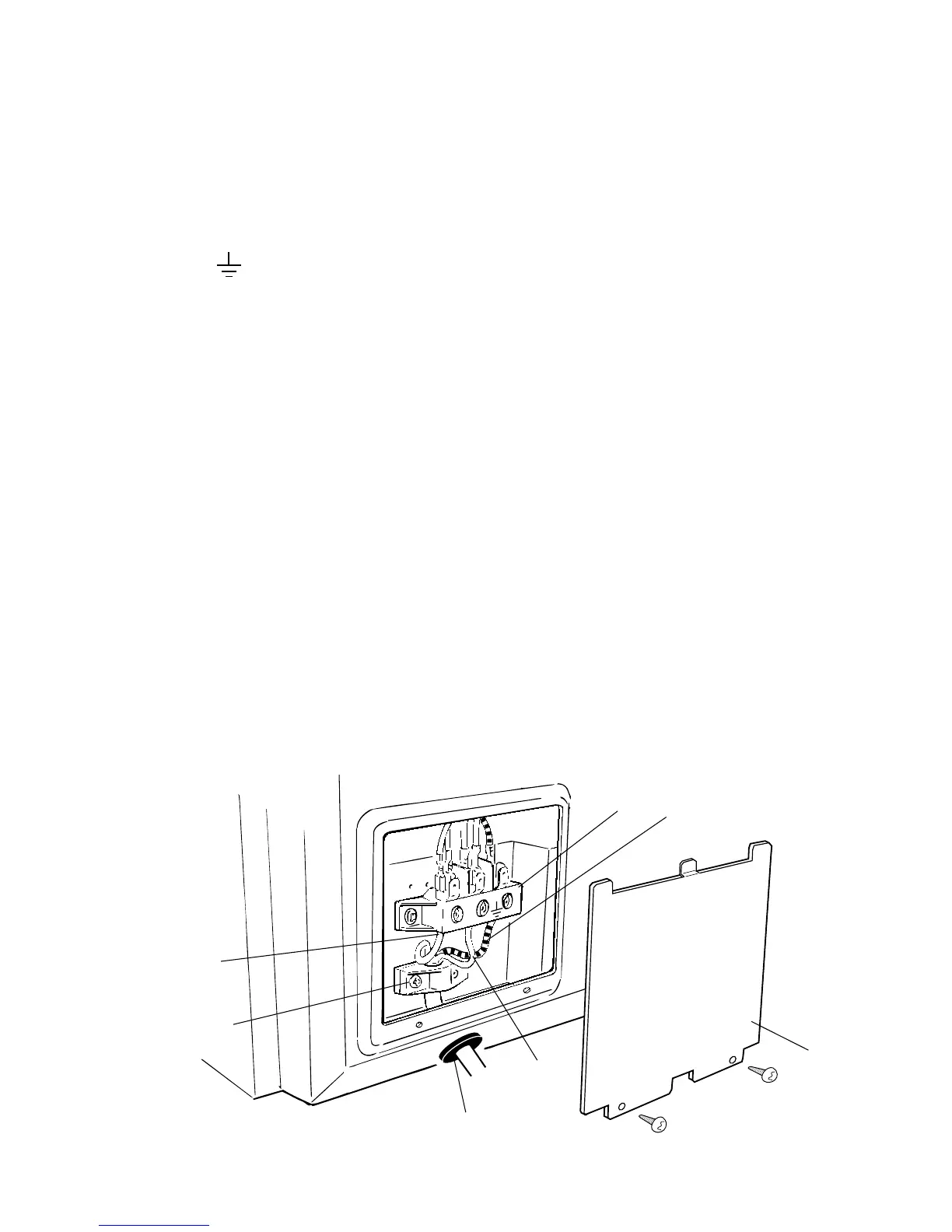

Fig. 2
P
C
B
A
