PERMANENT INSTALLATION

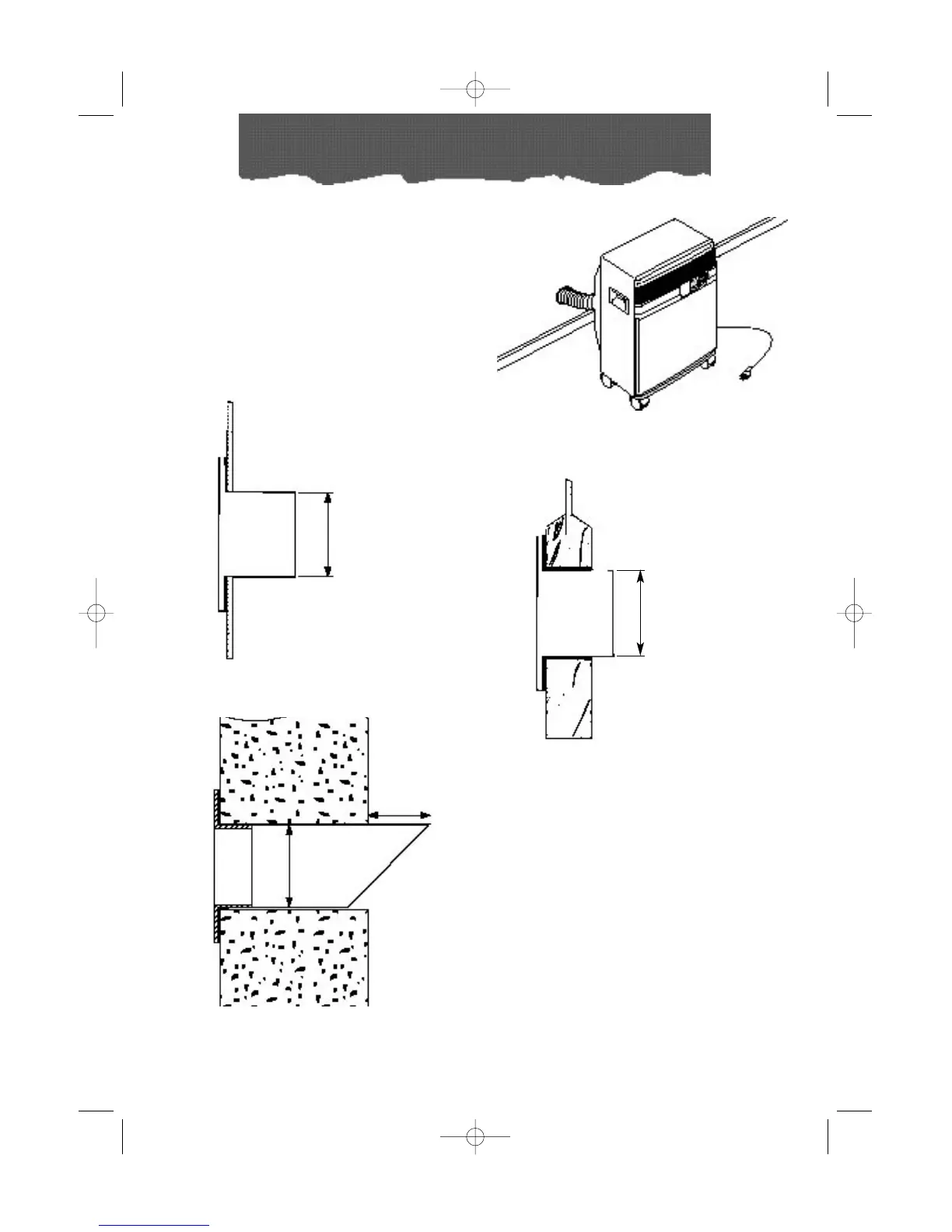

The Pinguino accessories include two sets of
flanges and stoppers, to be mountedl in different
locations (two different rooms). Once installed,
these vents (flanges) are the only items needed
for using Pinguino.
Permanent installation outlet holes must be in
an exterior wall and opening diameter should not
exceed 3”
1
/
2
.
INSIDE
OUTSIDE
3”
1
/
2
A1
in a window pane
INSIDE
OUTSIDE
3”
1
/
2
A2
through the wooden base-sec-
tion of a door or window
INSIDE
OUTSIDE
A3
through the wall
3”
1
/
2
1”
fig. 1
fig. 2
fig. 3
fig. 4
In case of fixed installation, air discharged from
rear hose has been extracted from the room
where the appliance is installed.
Check that the room (especially if small) is not
“air-tight”; a drop in pressure would cause irreg-
ular functioning, which could consequently acti-
vate reset switch. Air entering through door and
window cracks is normally sufficient. If deemed,
necessary leave a door ajar (approx. 1 cm is
enough).
