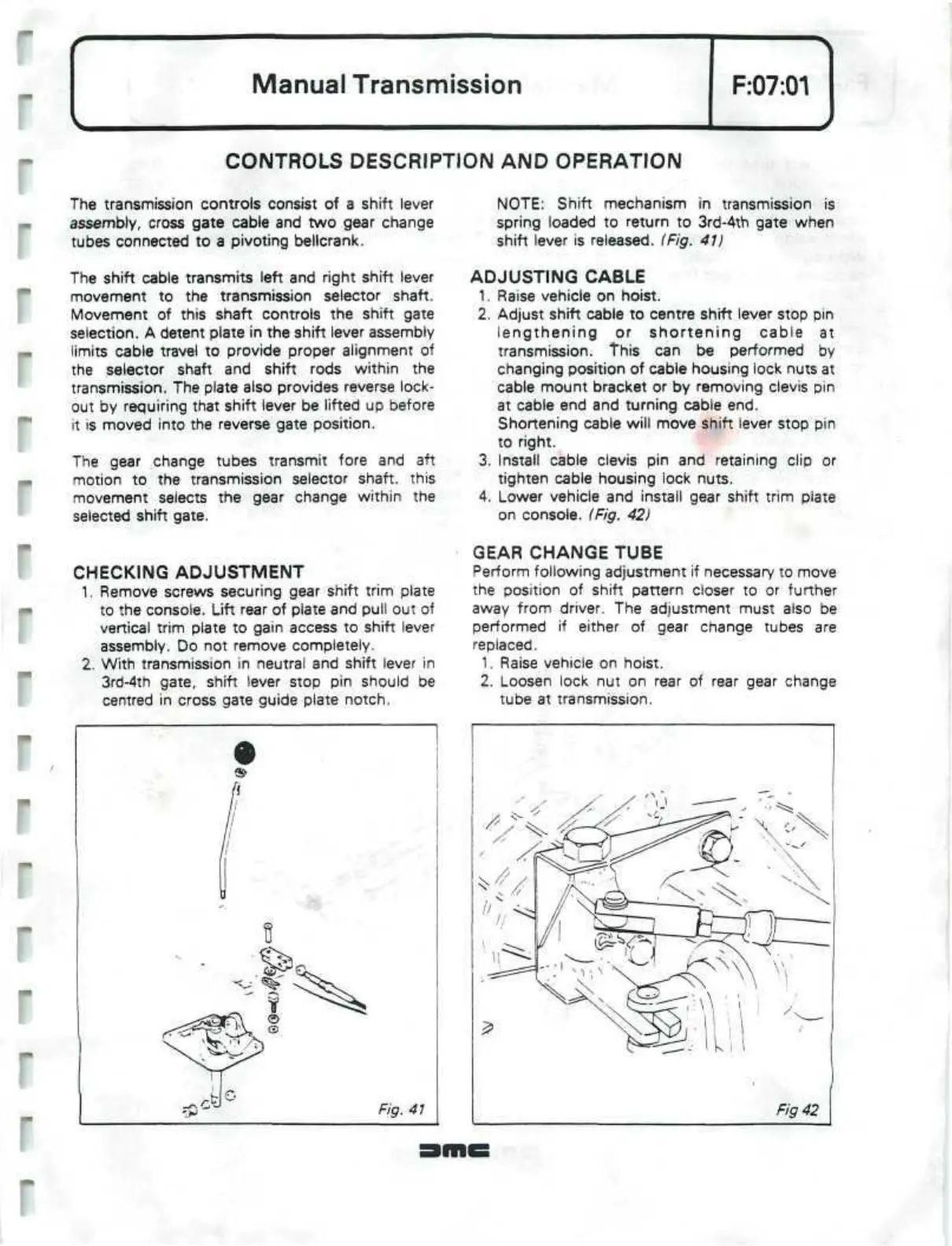

CONTROLS DESCRIPTION AND OPERATION
The transmission controls consist of a shift lever
assembly, cross gate cable and two gear change
tubes connected to a pivoting bellcrank.
The shift cable transmits left and right shift lever
movement to the transmission selector shaft.
Movement of this shaft controls the shift gate
selection.
A detent plate in the shift lever assembly
limits cable travel to provide proper alignment of
the selector shaft and shift rods within the
transmission.
The plate also provides reverse lock-
out by requiring that shift lever be lifted up before
it is moved into the reverse gate position.
The gear change tubes transmit fore and aft
motion to the transmission selector
shaft,
this
movement selects the gear change within the
selected shift gate.
CHECKING ADJUSTMENT
1.
Remove screws securing gear shift trim plate
to the console. Lift rear of plate and pull out of
vertical trim plate to gain access to shift lever
assembly. Do not remove completely.
2.
With transmission in neutral and shift lever in
3rd-4th gate, shift lever stop pin should be
centred in cross gate guide plate notch.
NOTE:
Shift mechanism in transmission is
spring loaded to return to
3rd-4th
gate when
shift lever is released.
(Fig.
41)
ADJUSTING CABLE
1.
Raise vehicle on hoist.
2.
Adjust shift cable to centre
shrft
lever stop pin
lengthening or shortening cable at
transmission. This can be performed by
changing position of cable housing lock nuts at
cable mount bracket or by removing clevis pin
at cable end and turning cable end.
Shortening cable will move shift lever stop pin
to right.
3. Install cable clevis pin and retaining clip or
tighten cable housing lock nuts.
4.
Lower vehicle and install gear shift trim plate
on console. (Fig. 42)
GEAR CHANGE TUBE
Perform following adjustment if necessary to move
the position of shift pattern closer to or further
away from driver. The adjustment must also be
performed if either of gear change tubes are
replaced.
1.
Raise vehicle on hoist.
2.
Loosen lock nut on rear of rear gear change
tube at transmission.
