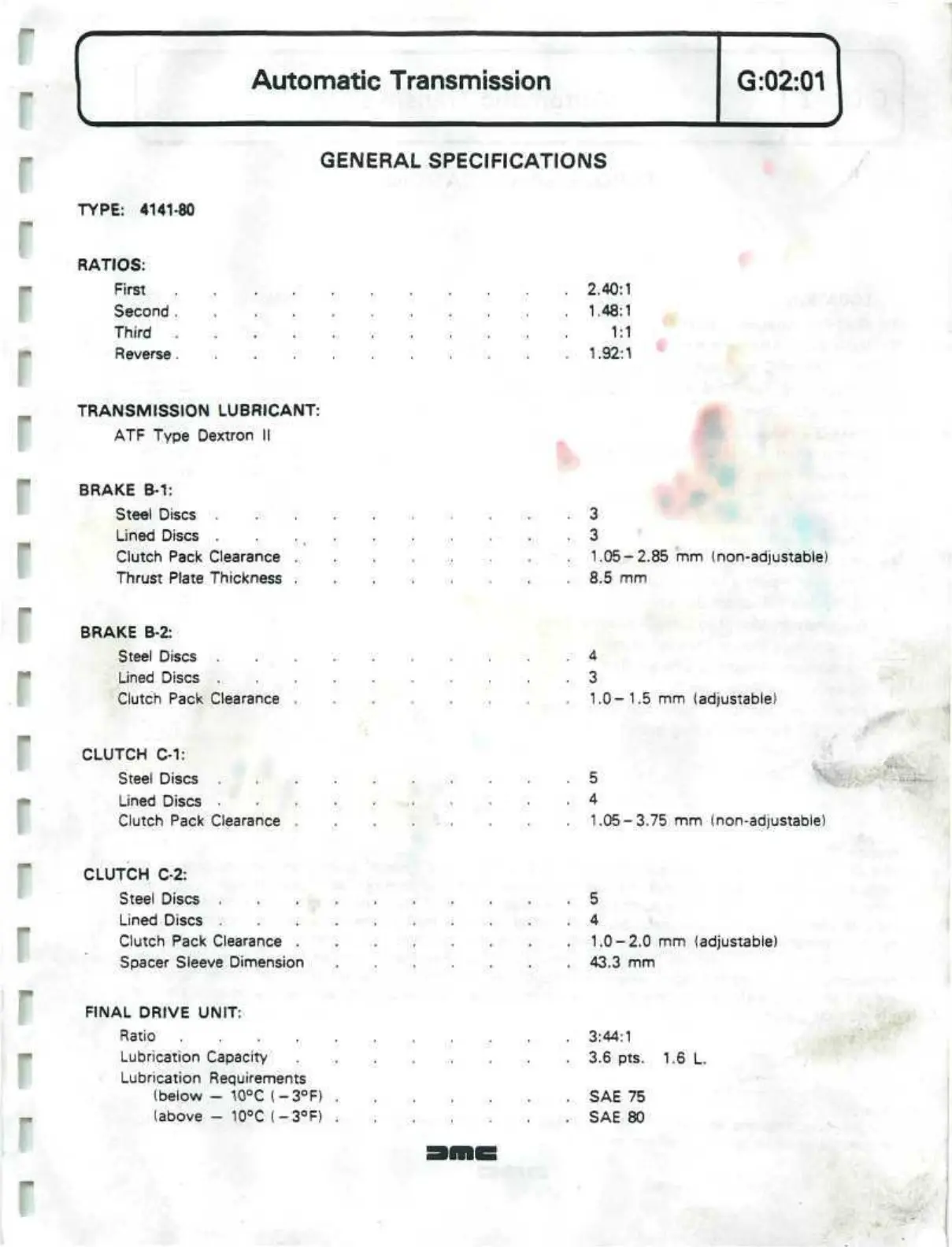

Automatic Transmission
G:02:01
GENERAL SPECIFICATIONS
TYPE:
4141-80
RATIOS:
First 2.40:1
Second
1.48:1
Third 1:1
Reverse
1.92:1
TRANSMISSION LUBRICANT:
ATF Type Dextron II
"•
BRAKE
B-1:
Steel Discs 3
Lined Discs .3
Clutch Pack Clearance 1.05-2.85 mm (non-adjustable)
Thrust Plate Thickness 8.5 mm
BRAKE B-2:
Steel Discs 4
Lined Discs 3
Clutch Pack Clearance
1.0-1.5
mm (adjustable)
CLUTCH
C-1:
Steel Discs 5
Lined Discs .......... 4
Clutch Pack Clearance 1.05-3.75 mm (non-adjustable)
CLUTCH C-2:
Steel Discs 5
Lined Discs 4
Clutch Pack Clearance
1.0-2.0
mm (adjustable)
Spacer Sleeve Dimension 43.3 mm
FINAL DRIVE UNIT:
Ratio 3:44:1
Lubrication Capacity 3.6 pts. 1.6 L.
Lubrication Requirements
(below -
10°C
(-3°F)
SAE 75
(above - 10°C (-3°F) SAE 80
