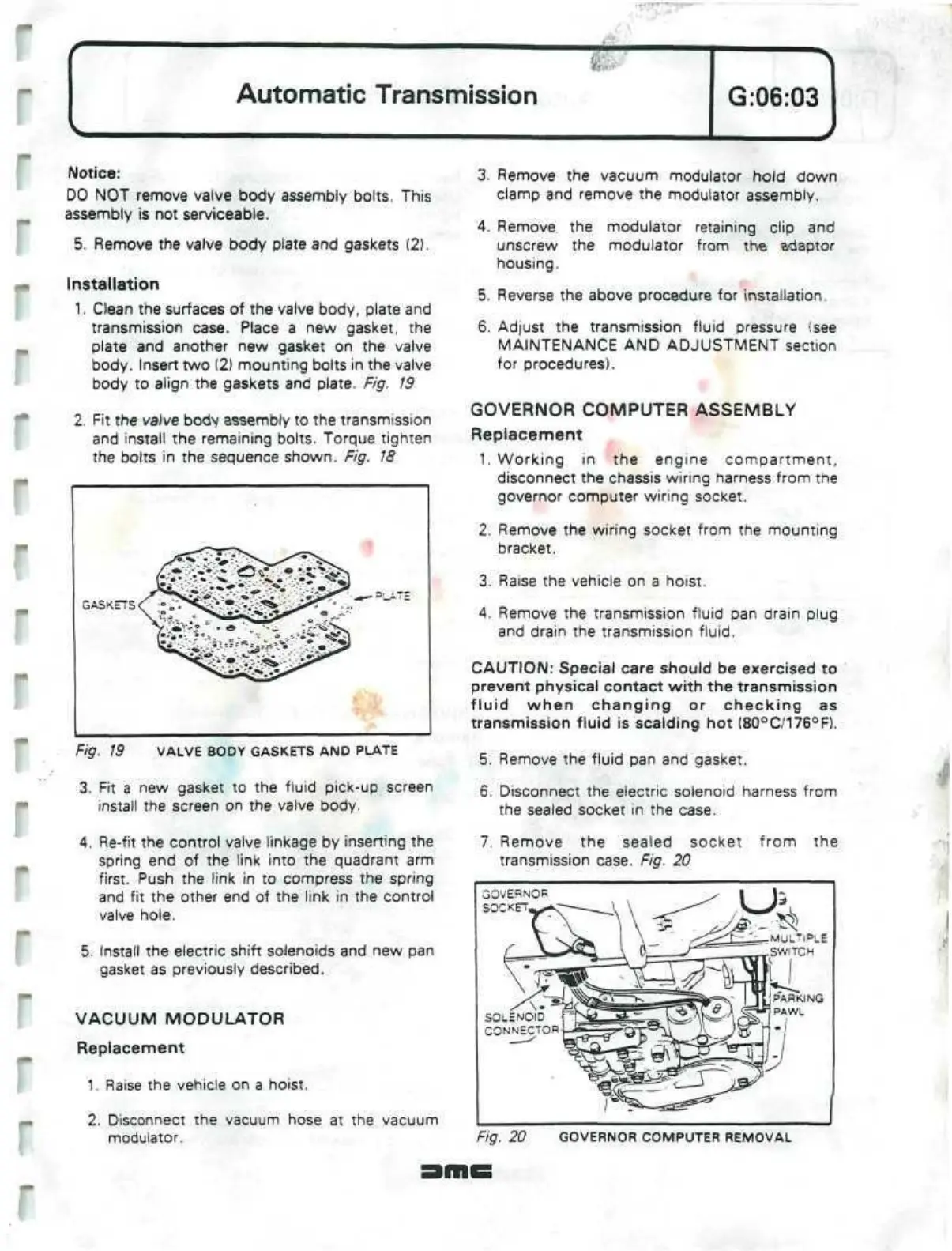

Notice:
DO NOT remove valve body assembly bolts. This
assembly is not serviceable.
5. Remove the valve body plate and gaskets (2).
Installation
1. Clean the surfaces of the valve body, plate and
transmission case. Place a new gasket, the
plate and another new gasket on the valve
body. Insert two (2) mounting bolts in the valve
body to align the gaskets and plate. Fig. 19
2. Fit the vaive body assembly to the transmission
and install the remaining bolts. Torque tighten
the bolts in the sequence shown. Fig. 18
GASKETS <(
x^^^v^N-^-^^^
•• ^-^^^i/^' .-
vfc" •^
w
»Tii
r
-y»' fr^^ *-''
y
:
iV>-? - » '-- •;,—'vi-Sv.
^S&K •• I'..r:-^i.-. v>>*^
^Siiii^X^
|
Fig. 19 VALVE BODY GASKETS AND PLATE
3. Fit a new gasket to the fluid pick-up screen
install the screen on the valve body.
4. Re-fit the control valve linkage by inserting the
spring end of the link into the quadrant arm
first. Push the link in to compress the spring
and fit the other end of the link in the control
valve hole.
5. Install the electric shift solenoids and new pan
gasket as previously described.
VACUUM MODULATOR
Replacement
1. Raise the vehicle on a hoist.
2. Disconnect the vacuum hose at the vacuum
modulator.
3. Remove the vacuum modulator hold down
clamp and remove the modulator assembly.
4. Remove the modulator retaining clip and
unscrew the modulator from the. Raptor
housing.
5. Reverse the above procedure for installation.
6. Adjust the transmission fluid pressure (see
MAINTENANCE AND ADJUSTMENT section
for procedures).
GOVERNOR COMPUTER ASSEMBLY
Replacement
1. Working in the engine compartment,
disconnect the chassis wiring harness from the
governor computer wiring socket.
2. Remove the wiring socket from the mounting
bracket.
3. Raise the vehicle on a hoist.
4. Remove the transmission fluid pan drain plug
and drain the transmission fluid.
CAUTION: Special care should be exercised to
prevent physical contact with the transmission
fluid when changing or checking as
transmission fluid is scalding hot (80°C/176°F).
5. Remove the fluid pan and gasket.
6. Disconnect the electric solenoid harness from
the sealed socket in the case.
7. Remove the sealed socket from the
transmission case. Fig. 20
GOVERNOR
SOCKET,
Fig. 20 GOVERNOR COMPUTER REMOVAL
